Yamaha Small Retail Store Sound System with 4 VS4 Wall Mount Speakers MA2030a Mixer Amplifier and Bluetooth CD Media Player

Inside the Design

This Yamaha small retail store sound system is a streamlined, high-quality background music and paging solution designed for retail spaces up to approximately 2,000 square feet. By combining four Yamaha VS4 surface-mount 70V speakers with the Yamaha MA2030a mixer amplifier, the system delivers balanced, full-range audio that enhances the customer experience without overpowering conversation. The Tascam CD-400U media player adds flexible source options including CD, Bluetooth, USB, SD card, and built-in AM/FM tuner functionality. A TOA desktop paging microphone and Yamaha digital wall controller provide convenient day-to-day operation for retail staff, ensuring smooth announcements and simple volume adjustments.

Sound System Features:

• Well-balanced, high-performance background music system covering approximately 2,000 sq ft
• Four Yamaha VS4 4" surface-mount 70V speakers provide clear, even coverage
• Compact 2-channel mixer amplifier with onboard DSP for optimized sound performance
• Multi-format media player with CD, Bluetooth, USB, SD card, and AM/FM tuner
• Desktop push-to-talk paging microphone for clear store-wide announcements
• Wall-mounted digital control panel for convenient remote volume and source control
• Simple, intuitive operation allowing staff to focus on customer service

About the System Components

Yamaha VS4 4" Surface Mount 70V Speakers

The Yamaha VS4 surface-mount speakers feature a 4" woofer and 1" balanced dome tweeter to deliver clear highs and smooth low-frequency response in compact retail environments. Designed for both indoor and covered outdoor use, the VS4 includes internally mounted transformers for 70V or 100V distributed systems. With flexible mounting options and a clean, professional appearance, these speakers provide consistent coverage while complementing store aesthetics.

Yamaha MA2030a 2-Channel Compact Mixer Amplifier with DSP

The Yamaha MA2030a compact mixer amplifier offers 2-channel mixing, source EQ (Bass/Treble), and built-in DSP technologies derived from Yamaha’s professional audio lineup. Its intuitive front-panel controls make daily operation simple, while advanced processing ensures clear, balanced sound for both background music and paging. Compact and efficient, the MA2030a is ideal for retail installations requiring dependable performance and straightforward setup.

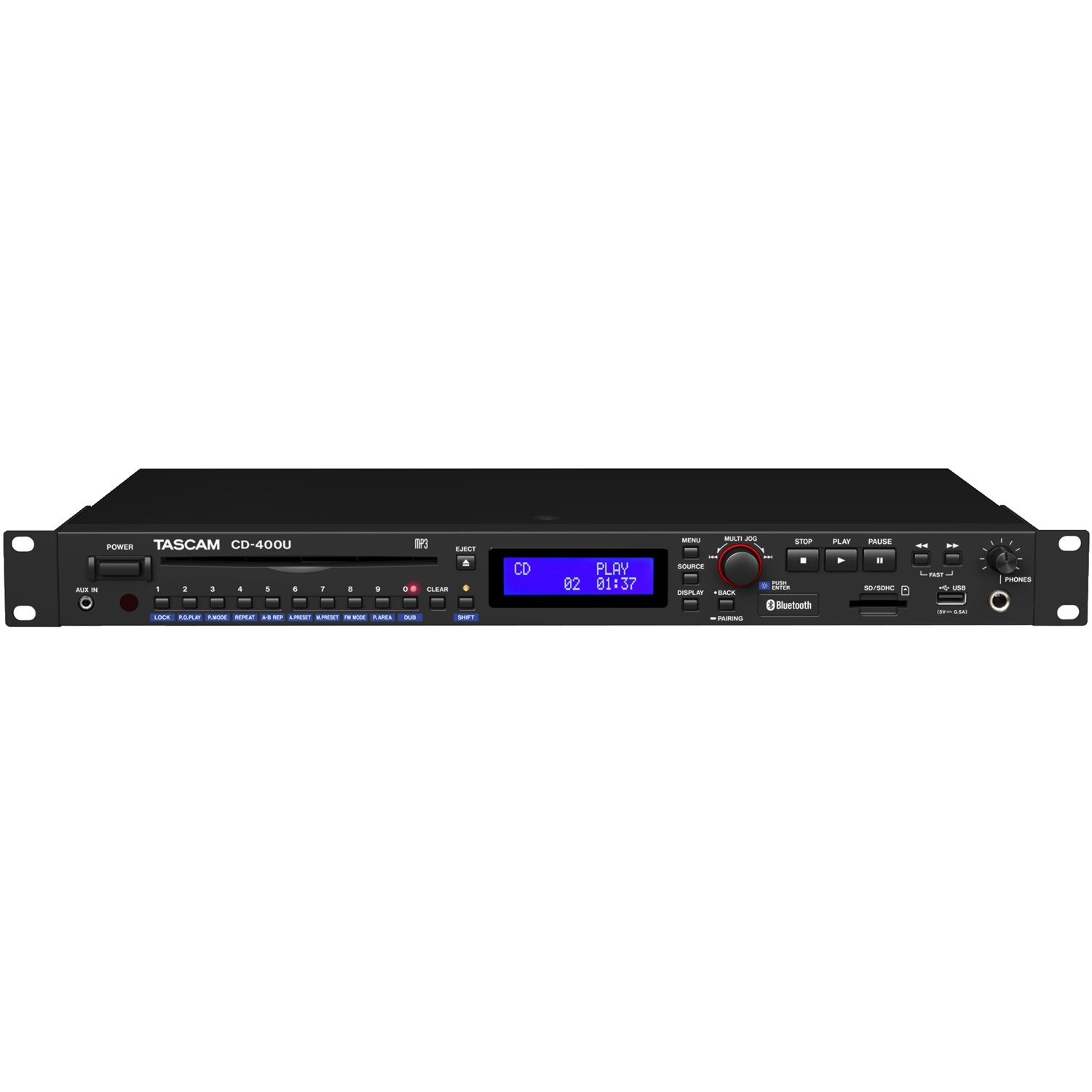

Tascam CD-400U CD Media Player with Bluetooth and AM/FM Tuner

The Tascam CD-400U is a versatile media player designed for commercial environments where multiple playback options are essential. It supports CD playback, Bluetooth streaming, USB and SD media, and features a built-in AM/FM tuner for expanded music source flexibility. Its professional-grade design ensures reliable operation, making it an excellent centerpiece for retail background music systems.

TOA PM-660U Desktop PTT Paging Microphone

The TOA PM-660U is a compact desktop push-to-talk microphone designed for paging and public address applications. Featuring a cardioid pickup pattern for improved speech clarity and reduced background noise, it delivers articulate announcements throughout the store. Its small footprint and elegant design make it ideal for placement at checkout counters or customer service desks.

Yamaha DCP1V4S Digital Control Panel

The Yamaha DCP1V4S digital control panel connects directly to the MA2030a mixer amplifier, providing convenient remote control of volume, microphone on/off switching, and built-in chime triggering for announcements. Installed at a sales counter or office location, it allows staff to easily manage system functions without accessing the main equipment rack, ensuring efficient daily operation.

System & Component Videos

Yamaha VS4 4" Surface Mount 70V Speakers

• Compact surface-mount speakers with 4" woofer and 1" balanced dome tweeter for clear, full-range sound
• Internally mounted transformers for 70V or 100V distributed audio systems
• Water-resistant construction meeting IEC60529 IPX3 requirements for covered outdoor use
• Flexible horizontal or vertical installation with included color-matched steel U-brackets
• Paintable enclosure and grille to blend with any retail décor
• Built-in overload protection circuit safeguards speaker components

Yamaha MA2030a 2-Channel Compact Mixer Amplifier with DSP

• Lo-Z/Hi-Z switchable compact Class-D mixer amplifier
• 30W x 2-channel output (3Ω/4Ω selectable) with 8Ω capability
• High-pass and low-pass filters for easy subwoofer integration
• Three stereo inputs and two microphone inputs for flexible source connection
• Advanced onboard DSP optimized for music playback and speech clarity
• Stereo source EQ with enhancer function
• Built-in speaker EQ presets for Yamaha commercial speaker systems
• Expandable system capability by adding a PA2030 power amplifier
• Remote volume control and mic on/off switching via DCP1V4S control panel
• Space-saving 1U half-rack design

Tascam CD-400U CD Media Player with Bluetooth and AM/FM Tuner

• Professional CD player with slot-loading transport
• Built-in Bluetooth receiver for wireless music streaming
• Integrated AM/FM tuner for expanded playback options
• USB and SD card playback for digital media files
• Balanced XLR and unbalanced RCA outputs for flexible system integration
• Front-panel 3.5 mm AUX input for portable devices
• Reliable, rack-mountable design for commercial installations

TOA PM-660U Desktop PTT Paging Microphone

• Cardioid dynamic microphone element for clear speech reproduction
• Push-to-talk bar with locking lever for paging control
• Elegant, compact desktop design with integral stand
• Extra switch contact for mute or relay control
• Space-saving footprint ideal for retail counters
• Five-year manufacturer warranty

Yamaha DCP1V4S Digital Control Panel

• Wall-mounted control panel with one volume knob and four programmable switches
• Connects directly to one Yamaha MA2030a mixer amplifier
• Simple Cat5 connection for installation
• Provides remote volume control and microphone on/off switching
• Can trigger built-in chime and preset recall functions

• (4) Yamaha VS4 4" Surface Mount 70V Speakers
• (1) Yamaha MA2030a 2-Channel Compact Mixer Amplifier with DSP
• (1) Tascam CD-400U CD Media Player with Bluetooth and AM/FM Tuner
• (1) TOA PM-660U Desktop PTT Paging Microphone
• (1) Yamaha DCP1V4S Digital Control Panel
• (1) CBI CB2-2RR-6 Dual RCA to Dual RCA Cable - 6ft
• (50') C2G 19305 Cat5e Snagless UTP Ethernet Patch Cable - Gray
• (200') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Gray
