Yamaha Gym Sound System with 8 CHR15 Flyable Loudspeakers, Bluetooth Media Player and Microphones

Inside the Design

This gymnasium sound system delivers exceptional audio coverage and clarity for large gymnasiums, indoor arenas, and multipurpose athletic spaces. Equipped with eight Yamaha CHR15 15" 2-way loudspeakers and two Yamaha PX5 stereo power amplifiers, this system provides premium sound for music, announcements, and events. With integrated Bluetooth and media player support, you can stream music from mobile devices, CDs, USB drives, or SD cards. The system includes wired and wireless microphones for play-by-play announcements, sporting events, pep rallies, and other school functions.

Sound System Features:

• Yamaha CHR15 15" 2-way loudspeakers deliver full-range, high-output sound ideal for large spaces
• Yamaha PX5 stereo amplifiers provide 500W x 2 at 8Ω / 800W x 2 at 4Ω with advanced processing for superior audio performance
• Pure Resonance Audio MX9 9-channel mixer with Bluetooth and built-in effects enables flexible source management
• AtlasIED WTSD-MIX31K wall mixer supports microphone, line, Bluetooth, and aux inputs, and includes an all-weather security cover
• Tascam CD-400U CD and media player with AM/FM receiver and Bluetooth for versatile media playback
• Audix AP42 OM2 dual-channel wireless microphone system with two handheld transmitters for reliable wireless operation
• Pure Resonance Audio UC1S vocal microphone with on/off switch for crystal-clear announcements
• AtlasIED DS7E adjustable desktop microphone stand for convenient use by announcers, referees, and instructors
• High-quality cabling and rack accessories ensure clean installation and connectivity throughout the facility

About the System Components

Yamaha CHR15 Loudspeakers

Eight Yamaha CHR15 15" 2-way loudspeakers provide high-power, full-range audio coverage, making them ideal for large gymnasiums and indoor arenas. Each speaker delivers clear highs and rich lows for music playback, announcements, and live events. The included eyebolts allow for secure mounting or rigging in elevated positions, ensuring consistent sound distribution throughout the space.

Yamaha PX5 Stereo Power Amplifiers

The two Yamaha PX5 stereo amplifiers deliver 500W x 2 at 8Ω or 800W x 2 at 4Ω, providing clean, reliable power with low distortion. With advanced DSP processing, these amplifiers efficiently drive multiple loudspeakers, ensuring even coverage and consistent sound quality across large areas.

Pure Resonance Audio MX9 9-Channel Mixer

The MX9 is a 9-channel rack-mounted mixer that combines flexibility and convenience with integrated Bluetooth connectivity and built-in effects. This mixer allows multiple audio sources, including microphones, media players, and instruments, to be controlled and mixed with ease, making it perfect for live events and gymnasium applications.

AtlasIED WTSD-MIX31K Wall Mixer and WTSD-COVER

The AtlasIED WTSD-MIX31K is a 3x1 analog wall mixer designed for microphone, line, Bluetooth, and auxiliary inputs, providing easy access and control for instructors, coaches, or announcers. Paired with the WTSD-COVER all-weather security cover, this combination protects the mixer from tampering or environmental exposure while maintaining convenient operation in high-traffic areas.

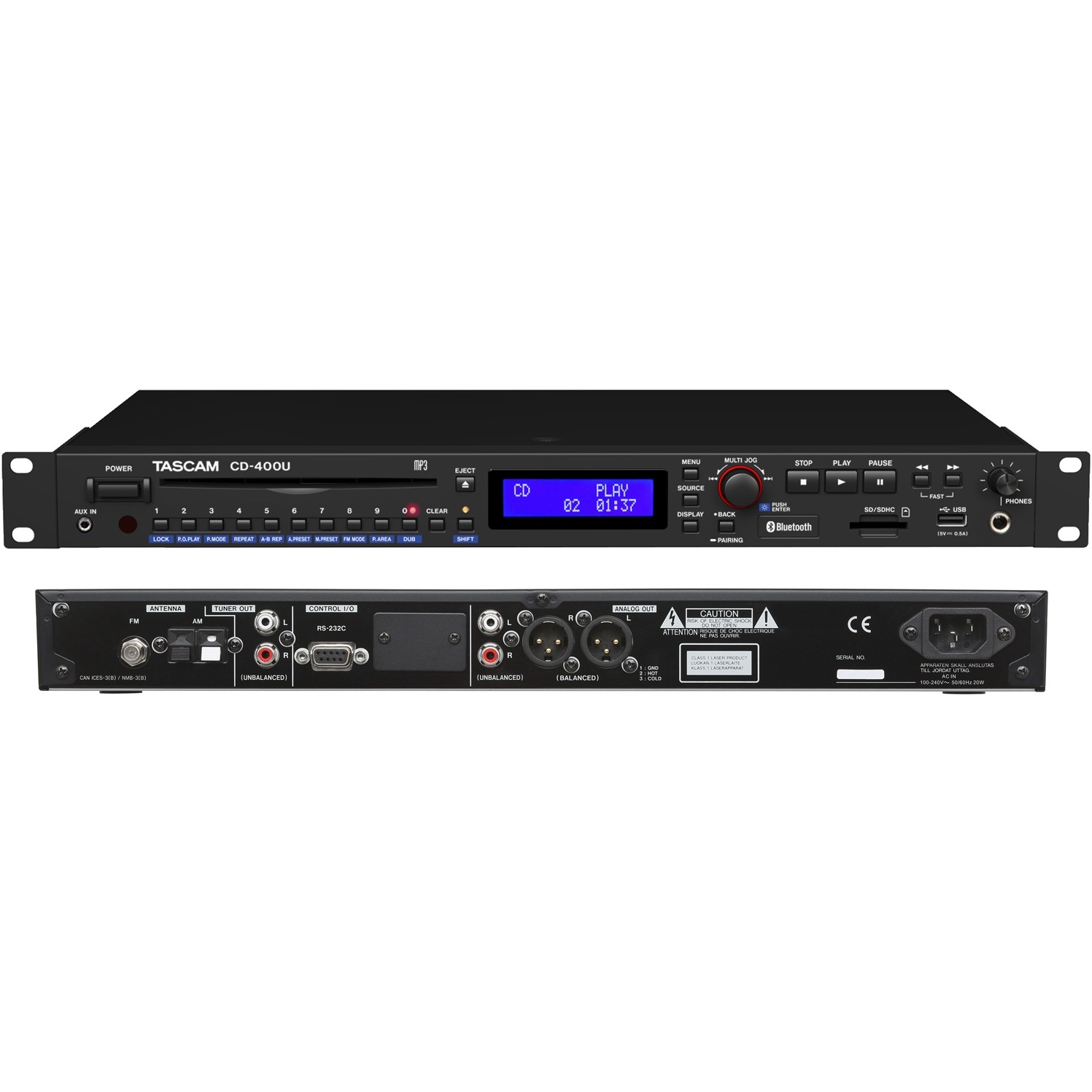

Tascam CD-400U CD and Media Player

The Tascam CD-400U serves as a versatile media player, offering playback from CDs, USB drives, SD cards, and Bluetooth-enabled devices, with an integrated AM/FM receiver. This ensures flexible media options for music, announcements, and program content without additional equipment.

ART PS8-II Professional Power Sequencer

The ART PS8-II power sequencer provides organized and safe power management for all rack-mounted equipment. It allows devices to power on and off in a controlled sequence, reducing the risk of power surges and ensuring reliable system operation during events.

Audix AP42 OM2 Dual Channel Wireless Microphone System

The Audix AP42 OM2 system includes a dual-channel R42 true diversity receiver and two H60/OM2 handheld transmitters. This reliable wireless system provides clear, interference-free audio for play-by-play announcements, events, and presentations, offering freedom of movement for instructors, referees, and performers.

Pure Resonance Audio UC1S Vocal Microphone

The UC1S wired vocal microphone features an on/off switch for convenient control and delivers clear, professional-quality sound for announcements and speech reinforcement. Its durable design ensures reliable performance in demanding environments.

AtlasIED DS7E Adjustable Desktop Microphone Stand

The AtlasIED DS7E desktop microphone stand is height-adjustable and ideal for announcers, judges, or instructors. Its sturdy construction ensures stability, while the flexible adjustment accommodates a variety of microphone positions for comfortable use.

Gator GRW2012508 12U 21" Deep Sectional Wall Rack with Steel Door

This 12U wall rack provides secure and organized housing for rack-mounted audio equipment, including amplifiers, mixers, and power sequencers. The steel door ensures protection against tampering or accidental contact while allowing convenient access for operation and maintenance.

Yamaha CHR15 15" 2-Way Loudspeakers

• 15" cast frame woofer and 2" compression driver for full-range sound with clear highs and deep lows
• 90° x 45° coverage pattern for wide and even sound dispersion
• Integral pole socket for stand mounting or secure rigging with included eyebolts
• High power handling for music playback, announcements, and live events
• Durable wood enclosure optimized for professional indoor use
• Built-in protection to prevent speaker damage
• Flyable design for overhead mounting or suspension



Yamaha PX5 Stereo Power Amplifiers 500W x 2 at 8Ω / 800W x 2 at 4Ω

• 2x 500W at 8Ω / 2x 800W at 4Ω output power
• Class-D amplifier engine with custom LSI for clean, efficient performance
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Speaker presets for Yamaha and third-party speakers
• Advanced utilities for safe and reliable operation in professional environments
• Compact 2U rack-mount design for easy integration



Pure Resonance Audio MX9 9-Channel Rack-Mount Mixer with Bluetooth and Effects

• 9-channel mixer with 6 mic/line inputs and 3 line/Bluetooth inputs
• Built-in Bluetooth for wireless music streaming from smartphones, tablets, and other devices
• Integrated effects including reverb and delay for live and playback applications
• EQ and level controls on each channel for precise audio adjustment
• Compact 1U rack-mount design for professional installations
• Supports multiple source types including microphones, media players, and instruments



AtlasIED WTSD-MIX31K Indoor/Outdoor Wall Mixer & WTSD-COVER Security Cover

• 3x1 analog mixer for microphone, line, Bluetooth, and auxiliary inputs
• Front panel control for quick access and easy operation
• All-weather WTSD-COVER with lock and keys protects against tampering and environmental exposure
• Durable design for high-traffic gymnasium or outdoor use
• Simple installation on wall for convenient accessibility to instructors, coaches, or announcers



Tascam CD-400U CD and Media Player with AM/FM Receiver and Bluetooth

• Plays CDs, USB, SD cards, and streams via Bluetooth from any compatible device
• Built-in AM/FM tuner for radio playback
• Multiple outputs including XLR, dual RCA, and headphone jack
• 1/8" auxiliary input for external devices
• “Power on Play” automatically starts playback when powered on
• Panel lock function prevents unauthorized operation
• Real-time recording from CD or FM/AM tuner to USB/SD media



ART PS8-II Professional Power Sequencer

• Eight individually sequenced outputs with front panel LED indicators
• Adjustable sequence delay range from 0.5 to 2 seconds per output
• Rear mount terminal block for remote sequence control
• Front panel unswitched and unregulated output for auxiliary devices
• 1800W total power capacity with surge and spike protection
• EMI and RFI filtering for cleaner signal and reduced interference
• Front panel master breaker and power switch



Audix AP42 OM2 Dual Channel Wireless Microphone System with 2 H60/OM2 Handheld Microphones

• Dual-channel R42 true diversity receiver for interference-free operation
• 32 MHz wide spectrum tuning and 106 pre-coordinated frequencies
• One-touch auto scan for the clearest available channel
• Infrared beam sync for transmitter-receiver pairing
• H60/OM2 handheld transmitters with durable metal housing
• Up to 14 hours battery runtime with standard AA batteries



Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch

• Heavy-duty housing with steel mesh grille for durability
• Built-in wind and breath pop filter
• Quiet on/off switch for convenient control
• Frequency response tailored for clear vocal reproduction
• Uniform cardioid pickup pattern minimizes background noise
• Supplied with break-resistant stand adapter
• Suitable for both indoor and outdoor events



AtlasIED DS7E Adjustable Height Desktop Microphone Stand

• Height-adjustable for flexible positioning of microphones
• Sturdy construction ensures stability for desktop or tabletop use
• Ideal for announcers, referees, or instructors in gymnasium settings



Gator GRW2012508 12U 21" Deep Sectional Wall Rack with Steel Door

• 12U rack space for organized mounting of amplifiers, mixers, and sequencers
• 21" depth accommodates larger rack-mounted equipment
• Steel door provides secure protection while allowing easy access
• Professional-grade construction ensures durability and long-term use

• (8) Yamaha CHR15 15" 2-Way Loudspeakers
• (2) Yamaha PX5 Stereo Power Amplifiers 500W x 2 at 8Ω / 800W x 2 at 4Ω
• (1) Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects
• (1) AtlasIED WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer
• (1) AtlasIED WTSD-COVER All-Weather Security Cover with Lock and Keys
• (1) Tascam CD-400U CD and Media Player with AM/FM Receiver and Bluetooth
• (1) ART PS8-II Professional Power Sequencer
• (1) Audix AP42 OM2 Dual Channel Wireless Microphone System with R42 True Diversity Receiver and (2) H60/OM2 Handheld Transmitters
• (1) Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch
• (1) AtlasIED DS7E Adjustable Height Desktop Microphone Stand
• (1) Gator GRW2012508 12U 21" Deep Sectional Wall Rack with Steel Door
• (1) Gator GRW-DRW2 Rack Drawer
• (1) Gator GRW-SCRW050 Rack Screws (50 Pack)
• (8) Pure Resonance Audio EB10K M10 Eyebolts (3-Pack)
• (1) CBI CB2-2RR-6 Dual RCA to Dual RCA Cable - 6 ft
• (12) Hosa NL4FXX-W-L 4 Pole Neutrik SpeakON Cable Adapters
• (100') C2G 27096 Cat5e Snagless UTP Ethernet Patch Cable - Black
• (2) CBI BLC-3 1/4" TRS to Male XLR Cables - 3 ft
• (1) Pure Resonance Audio TRS-3-PREP 1/4" TRS to Prep Patch Cable - 3 ft
• (2) Pure Resonance Audio XLR-3 Microphone Cables - 3 ft
• (2) Pure Resonance Audio XLR-6 Microphone Cables - 6 ft
• (1) Pure Resonance Audio XLR-25 Microphone Cable - 25 ft
• (1000') West Penn 227 12/2 Audio Speaker Wire - Black
