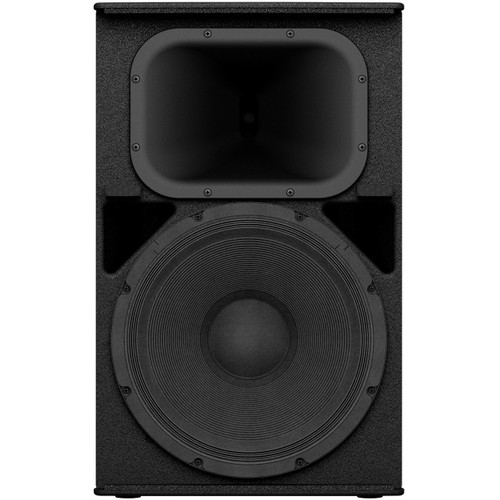

Audio engineers, touring bands, and mobile DJs in search of a professional-grade passive loudspeaker will be impressed with the black Yamaha CHR15, a compact, passive two-way loudspeaker well suited for clubs, bars, and live music venues.
The speaker utilizes a 15" woofer and 1.4" compression driver, which combine to offer a frequency range of 49 Hz to 20 kHz at 125 dB SPL. A pair of CHR15 provides plenty of volume to cover an audience of 300 patrons. The compression driver is mounted into a 90 x 60° horn and provides crystal clear highs in a broad coverage angle.
The plywood enclosure is finished with a durable Polyurea coating. There are three M10 fly points; two on the top and a single pullback. A dual 1.4" pole socket on the bottom allows the speaker to be mounted to a speaker pole at 0 or -7°, which provides a lot of flexibility in placement and can prevent the sound from bouncing off low ceilings. Utilize processor tuning settings for a Yamaha DSP equipped amplifier or other compatible signal processors to maximize system performance.
| Pole Socket | Φ35 mm x2 (0° and 7°) |
|---|---|
| Configuration | 15" 2-way Speaker, Bass-reflex Type |
| Power Rating (IEC Noise) | Noise: 250W PGM: 500W MAX: 1000W |
| LF Driver | 15" Cone |
| HF Driver | 1.4" |
| Frequency Range | 49Hz - 20kHz -10 dB |
| Maximum SPL | 125 dB |
| Coverage Angle | 90° H x 60° V |
| Connectors | SpeakON NL4MP x 2 (Parallel connected) |
| Rigging Points | Top x 2, Rear x 1 (Fit for (3) M10 Eyebolts) |
| Dimensions (H x W x D) | 27.25" (692 mm) x 17" (432 mm) x 16" (405 mm) |
| Weight | 48.4 lbs (22 kg) |
