Inside the Design
This premium conference room sound solution provides 360° of crystal-clear audio coverage for small to medium size conference rooms, training rooms or meeting rooms. The Pure Resonance Audio SD5 SuperDispersion® omnidirectional drop tile ceiling speaker array offers a smooth even 360-degrees of seamlessly omnidirectional sound coverage with crisp vocal articulation and low distortion. The RMA120BT mixer amplifier features simple Bluetooth connectivity and 120W of high-performance Class H power in a lightweight, space-saving design. The included Biamp TesiraFORTÉ® VT digital audio server features 12 analog inputs with Acoustic Echo Cancellation (AEC) technology and 8 analog outputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface. Also included are six Biamp Tesira CM1-6W miniaturized cardioid condenser hanging microphones with integrated preamps to provide quality audio, pleasing aesthetics, and significant noise canceling abilities that has very high sensitivity for distance miking.
Sound System Features:
- 360° x 180° Coverage: Powerful proprietary speaker design that works to produce amazing vocal intelligibility and uniform room coverage made possible by a dramatically lower crossover point
- Crystal Clear Sound: The powerful 3" tweeter design works in perfect harmony with the three 5.25" drivers to produce amazing speech intelligibility and powerful crystal clear music reproduction
- Easy to Install: The SD5 takes minutes to install. Just remove one ceiling tile and drop the speaker into any standard 2x2 or 2x4 drop tile ceiling
- Bluetooth-Enabled: The RMA120BT supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth Wireless Connection
- Ceiling Mics: The CM1-6W miniaturized condenser mics are designed with very high sensitivity for distance miking and have complete immunity from RF interference caused by cell phones and GSM devices
The SD5's array of custom-engineered drivers works in perfect harmony with its powerful tweeter design to reduce frequency cancellation and provide crystal clear sound, giving this system better audio coverage and response than most loudspeaker systems. With selectable 8 Ohm and 70 Volt inputs, this speaker works with any commercial or stereo amplifier.
In case of an emergency, you don’t need to worry about switching off your audio or adjusting volume and inputs. The amplifier includes an emergency input, which stops all other audio transmissions and allows emergency voice alarm systems to be heard loud and clear, so presenters and attendees can respond to emergencies efficiently and safely.
About the System Components

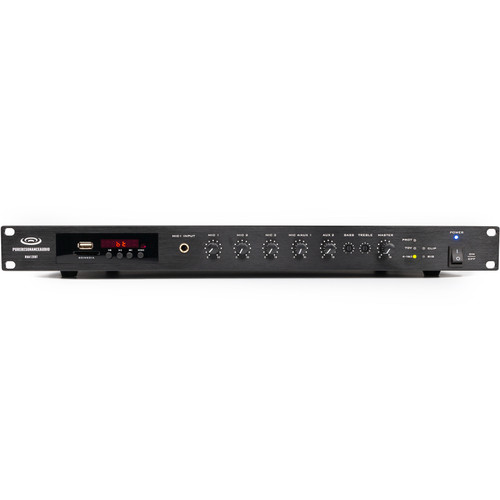

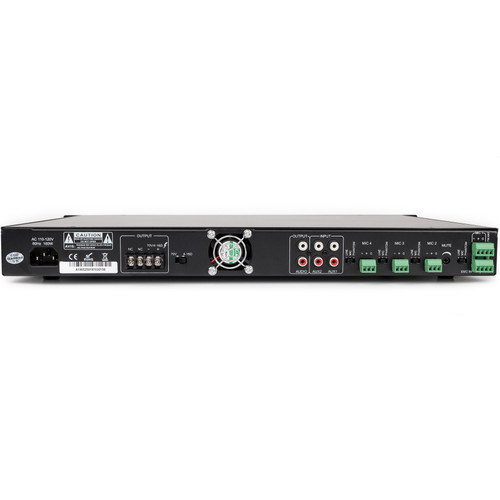

This conference sound system includes our 2'x2' SD5 SuperDispersion® ceiling speaker array featuring 360° of crystal-clear audio coverage with three 5.25" drivers and a 3" tweeter in a thin and lightweight design that is simple to install. Also included is our RMA120BT 120W Bluetooth mixer amplifier with 4-16Œ©/70V distributed audio speaker outputs, 2 AUX inputs, 4 MIC inputs, USB input, SD card slot, and an emergency channel input. The RMA mixer amplifier also comes with an IR remote to control the unit from a distance. This meeting room ceiling speaker system also includes six Biamp CM1-6W is a 6-inch miniaturized, gooseneck condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking and a Biamp TesiraFORTÉ VI is a digital audio server with 12 analog inputs and 8 analog outputs. Accessories include a 3' 1/4" cable and 100' of 16/2 non-plenum speaker wire. This conferencing speaker system is an ideal solution for applications requiring excellent vocal intelligibility.
Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
