Inside the Design

This premium conference room sound solution with a Pure Resonance Audio SD5 speaker array provides 360° of crystal-clear audio coverage for medium-sized areas. The RMA120BT mixer amplifier features simple Bluetooth connectivity and 120 watts of high-performance Class H power in a lightweight, space-saving design. The SONY VPL-PHZ51 video projector provides outstanding picture performance and the dual handheld and lavalier wireless mic system is perfect for meetings. Wirelessly stream audio with your Bluetooth-enabled device or connect your existing audio and/or video equipment via the mixer amplifier. This conference speaker system is perfect for conference venues, multi-function rooms, event rooms, meeting rooms or any other application where vocal intelligibility is needed.

Sound System Features:

• 360° x 180° Coverage: Powerful proprietary speaker design that works to produce amazing vocal intelligibility and uniform room coverage made possible by a dramatically lower crossover point
• Crystal Clear Sound: The powerful 3" tweeter design works in perfect harmony with the three 5.25" drivers to produce amazing speech intelligibility and powerful crystal clear music reproduction
• Easy to Install: The SD5 takes minutes to install. Just remove one ceiling tile and drop the speaker into any standard 2x2 or 2x4 drop tile ceiling
• Bluetooth-Enabled: The RMA120BT supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth Wireless Connection

• Video Projector: Beautifully slim, light, and stylish, the SONY VPL-PHZ51 combines outstanding picture performance with discreet blend-in styling, minimal maintenance needs, and flexible installation options
• Wireless Microphones: Digital wireless system is easy to setup and provides clear, natural sound quality

The SD5's array of custom-engineered drivers works in perfect harmony with its powerful tweeter design to reduce frequency cancellation and provide crystal clear sound, giving this system better audio coverage and response than most loudspeaker systems. With selectable 8 Ohm and 70 Volt inputs, this speaker works with any commercial or stereo amplifier.

In case of an emergency, you don't need to worry about switching off your audio or adjusting volume and inputs. The amplifier includes an emergency input, which stops all other audio transmissions and allows emergency voice alarm systems to be heard loud and clear, so presenters and attendees can respond to emergencies efficiently and safely.

About the System Components

This conference sound system includes our 2'x2' SD5 SuperDispersion® ceiling speaker array with 360° of crystal-clear audio coverage, featuring three 5.25" drivers and a 3" tweeter in a thin and lightweight design that is simple to install. Also included is our RMA120BT 120W Bluetooth mixer amplifier featuring a 4-16Ω/70V distributed audio speaker output, 2 AUX inputs, 4 MIC inputs, USB input, SD card slot, and emergency channel input. A SONY VPL-PHZ51 5300 Lumens 3LCD WUXGA Laser Projector with a Chief SYSAU Suspended Ceiling Projector Mount, an Audio-Technica ATW-1312/L Digital Dual Wireless System with Lavalier and Handheld Microphone, an RDL TX-J2 unbalanced input transformer, an HDMI wall plate, a 75' HDMI cable, a 3.5 mm stereo male to two RCA stereo male Y-cable, a 3' female XLR to prep wire, 100' prep to prep cable and 50' of speaker wire.

Not sure if this is the right Conference Room Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

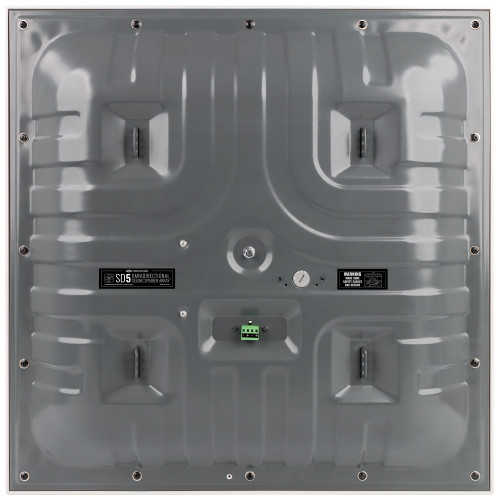

Pure Resonance Audio SD5 SuperDispersion® 70V Omnidirectional Drop Tile Ceiling Speaker Arrays:

• Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
• Powerful proprietary tweeter design with a lower crossover point improves vocal performance
• Wave guided housing directs sound where it needs to go
• Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction
• Low profile metal back-box comes with built-in safety suspension points
• Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
• Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
• Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

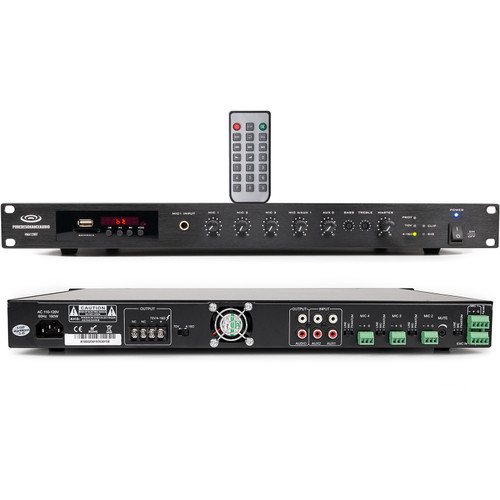

Pure Resonance Audio RMA120BT 5-Channel 120W Commercial Rack Mount Mixer Amplifier with Bluetooth 4 Ohm/70V:

• 1 RU chassis, high-efficiency, and lightweight design
• MP3 media player supports USB, SD, Bluetooth and FM tuner
• Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
• Bass and treble tone controls
• Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
• Advanced high-performance power amplifier circuit
• 4-16Ω/70V speaker output
• 120W rated output power
• Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
• Remote control

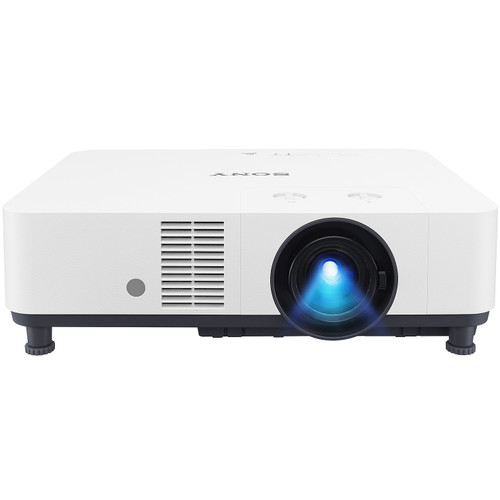

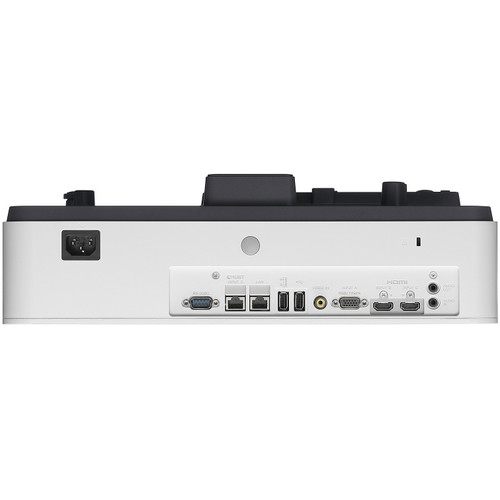

SONY VPL-PHZ51 5300 Lumens 3LCD WUXGA Laser Projector:

• Brightness of 5300 lumens
• WUXGA 1920 x 1200 native resolution
• 1.23 to 1.97:1 Throw ratio
• 2 x HDMI, 1 x Composite & 1 VGA Input
• +55% Lens shift & H/V keystone
• Projects 40" to 300" images
• Ambient light sensor
• Anti-dust system
• Auto input select & power on
• Ceiling mountable



Audio-Technica ATW-1312/L System 10 PRO Rack-Mount Digital Dual Wireless System with Lavalier and Handheld Microphone:

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Operates in the 2.4 GHz range – completely free from TV interference
• Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
• Up to five chassis (ten receiver units) can be linked and used simultaneously
• Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
• Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and setup
• Three levels of diversity assurance: frequency, time and space
• Ground-lift switch helps eliminate audible hum caused by ground loops

• (1) Pure Resonance Audio SD5 SuperDispersion® Drop Tile Ceiling Speaker Array
• (1) Safety Cable Kit: (4) Steel Safety Cables, (4) Carabiners and (4) Fastlinks
• (1) Pure Resonance Audio RMA120BT 120W Commercial Bluetooth Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1) SONY VPL-PHZ51 5300 Lumens 3LCD WUXGA Laser Projector
• (1) Chief SYSAU Suspended Ceiling Projector Mount - White
• (1) Audio-Technica ATW-1312/L System 10 PRO Rack-Mount Digital Dual Wireless System with Lavalier and Handheld Microphones

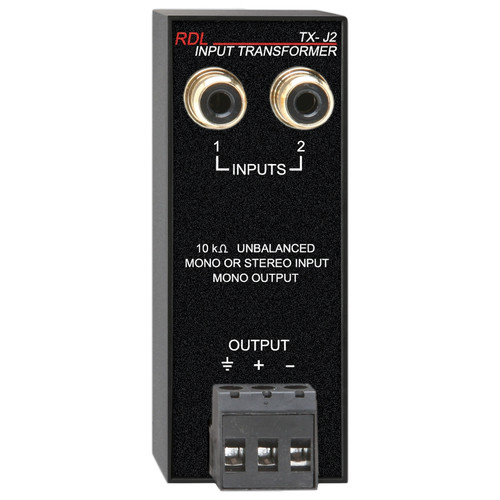

• (1) RDL TX-J2 Unbalanced Input Transformer
• (1) C2G 39710 HDMI Pass Through Decora Style Wall Plate - White

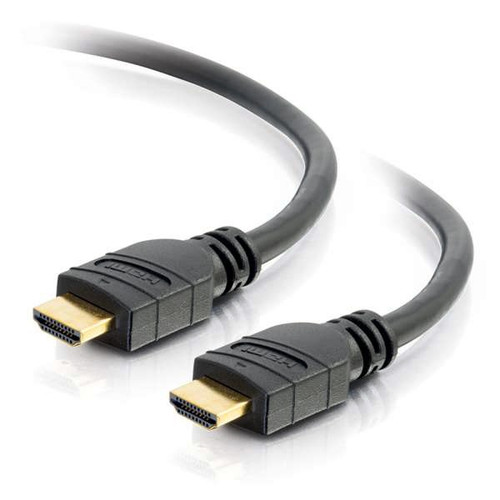

• (1) C2G 41368 Active High Speed HDMI Cable In-Wall - 75ft

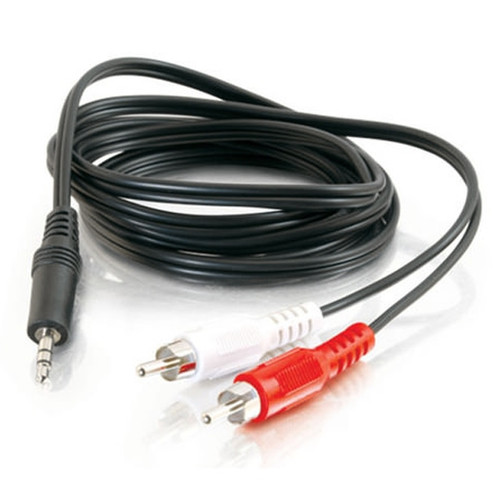

• (1) C2G 40423 Value Series™ One 3.5 mm Stereo Male to Two RCA Stereo Male Y-Cable - 6ft
• (2) CBI MLN-3-PREP-F Female XLR to Prep Wire Cables - 3ft

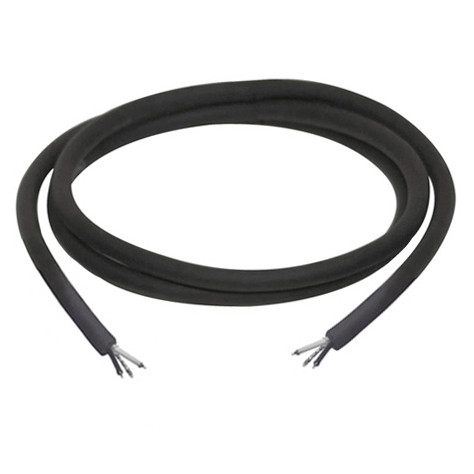

• (1) CBI MLN-100-PREP-PREP Bare Wire to Bare Wire Prep Cable - 100ft
• (50') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
