- Description
Details

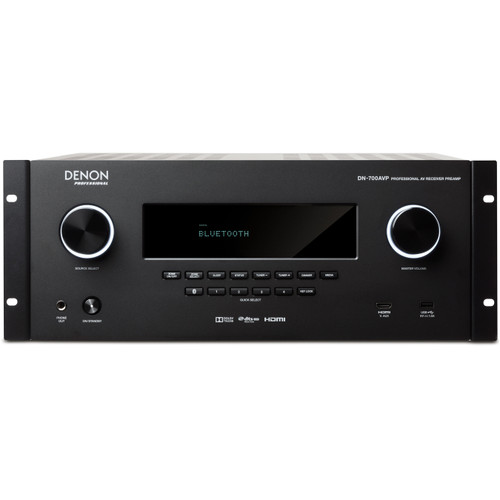

With comprehensive in/out connections and the latest Bluetooth 4.0 wireless technology, the Denon DN-700AV is the ideal centerpiece for any commercial audio-video system. Featuring six HDMI inputs, component/composite ins/outs, XLR balanced 7.1 pre-outs and RS-232C and IP control, the 700AV is uniquely capable of handling virtually any installation requirement.
The unit is compatible with many of today's multi-channel formats, including TrueHD/Dolby Digital Plus/Dolby Digital/ DTS-HD/MasterAudio/DTS ES. Plus, it’s HDCP-compatible and has network streaming via DLNA. A powerful 75-watt x 7 amplifier with high-current design drives even low-efficiency speakers to loud levels.
The DN-700AV was designed with the contractor in mind, combining a rackmount chassis, Euroblock amplifier outputs and balanced, XLR preamplifier outputs. A balanced XLR stereo input rounds off the feature set aimed at the professional installer.
- Features
Features
- Six HDMI version 2.0 inputs and one output
- Component & composite video inputs and outputs
- Dolby TrueHD / Dolby Digital Plus / Dolby Digital/ DTS-HD Master Audio/ DTS ES
- XLR balanced 7.1 preamp outputs
- Euroblock 7.1 amplified outputs (75W per channel)
- Bluetooth 4.0
- FM tuner with 20-channel memory
- RS-232C and IP control
- HDCP compatible and network streaming via DLNA 3.0
- Specification
Preamp Outpust 7.1 Surround Level -10 dBv or +4 dBu Amplified Outputs 7.1 Surround Output Power Per Channel 75W/ch Frequency Response 10 kHz – 100 kHz, +/-1.0 dB Dynamic Range 10 kHz – 100 kHz, A-Weighted, >90 dB Signal-to-Noise 1 kHz, 0 dB, A-Weighted, >90 dB Distortion <0.006% T.H.D 1 kHz, 0 dB, A-Weighted, <0.01% Supported Surround Formats Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS ES Supported File Types WMA, MP3, WAV, MPEG-4 AAC, and FLAC files Bluetooth Specifications Version: 4.0 Profile: A2DP, AVRCP Range: Up to 50ft (15m) FM Tuner Frequency Range 87.5 MHz – 108 MHz USB Connectivity File System: FAT 16/32 Media Type: USB Flash Drive Analog Audio Input Unbalanced RCA Nominal Level: -10 dBV (At Full Scale: -16 dB) Minimum Input Level: -19 dBv or Higher Input Impedance: 47 KΩ ± 10%, Unbalanced Digital Audio Inputs Coaxial: RCA (IEC-60958 Type II) Optical: Toslink IEC-60958 Type II) HDMI Version 1.4 (3D and ARC Supported) Input Voltage 100–240 V, 50/60 Hz Fuse <20W Operating Temperature 41 °F to 113 °F Operating Humidity 25–85%, non-condensing Dimensions (H x W x D) 6.93" (176 mm) x 19" (483 mm) x 13.66" (347 mm) Weight 32.4 lbs (14.7kg) - Documents
Documents
- In The Box
In The Box
- (1) DN-700AV
- (1) Power Cable
- (1) FM Antenna
- (1) Remote Control
- (1) Euroblock Connectors
- User Guide
- Safety and Warranty Manual
