The Denon DN-104S has been designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance and suitability with multiple unit installations.

Description

Denon Professional DN-104S 4" Commercial In-Ceiling Speaker Fire-Resistance (EN 54-24)

Denon Professional’s range of ceiling loudspeakers is designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance and suitability for multiple unit installation.

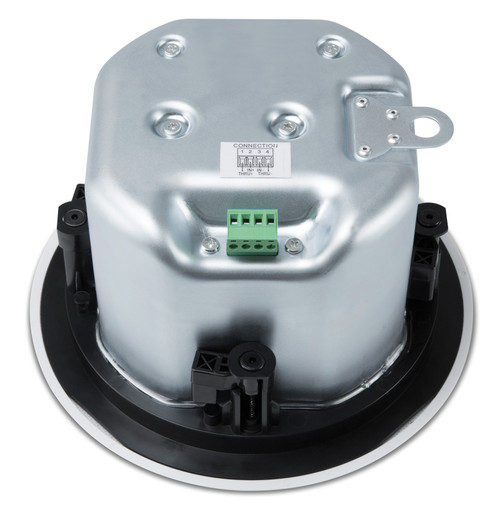

The DN-104S features a metal “can” rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer’s enclosure to optimize its bass tuning and low frequency response. The speakers have 70/100-volt transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers.

There are three different size models with 4-inch, 6 ½-inch and 8-inch woofers. All three utilize high quality drive units in tuned reflex enclosures and precision electronic crossovers to deliver clean, detailed sound, perfect for music, public address applications and business/educational presentations, while meeting all safety and fire codes as required by commercial venues.

Features

  • 4" long-excursion woofers
  • 20mm wide dispersion dome tweeter
  • Driver Power: 30W (RMS) 60W (Peak)
  • 70/100V transformers for multi-unit installations
  • Metal rear enclosures meet commercial fire codes
  • Frequency response: 80-20kHz
  • Mounting Bracket Included

Specifications

LF Driver 4" (105 mm) long-excursion woofer
HF Driver 3/4" (20 mm) wide dispersion tweeter
Frequency Response 80 Hz - 20 kHz
Driver Power 30W (RMS) and 60W (Peak)
Sensitivity 85dB (1W/1m)
Power Tappings 70/100V transformers for multi-unit installations
70V 10W
5W
2.5W
1.25W
Impedance: 16 Ohms
100V 10W
5W
2.5W
Impedance: 16 Ohms
Cutout Hole Diameter 7.17" (182 mm)
In-Ceiling Clearance Height 4.92" (125 mm)
Mounting Bracket Weight 1.54 lbs (0.70 kg)
Speaker Weight 4.74 lbs (2.15 kg)

DOCUMENTS

In The Box

  • (1) DN-104S Speaker
  • (1) Mounting Bracket
  • (1) Speaker Grill
  • (4) Screws
  • (4) Washers
  • (1) 4-Pin Euroblock Connector
  • User Guide
  • Safety & Warranty Manual
