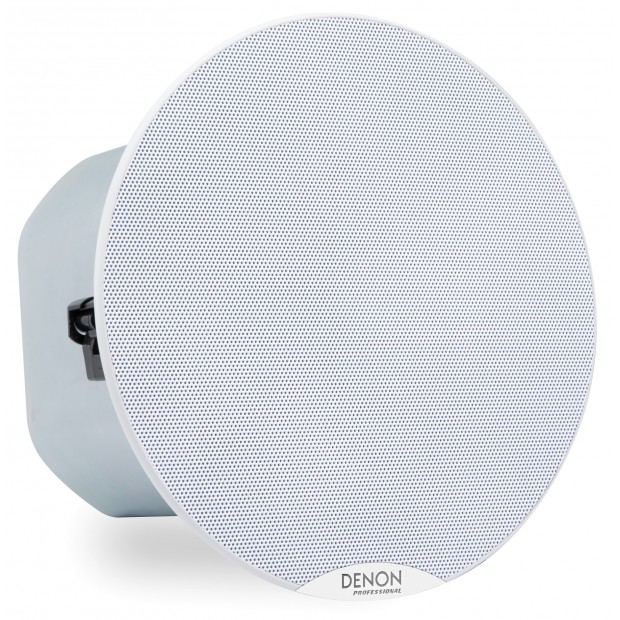

Denon Professional DN-106S 6.5" Commercial Grade In-Ceiling Loudspeaker (Discontinued)

Part #:
DN-106S
Model #:
DN-106S
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

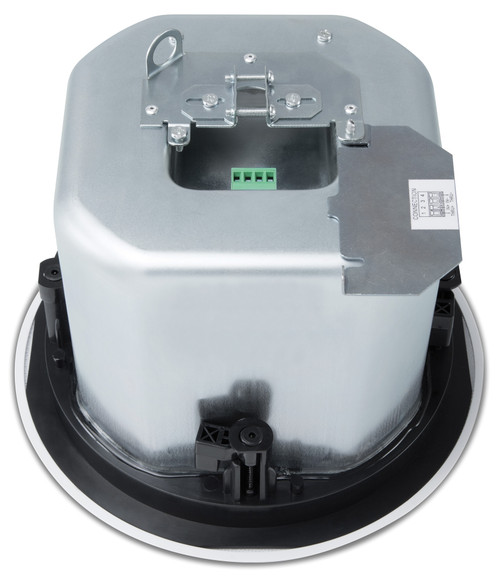

The Denon Pro DN-106S features a metal “can” rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer’s enclosure to optimize its bass tuning and low frequency response. The speakers have 70/100V transformers to facilitate multiple unit installations.

Description

Denon Professional DN-106S 6.5" Commercial In-Ceiling Speaker Fire-Resistance (EN 54-24)

Denon Professional’s range of ceiling loudspeakers is designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance and suitability for multiple unit installation.

The DN-106S features a metal “can” rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer’s enclosure to optimize its bass tuning and low frequency response. The speakers have 70/100V transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers.

There are three different size models with 4", 6.5" and 8" woofers. All three utilize high quality drive units in tuned reflex enclosures and precision electronic crossovers to deliver clean, detailed sound, perfect for music, public address applications and business/educational presentations, while meeting all safety and fire codes as required by commercial venues.

Features

  • 6 1/2" long-excursion woofers
  • 20mm wide dispersion dome tweeter
  • Driver Power: 60W (RMS) 120W (Peak)
  • 70/100V transformers for multi-unit installations
  • Metal rear enclosures meet commercial fire codes
  • Frequency response: 57-20kHz
  • Mounting Bracket Included

Specifications

LF Driver 6.5" (159 mm) long-excursion woofer
HF Driver 3/4" (20 mm) wide dispersion tweeter
Frequency Response 57 Hz - 20 kHz
Driver Power 60W (RMS) and 120W (Peak)
Sensitivity 90dB (1W/1 m)
Power Tappings 70/100V transformers for multi-unit installations
70V 60W
30W
15W
7.5W
Impedance: 16 Ohms
100V 60W
30W
15W
Impedance: 16 Ohms
Cutout Hole Diameter 8.75" (222 mm)
In-Ceiling Clearance Height 6.82" (173 mm)
Mounting Bracket Weight 1.54 lbs (0.70 kg)
Speaker Weight 8.16 lbs (3.70 kg)

DOCUMENTS

In The Box

  • (1) DN-106S Speaker
  • (1) Mounting Bracket
  • (1) Speaker Grill
  • (4) Screws
  • (4) Washers
  • (1) 4-Pin Euroblock Connector
  • User Guide
  • Safety & Warranty Manual
