Dynacord U60:1M 60W Single-Channel Mixer Amplifier

Dynacord U60:1M 60W 1-Channel Mixer Amplifier

The U60:1M is a professional-grade 60-watt mixer amplifier built to deliver reliable performance, energy efficiency, and clear audio for small to medium-sized commercial installations. Designed with flexibility and ease of use in mind, this compact amplifier is ideal for background music and voice paging in environments such as retail stores, restaurants, classrooms, houses of worship, galleries, transportation kiosks, and conference breakout rooms.

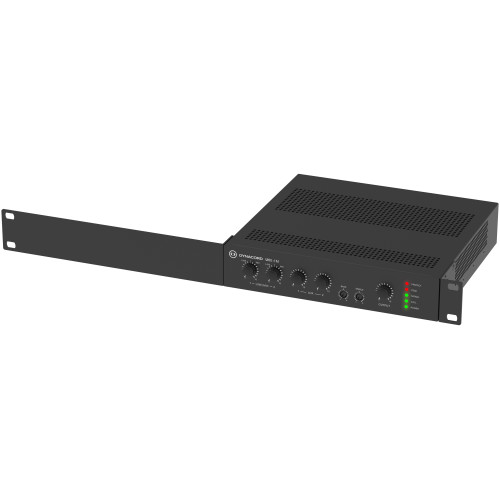

With its moderate power output, the U60:1M offers an excellent balance of performance and efficiency. It features the same half-rack, 1RU form factor found throughout the U Series line, making it perfect for installations where space is limited. Mounting brackets are included for single or side-by-side rack configurations, or for desktop and under-counter installation. When mounted side by side, two U60:1M units can share a single rack space, maximizing output without increasing footprint.

Built with Dynacord's engineering excellence, the U60:1M delivers clean sound, advanced control features, and dependable operation in demanding commercial environments. Whether deployed on its own or as part of a larger distributed system, it provides a compact, reliable, and flexible solution for professional sound reinforcement.

Functions

Advanced Amplification Technology

Incorporates class-D amplification topology for superior energy efficiency, product quality, and reliability compared to traditional linear power supply and class-AB amplification.

Compact Form Factor

Half rack, 1U enclosure ensures space-saving installation without compromising performance.

Full Power at Low and High Impedance

Supports 70V, 100V, 4Ω, and 8Ω speaker systems, offering versatility in system design.

Phantom Power

Facilitates microphone operation with power supplied to both microphone inputs.

VOX Ducking

Prioritizes voice input, enhancing clarity during announcements or speeches.

Remote Power

Enables remote power ON/OFF functionality via contact closure, enhancing operational convenience.

Bass and Treble Adjustment

Allows fine-tuning of audio output with dedicated bass and treble adjustment controls.

High-Pass Filter

Available 120 Hz high-pass filters to tailor audio output according to application requirements.

Flexible Mounting Options

Offers versatile mounting possibilities, including rack mount, side-by-side rack mount, table-top, or under-table mounting, facilitated by included brackets and accessories.

Emergency Input

Features 100V and Line In emergency input with level selection, ensuring critical messages are delivered clearly.

Protection

Equipped with overload and short circuit protection, along with a limiter to safeguard both the amplifier and loudspeaker against accidental overdriving. A temperature-controlled fan ensures optimal cooling without generating acoustic noise at lower output levels.

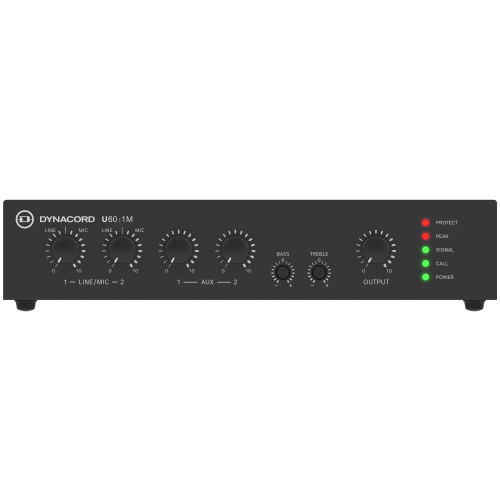

Accessible Front Controls

Conveniently adjust output gain, input gain per channel, and bass and treble settings directly from the front panel for effortless customization.

• Versatile inputs: 4 inputs, 2 mic/line options with phantom power support
• Full power output supporting 4Ω, 8Ω, 70V and 100V
• EMG override input, ensuring critical messages are heard clearly
• Contact override with 2-tone chime for attention-grabbing alerts
• 70 Hz and 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
• Space-saving compact ½ rack design, providing versatility without compromising performance
• VOX Ducking that automatically adjusts background music volume for clear voice communication
• Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
