Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

The TG-7 Tour Grade amplifier has a microprocessor controlled operation management system that provides useful features such as compound thermal management (preventing the unit from switching off in excessive thermal environment), automatic mains voltage detection and a circuit breaker control that allows the TG-7 to operate on a 30A (120V) respect. or 16A (230V) circuit breaker with normal music signal.

Whether you‘re performing at the local rock club, lecturing at a corporate seminar, or speaking in a house of worship, your wireless system needs clear sound, clean channels, and easy-to-use setup and operation. The Electro-Voice RE-2 has it all, combining professional power with previously unmatched simplicity. The RE-2 takes frequency agility to a whole new level, and it ensures that your sound comes through without interference, drop-outs, or compromised audio quality. A third generation wireless system, the RE-2 is affordable, professional, and designed for those who are serious about their sound.

The M-633D is a compact, easy-to-use digital audio mixer designed for Live and AV applications. The M-633D's simple analog interface makes setup and operation fast and efficient. With powerful, automatic on-board DSP, the M-633D eliminates problem acoustics and feedback that optimizes sound quality for any venue. Multiple outputs provide flexibility for operation in several zones and allows recording of main mix signal. Its compliment of inputs makes it ideal for live performance, conferences and banquet events utilizing microphones and music playback or other auxiliary audio sources.

The PC-18/FL is highly-shielded from RFI/GSM multi-pattern miniature gooseneck podium microphones designed for sound reinforcement systems where sound quality and gain before-feedback is of major importance. The multi-pattern versatility of the PolarChoice microphone makes it true “problem solver”. With three directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat bladed screwdriver with the front mounted rotary control on the external electronics module.

Electro-Voice EVF-1152S 96 15" 2-Way Loudspeakers:

• 2-inch ND2B titanium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 40º to 90º
• 101 dB sensitivity, 134 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• 4th-order crossover with HF protection
• Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

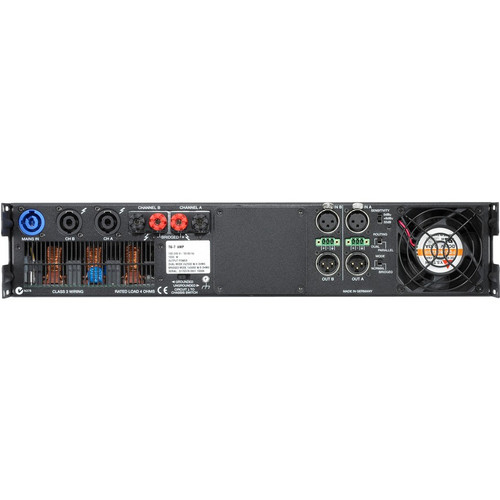

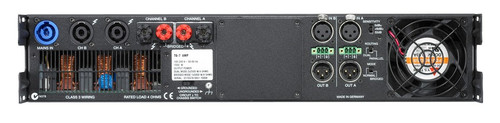

Electro-Voice TG7 Power Amplifier:

• Up to 2 x 3500 W into 4 Ohms
• Grounded Bridge Class-H Design
• Microprocessor Controlled
• Front LCD-Panel for Control and Monitoring
• Slot for Optional IRIS-NetTM Compatible Control Module
• 11-Level Protection Package
• Only 14.5 kg (32 lbs)

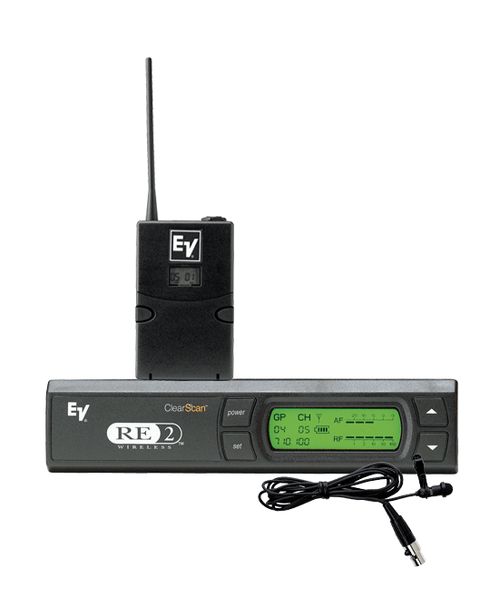

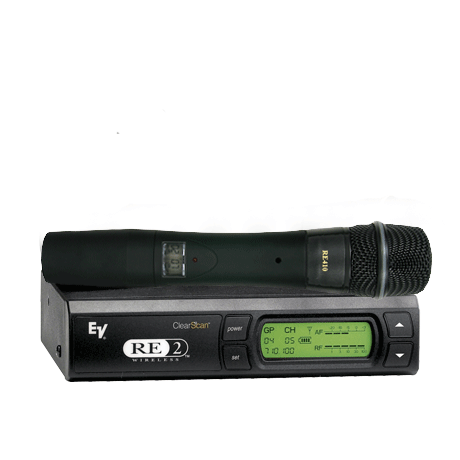

Electro-Voice RE2 Wireless Microphone System:

• Unique “smart” battery with low battery LED
• LCD displays group and channel, frequency or battery level
• One on/off button that also acts as a mute
• On/off button can be disabled
• Optional pouches and fixed clip available
• A wide selection of lapel microphone accessories available
• One touch ClearScan
• 28 MHz operating bandwidth, programmable in 25 kHz steps
• Backlit LCD displays the group, channel, frequency, transmitter battery level, diversity operation, and RF and audio signal level meters
• Outputs: 1/4" line-level, balanced XLR mic/line
• Posi-PhaseTM diversity
• Advanced audio circuits with unique guitar setting



TOA M-633D Digital Stereo Mixer:

• Pristine Digital Audio quality w/24bit 48kHz A/D & D/A
• 1U rack size digital mixer with 12 inputs and 6 outputs:
• Inputs: 6 mono Mic/Line (Phoenix)+ 3 stereo Unbalanced Line (RCA)
• Outputs: 2 Balanced mono + 1 stereo (Phoenix) + 1 recording (RCA)
• Easy operation: Analog user interface, no PC setting is required
• No more feedback
• 7 automatic filters per channel
• Can be activated independently for each MIC Input
• Easy-to-use Automatic Resonance Control (ARC) function built in
• ARC processor (same as in TOA DP-K1) compensates for acoustic resonances which can reduce intelligibility
• May be set to work for all main outputs independently (12 filters per output)
• Simple 1 Button activation
• Automatic Clip-Guard, prevents Input clipping distortion
• Auto-Muting of Line Input Sources via Priority Mic Inputs
• Output zone assignments easily accessed from front panel
• Supplied security cover prevents unauthorized access to front panel controls

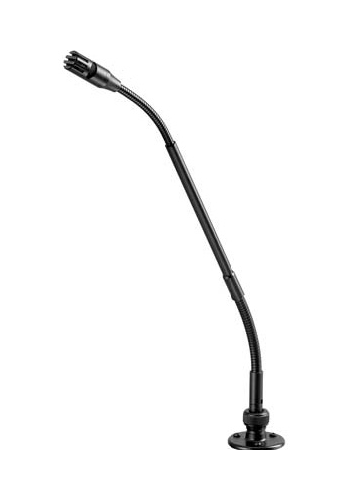

Electro-Voice PC-18/FL Gooseneck Microphone:

• Dual Capsule Design with four (4) polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid
• RF Shield provides superior RFI/GSM shielding
• Thread or flange mount
• Cable can exit from the side or through the bottom of the gooseneck
• Switchable high pass filter
• Consistent on-axis response
• Available in 12 or 18 inch versions
• Non-reflecting black finish
• Phantom powered back-electret condenser
• Packaged with a two-piece shock mount

• (2) Electro-Voice EVF-1152S 96 Loudspeakers
• (1) Electro-Voice TG7 Power Amplifier
• (1) TOA M-633D Digital Stereo Mixer
• (1) Electro-Voice PC-18/FL Gooseneck Microphone
• Your Choice of (1) Electro-Voice RE2 Wireless Microphone System:
• Electro-Voice Handheld Wireless System (RE2-N2)
• Electro-Voice Lavalier Wireless System (RE2-L21)
• (2) CBI MLN-3-PREP-M Patch Cables
• (1) CBI MLN-3-PREP-F Patch Cable
• (1) CBI MLN-25-PREP-F Microphone Cable
• (2) CBI SNN12-50 12G Speakon Cables
