The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight (8) models (four (4) powered and four (4) passive), including 12-inch and 15-inch two-way models and 15-inch and 18-inch subwoofers.
EV-engineered components, Signal Synchronized Transducers (SST) waveguide design provides precise coverage and superior sound quality at high SPLs. EV’s award-winning industrial design — with robust wood enclosures and durable EVCoat finish — ensures that EKX speakers look as great as they sound.

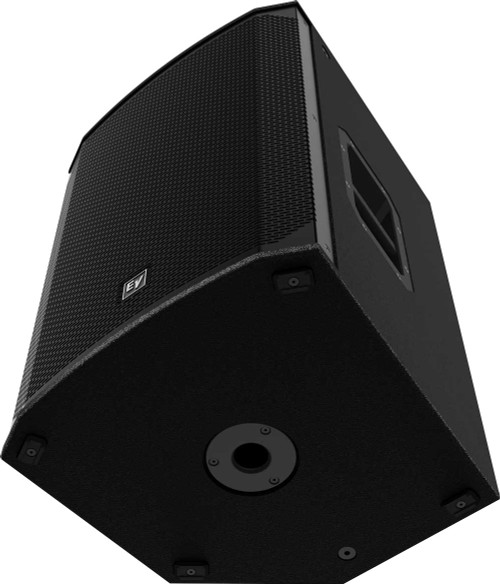

EKX-15 delivers up to 132 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (15-inch EVS-15M woofer, coupled with a DH-1M 1-inch titanium compression driver). EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.
| Frequency Response (-3 dB) | 75 Hz - 18 kHz |
|---|---|
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Axial Sensitivity | 96 dB |
| Maximum SPL | 132 dB |
| Recommended High-Pass Frequency | 50 Hz |
| Coverage (H x V) | 90˚ x 60˚ |
| Power Handling | 400W continuous, 1600W peak |
| LF Transducer | EVS-15M 381 mm (15 in) |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Crossover Frequency | 1.6 kHz |
| Nominal Impedance (Passive) | 8Ω |
| Minimum Impedance | 7.2Ω |
| Connectors | Dual NL4 |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (8) M10 threaded mounting points |
| Dimensions (H x W x D) | 27" (685 mm) x 17" (432 mm) x 16.9" (429 mm) |
| Net Weight | 51.2 lbs (23.2 kg) |
| Shipping Weight | 62.4 lbs (28.2 kg) |
