The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight (8) models (four (4) powered and four (4) passive), including 12-inch and 15-inch two-way models and 15-inch and 18-inch subwoofers.

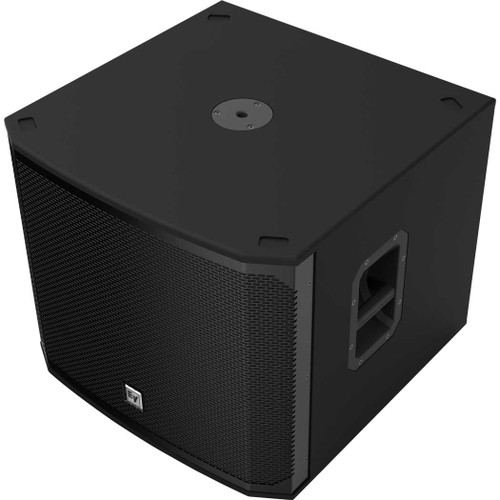

EKX-18S delivers up to 134 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (18-inch EVS-18C subwoofer). EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, aluminum pole-mounts, and all-metal handles.
| Frequency Response (-3 dB) | 40 Hz - 150 Hz |
|---|---|
| Frequency Range (-10 dB) | 35 Hz - 180 Hz |
| Axial Sensitivity | 96 dB |
| Maximum SPL | 134 dB |
| Recommended High-Pass Frequency | 30 Hz |
| Power Handling | 400W continuous, 1600W peak |
| LF Transducer | EVS-18C 457 mm (18 in) |
| Nominal Impedance (Passive) | 8Ω |
| Minimum Impedance | 7.0Ω |
| Connectors | Dual NL4 |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Dimensions (H x W x D) | 20" (520 mm) x 23.9" (606 mm) x 24" (612 mm) |
| Net Weight | 70 lbs (31.8 kg) |
| Shipping Weight | 88.4 lbs (40.1 kg) |
