The EKX-15P features high-efficiency Class-D power amplifiers (up to 1500W) with integrated QuickSmartDSP, and delivers up to 134 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (15-inch EVS-15M woofer, coupled with a DH-1M 1-inch titanium compression driver). The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by multiple onboard sensors) which ensures superior performance and reliability in demanding environmental conditions.

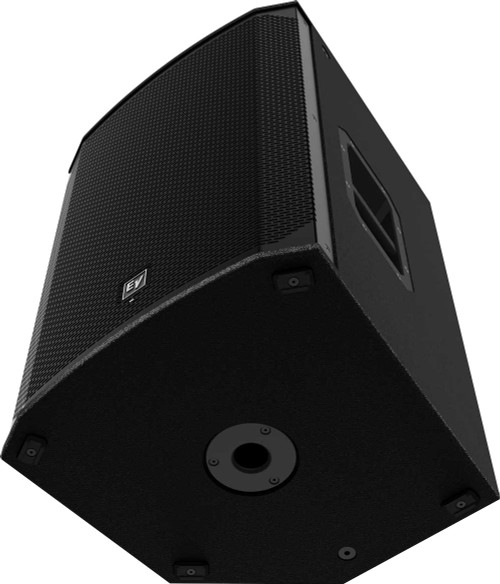

Powered full-range models allow easy setup via four (4) presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five (5) user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. EKX powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.
| Frequency Response (-3 dB) | 55 Hz - 18 kHz |
|---|---|
| Frequency Range (-10 dB) | 48 Hz - 20 kHz |
| Maximum SPL | 134 dB |
| Recommended High-Pass Frequency | 50 Hz |
| Coverage (H x V) | 90˚ x 60˚ |
| Power Rating | 1500W |
| LF Transducer | EVS-15M 381 mm (15 in) |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance (Passive) | 8Ω |
| Minimum Impedance | 7.2Ω |
| Connectors | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (8) M10 threaded mounting points |
| Dimensions (H x W x D) | 27" (685 mm) x 17" (432 mm) x 16.9" (429 mm) |
| Net Weight | 53.9 lbs (24.4 kg) |
| Shipping Weight | 65 lbs (29.5 kg) |
