The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, true cardioid presets, protection limiters, EQ mode, and a lock out mode that prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate limit.
EV’s FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection. True cardioid DSP preset delivers true cardioid response across all frequencies.

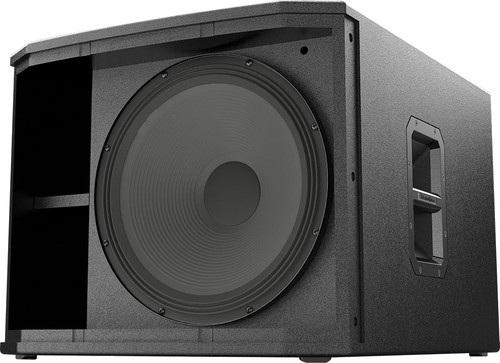

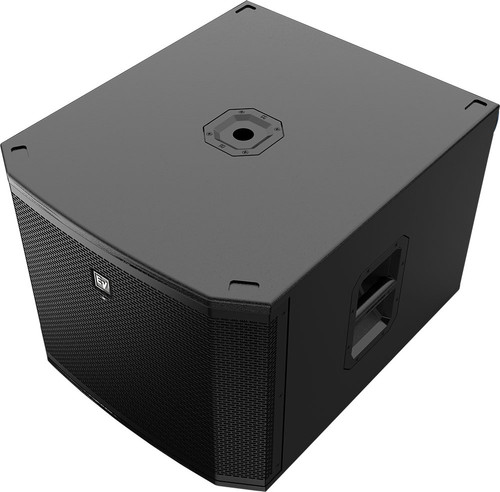

The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat. Subwoofers include professional-grade castors, and combination pole mount receptacle for threaded and unthreaded loudspeaker poles.
ETX combines EV-engineered intelligent DSP, high-powered amplifiers and high-efficiency transducers to deliver that legendary EV sound and performance.
| Frequency Response (-3 dB) | 37 Hz – 150 Hz |
|---|---|
| Frequency Range (-10 dB) | 32 Hz – 180 Hz |
| Maximum SPL | 134 dB peak |
| Power Rating | 1800W |
| LF Transducer | DVX3159A 15" (380 mm) |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz,150 Hz |
| Connectors | (2) XLR/TRS Combo Jack and (2) XLR link Output |
| Enclosure | 18 mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8A3 |
| Dimensions (H x W x D) | 19" (471 mm) x 23" (576 mm) x 32" (825 mm) |
| Dimensions (H x W x D) without casters | 19" (471 mm) x 23" (576 mm) x 27" (692 mm) |
| Net Weight | 91.9 lbs (41.7 kg) |
| Shipping Weight | 103.2 lbs (46.8 kg) |
