Electro-Voice EVID-EC6.2 6.5" 2-Way Coaxial 70/100V In-Ceiling Speakers - White Pair

Electro-Voice EVID-EC6.2 6.5" 2-Way In-Ceiling Speakers - White Pair

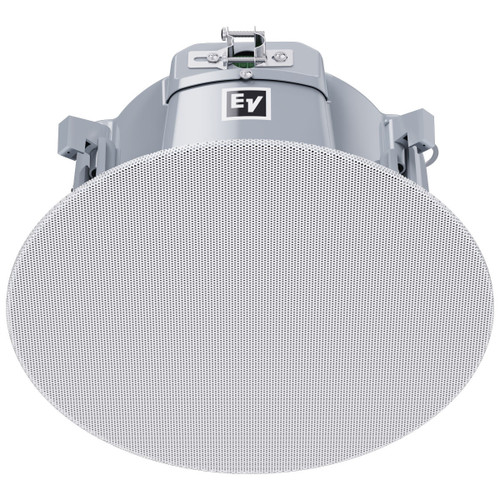

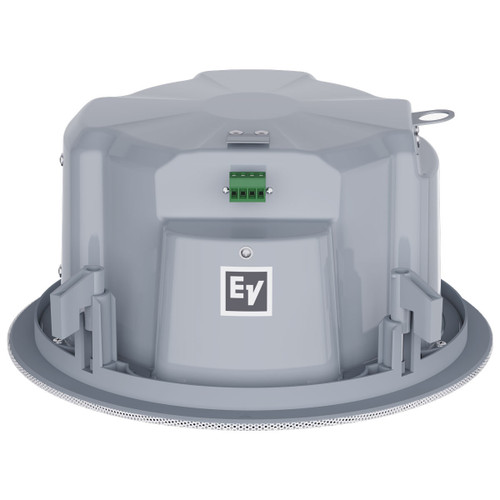

The Electro-Voice EVID-EC6.2 is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. The EVID-EC6.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 sq. mm of wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC6.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Includes tile bridge and C-ring for easy installation
• UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified

Data Sheet

Manual

• (2) Electro-Voice EVID-EC6.2 Ceiling Speakers
• (2) Loudspeaker Connection Covers - Installed
• (2) Magnetic Grilles
• (4) Ceiling Tile Rails
• (2) C-Rings
• (4) Screws
• (1) Cutout Template
• (2) Paint Covers
• Quick Installation Guide
