Electro-Voice ID30CT Compression Driver (Discontinued)
By Electro-Voice

Electro-Voice ID30CT Compression Driver (Discontinued)

Write a Review
Part #:
F.01U.120.420
Model #:
ID30CT
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The ID30CT is a heavy-duty compression driver for use in medium-power public address installations. The drivers employ rugged phenolic diaphragms, 1.5" diameter voice coils and “rim centered” ferrite magnet structures for long life.

Description

The ID30CT is heavy-duty compression driver for use in medium-power public address installations. The drivers employ rugged phenolic diaphragms, 1.5-inch diameter voice coils and “rim centered” ferrite magnet structures for long life and reliability under extreme operating conditions.

A hinged cycolac rear housing for easy access and connection to a sound system, via a BX conduit connector, is provided together with a plug-in, field-replaceable diaphragm assembly.

The transformer model (ID30CT) includes connections for 25-V and 70-V distributed systems and a screwdriver operated power-tap select switch. The exterior parts are injection-molded from polycarbonate, and all metal parts have been tropicalized for resistance to high humidity and fungus.

Ideal for both indoor and outdoor applications, these drivers are well suited for any installation requiring rugged, medium-power performance.

Features
  • 30-watt heavy-duty driver for reentrant horns
  • Designed for use in applications that require continuous, high-level acoustic output such as high-level public address
  • Rugged, weather resistant phenolic diaphragms, indoor/outdoor packaging
  • 1-inch screw-on exit
  • 25/70.7-volt transformer with 1.25-, 2.5-, 5-, 10-, 15- and 30-watt taps

Specifications
Frequency Response 300-4,000 Hz, ±5 dB
Power Handling, 8 hours, 6-dB crest factor 30 watts (500- to 5,000-Hz pink noise)
Construction Rugged weatherproof finish for outdoor use
Recommended Horns Cobreflex IIB, PH, 2WP, SMH, SH
Magnet Material Strontium ferrite
Flux Density 1.00 Tesla
Voice-Coil Diameter 1.5" (381 mm)
Dimensions (Dia x H) 4.2" (106 mm) x 5.2" (132 mm)
Magnet Weight 0.63 lbs (0.28 kg)
Net Weight 4.5" (2.1 kg)
Shipping Weight 5.1" (2.3 kg)

DOCUMENTS

Related Products

Sold Out

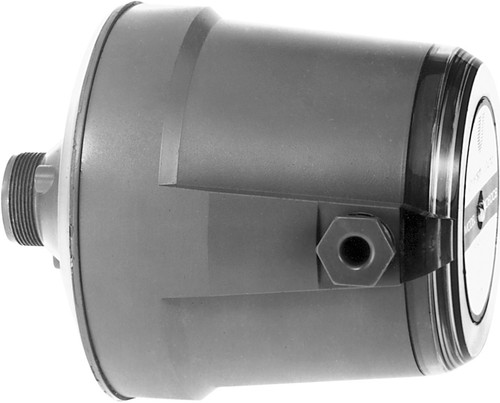

Electro-Voice ID60DT Compression Driver (Discontinued)
