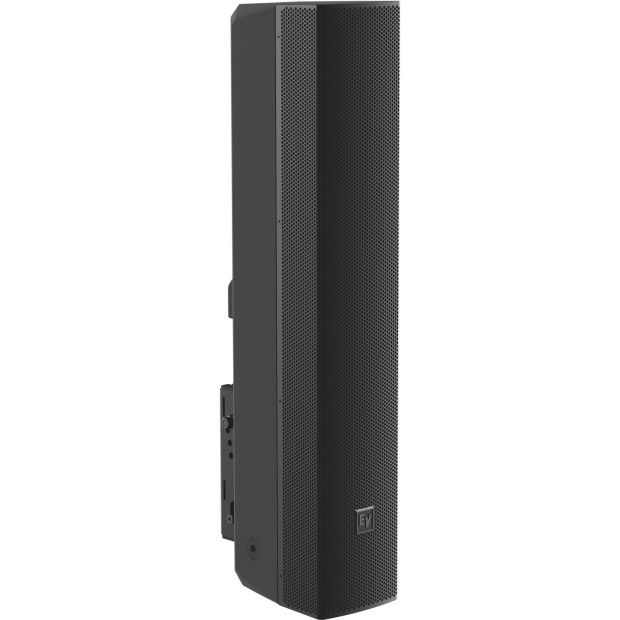

Electro-Voice LRC-1060-B 22.8-Inch Weatherized Column Loudspeaker
The LRC-1060-B is a premium 200W passive line radiator column loudspeaker engineered for high-performance sound reinforcement in modern installations. Equipped with six 2.5" full-range drivers and two passive radiators, it delivers exceptional clarity and extended low-frequency response from 75 Hz to 15 kHz. With 130° horizontal and 20° vertical symmetrical coverage, the LRC-1060-B ensures even, intelligible sound across large and acoustically challenging spaces.
Designed for both 70V/100V distributed systems and 8-ohm low-impedance operation, the LRC-1060-B includes a built-in transformer featuring Electro-Voice's Automatic Saturation Compensation (ASC) technology. This innovative circuit preserves low-frequency response and safeguards electronics from overload, maintaining consistent audio quality regardless of system configuration or speaker quantity.
Housed in a sleek black weatherized enclosure, the LRC-1060-B is built for reliable performance indoors or outdoors. Its included multi-angle mounting bracket allows flexible wall positioning, pan/tilt adjustment, and precise aiming. EN54-24 certification and compatibility with Dynacord DSP and SONICUE system software ensure seamless integration into professional sound systems for houses of worship, transportation hubs, auditoriums, and public spaces.
- Features
Features
- 200W 70V/100V weatherized passive line radiator loudspeaker in black
- Six 2.5" (63.5 mm) full-range drivers with two passive radiators
- 130° horizontal x 20° vertical symmetrical coverage for wide, even sound
- Built-in 70V/100V transformer with 8-ohm bypass for flexible configurations
- Automatic Saturation Compensation (ASC) ensures a clear, consistent low-frequency response
- Extended frequency range from 75 Hz to 15 kHz with 122 dB peak SPL
- Durable, weather-resistant construction for indoor and outdoor use
- Sleek, slim-profile column design blends seamlessly into any environment
- Includes precision multi-angle wall mounting bracket for pan, tilt, and close-wall mounting
- EN54-24 certified and supported by EASE, EASE Focus 3, PREVIEW, and SONICUE software
- Ideal for houses of worship, transport terminals, public spaces, and performance venues
- Specification
Frequency Range (-10 dB) 70 Hz - 15000 Hz Maximum SPL 122 dB Axial Sensitivity 90 dB SPL 1W/1m Coverage Angle (H x V) 130° x 20° Power Handling 100W (continuous), 200W (program) Peak Input Voltage (Lo-Z) 80V Nominal Impedance 8Ω Minimum Impedance 8.5Ω at 400 Hz Recommended High-Pass ≥70 Hz Butterworth, 24 dB/oct Transformer Taps 70V: 60W; 30W; 15W; 8W; 4W
100V: 60W; 30W; 15W; 8WTransducer (6) 2.5" active drivers
(2) 2.5" passive radiatorsConnector Type 4-pin Euroblock, Input + Pass through Wire Size 12 AWG (maximum) Suspension Points (2) M8 Mounting SwifTilt Multi-angle Tilt + Pan Bracket Maximum Horizontal Pan Angle +/- 80° (at all down-tilt angles) Vertical Down-Tilt Angles 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° IP Rating FW (outdoor full exposure), IP56c Color RAL 9004 Signal Black Included Hardware Tilt bracket, Pan bracket, Gland nut weather cover, Dual-ended Allen/TR20 key, M8 x 20 mm eyebolt (pre-installed) Dimensions (H x W x D) 22.83" (580 mm) x 4.13" (105 mm) x 5.67" (144 mm) Weight 9.70 lbs (4.40 kg) Shipping Weight 16.31 lbs (7.4 kg) - Documents
Documents
- In The Box
In The Box
- (1) LRC-1060 Black Column Speaker
- (1) SwifTilt Pan-Tilt Mounting Bracket and Fixings
- (1) Weather Cover for Dual Gland-Nut
- (1) Gland Nut Plug
- (1) Dual-Ended Allen Key
- (1) M8 Eyebolt (Pre-Installed)
- (1) Warranty Card
- Installation Manual
