The Electro-Voice LRC-2100-B 37.4" 2-way passive column loudspeaker in black delivers 600W of high-output sound with selectable 25°/45° vertical coverage, 7.5° downward tilt, and IP55 weatherized protection for indoor and outdoor installations.

Description

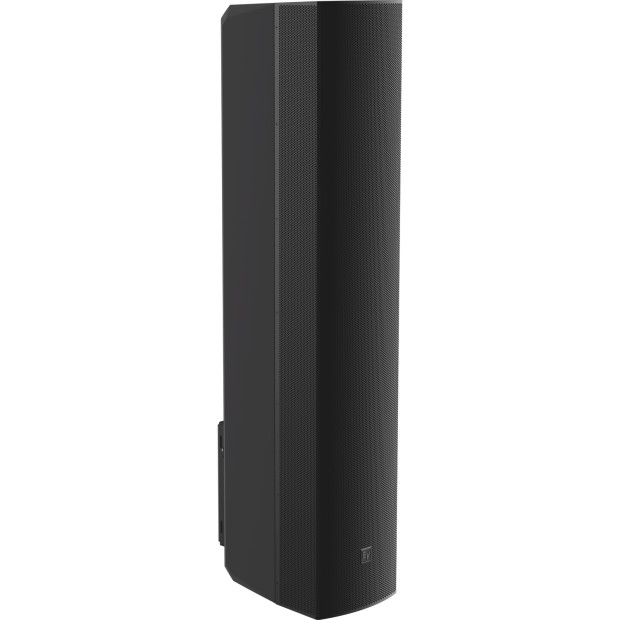

Electro-Voice LRC-2100-B 37.4-Inch 2-Way Weatherized Column Loudspeaker

The LRC-2100-B 37.4" 2-way passive line radiator column loudspeaker combines high-power performance, precise pattern control, and a sleek black finish for professional installation environments. Equipped with twelve 2.5-inch mid-high drivers paired with proprietary PaSS phase plugs, the LRC-2100-B delivers a tight vertical pattern with an extended low-frequency response, ensuring clear and intelligible audio. Users can select narrow (25°) or wide (45°) vertical coverage with a 7.5° downward bias to focus sound energy toward the audience.

Designed for reliability in demanding environments, the LRC-2100-B is IP55 weather-protected, making it suitable for both outdoor and indoor exposure. Its versatile SwifTilt pan-tilt mounting bracket allows installation close to walls, angled downward or upward, or suspended from rear insert points, providing maximum flexibility. The loudspeaker's neutral black finish integrates seamlessly into modern architectural settings, making it ideal for public venues, houses of worship, and transport hubs.

Optimized for system integration, the LRC-2100-B works with Dynacord DSP matrix processors and amplifiers, which provide dedicated presets for optimal balance, output, and protection. Additionally, it is fully supported by EASE, EASE Focus3, PREVIEW Loudspeaker Software, and SONICUE System Software, ensuring accurate modeling and performance planning for any installation.

Features

  • 37.4" (1 m) passive line radiator column loudspeaker
  • Twelve 2.5" mid-high drivers with PaSS phase plugs for clear audio and LF extension
  • 2-way design delivering 600W program power handling
  • Selectable vertical coverage: 25° (narrow)/45° (wide) with 7.5° downward tilt
  • IP55 weatherized enclosure for indoor/outdoor use
  • SwifTilt pan-tilt mounting bracket for versatile wall or suspension installation
  • Rear insert points for suspension and precise aiming
  • Optimized for use with Dynacord DSP matrix processors and amplifiers
  • Supported by EASE, EASE Focus3, PREVIEW, and SONICUE software for design and tuning
  • Neutral black finish blends into architectural and public spaces

Specifications

Frequency Range (-10 dB) 45 - 16000 Hz
Maximum SPL 128 dB narrow, 126 dB wide
Axial Sensitivity 91.5 dB SPL 1W/1m narrow
90 dB SPL 1W/1m wide
Acoustic Down-Tilt -7.5°
Coverage Angle (H x V) 180° x 25° (narrow)/180° x 45° (wide)
Power Handling 300W (continuous), 600W (program)
Peak Input Voltage (Lo-Z) 130V
Nominal Impedance 8Ω
Minimum Impedance 6.4Ω at 280 Hz
Recommended High-Pass 50 Hz Butterworth, 24 dB/oct
Transducer (2) 6.5" bass drivers
(12) 2.5" mid-high drivers
Connector Type 4-pin Euroblock, Input + Pass through
Suspension Points (6) M8 x 20 mm
Mounting SwifTilt Multi-angle Tilt + Pan Bracket
Maximum Horizontal Pan Angle +/- 80° at all down-tilt angles
Vertical Down-Tilt Angles 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
IP Rating IP55
Color RAL 9004 Signal Black
Included Hardware Tilt bracket, Pan bracket, Gland nut weather cover, Dual-ended Allen key, M8 x 20 mm eyebolt (pre-installed)
Dimensions (H x W x D) 37.4" (950 mm) x 4.33" (110 mm) x 5.91" (150 mm)
Weight 33 lbs (15.7 kg)
Shipping Weight 35.27 lbs (21.4 kg)

DOCUMENTS

In The Box

  • (1) LRC-2100 Black Column Speaker
  • (1) SwifTilt Pan-Tilt Mounting Bracket and Fixings
  • (1) Weather Cover for Dual Gland-Nut
  • (1) Gland Nut Plug
  • (1) Dual-Ended Allen Key
  • (1) M8 Eyebolt (Pre-Installed)
  • (1) Warranty Card
  • Installation Manual
