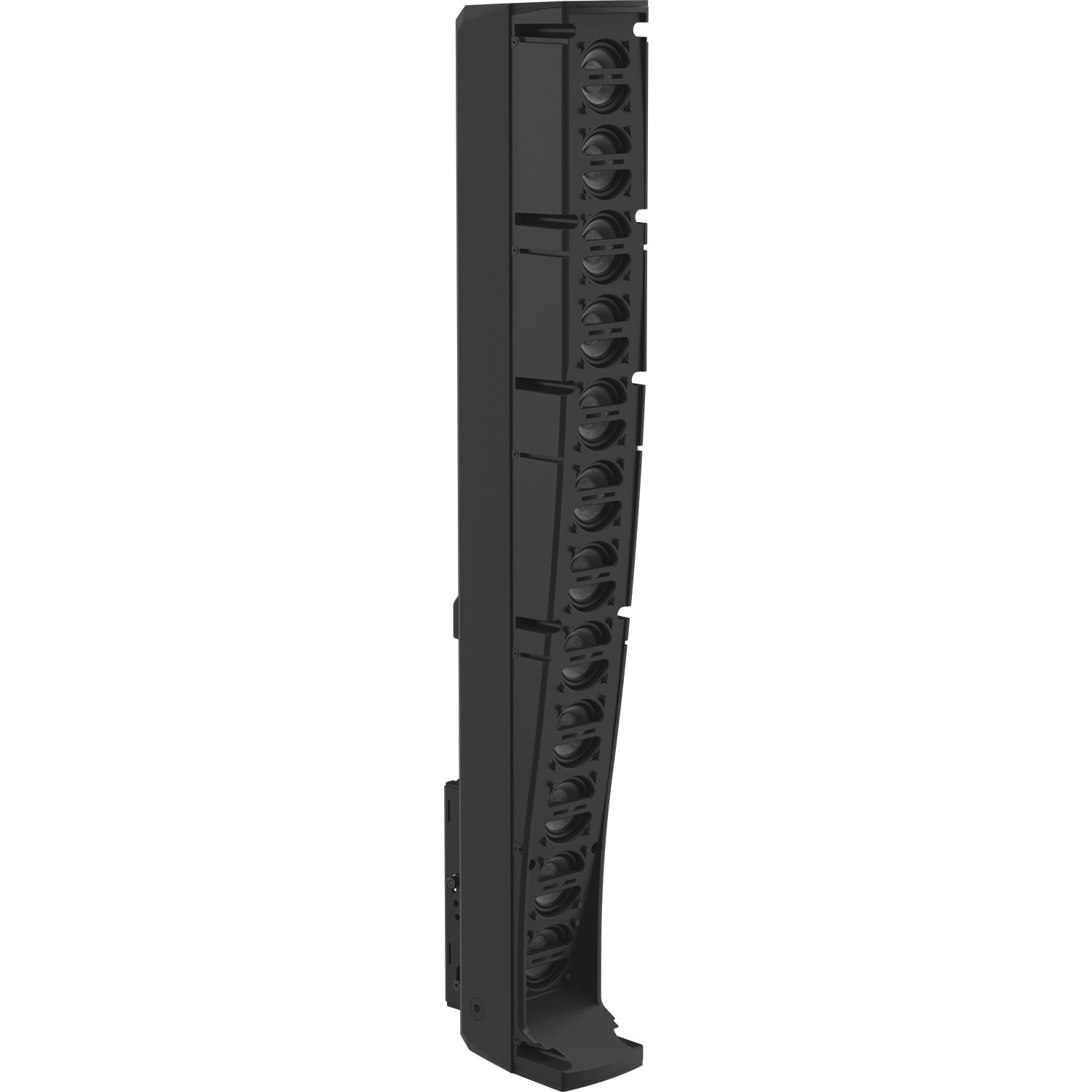

Electro-Voice LRC-1100-B 37.4-Inch Weatherized Column Loudspeaker
The LRC-1100-B 37.4" passive line radiator column loudspeaker combines elegant design with outstanding performance for professional installations. Outfitted with twelve 2.5-inch full-range drivers and proprietary PaSS phase plugs, it ensures powerful output and exceptional speech intelligibility. Users can select between narrow (20°) and wide (40°) vertical patterns, with a subtle 5° downward bias to direct sound precisely toward the listening area.
This versatile loudspeaker is engineered for both indoor and outdoor applications, featuring a robust black weather-resistant enclosure with an IP56c rating and EN54-24 Type B certification for all-weather reliability. Its integrated 70V/100V transformer with Automatic Saturation Compensation (ASC) technology preserves low-frequency response and protects amplifiers, ensuring consistent audio quality across multiple speakers.
The LRC-1100-B also includes the innovative SwifTilt pan-tilt mounting bracket, allowing flexible installation, flush to the wall, tilted downward, or suspended when needed. The sleek black finish blends effortlessly into modern architectural environments, making it ideal for houses of worship, transport terminals, auditoriums, and outdoor venues requiring superior clarity and coverage.
- Features
Features
- 37.4" (1 m) passive line radiator column loudspeaker
- Twelve 2.5" full-range drivers with PaSS phase plugs
- Selectable 20°/40° vertical coverage with 5° downward tilt
- Integrated 70V/100V transformer with ASC technology
- Weather-resistant black housing with IP56c rating
- EN54-24 Type B certified for safety and reliability
- SwifTilt pan-tilt mounting bracket for versatile installation
- Rear suspension points for flexible mounting options
- Optimized for use with Dynacord DSPs and amplifiers
- Designed to blend seamlessly into modern black or neutral decor
- Specification
Frequency Range (-10 dB) 65 Hz - 14000 Hz Maximum SPL 126 dB narrow, 123 dB wide Axial Sensitivity 93 dB SPL 1W/1m narrow
91 dB SPL 1W/1m wideAcoustic Down-Tilt 5° Coverage Angle (H x V) 130° x 20° (narrow)/40° (wide) Power Handling 200W (continuous), 400W (program) Peak Input Voltage (Lo-Z) 115V Nominal Impedance 8Ω Minimum Impedance 7.1Ω at 8 kHz Recommended High-Pass ≥70 Hz Butterworth, 24 dB/oct Transformer Taps 70V: 120W; 60W; 30W; 15W; 8W
100V: 120W; 60W; 30W; 15WTransducer (12) 2.5" active drivers
(3) 2.5" passive radiators and 6.5" passive radiatorsConnector Type 4-pin Euroblock, Input + Pass through Wire Size 12 AWG (maximum) Suspension Points (2) M8 Mounting SwifTilt Multi-angle Tilt + Pan Bracket Maximum Horizontal Pan Angle +/- 80° at all down-tilt angles Vertical Down-Tilt Angles 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° IP Rating FW (outdoor full exposure), IP56c Color RAL 9004 Signal Black Included Hardware Tilt bracket, Pan bracket, Gland nut weather cover, Dual-ended Allen/TR20 key, M8 x 20 mm eyebolt (pre-installed) Dimensions (H x W x D) 37.4" (950 mm) x 4.33" (110 mm) x 5.91" (150 mm) Weight 16.8 lbs (7.6 kg) Shipping Weight 27.78 lbs (12.6 kg) - Documents
Documents
- In The Box
In The Box
- (1) LRC-1100 Black Column Speaker
- (1) SwifTilt Pan-Tilt Mounting Bracket and Fixings
- (1) Weather Cover for Dual Gland-Nut
- (1) Gland Nut Plug
- (1) Dual-Ended Allen Key
- (1) M8 Eyebolt (Pre-Installed)
- (1) Warranty Card
- Installation Manual
