Fitness Center Sound System for Mixed Martial Arts, Boxing and Karate Gyms with Bose Professional Speakers and Alesis Bluetooth Mixer

Part #:
FTSS-2AMU108MMULTIMIX10
Model #:
FTSS-2AMU108MMULTIMIX10
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This Bose fitness center sound system features two ArenaMatch Utility speakers, a dual 10" subwoofer, a Bluetooth audio mixer, a Tascam CD and media player, and a Samson wireless fitness headset microphone. Designed for mixed martial arts (MMA) gyms, kickboxing studios, wrestling facilities, self-defense classes, and other fitness centers, this system delivers powerful music reproduction, deep bass, and clear instructor announcements with flexible Bluetooth, CD, USB, SD, and AM/FM audio playback.

Description

Inside the Design

Bring powerful, high-quality sound to mixed martial arts (MMA) gyms, boxing facilities, kickboxing studios, karate schools, wrestling centers, and other fitness environments with this professionally designed Bose fitness center sound system. Featuring two Bose ArenaMatch Utility AMU108 8" loudspeakers and a Bose MB210-WR dual 10" subwoofer, this system delivers clear instructor announcements, dynamic music reproduction, and impactful bass for high-energy workouts and training sessions. The AMU108 loudspeakers feature a wide 90° x 60° coverage pattern for distributing sound throughout the training area, while their durable IP55 weather-resistant construction makes them well-suited for demanding fitness environments. The compact MB210-WR subwoofer extends low-frequency response down to 37 Hz, adding depth and impact to workout music.

At the center of the system, the Alesis MultiMix 10 Wireless Bluetooth rackmount mixer provides flexible control over music, microphones, and additional audio sources. Built-in Bluetooth connectivity allows instructors and facility staff to stream music directly from compatible smartphones, tablets, and other wireless devices. The Dynacord L1300FD 2-channel power amplifier delivers professional amplification with integrated FIR Drive DSP processing for speaker optimization, equalization, crossover control, and limiting. The amplifier can be configured for mono playback, powering both Bose AMU108 loudspeakers together on one channel and the MB210-WR subwoofer on the second channel. With proper speaker wiring and DSP configuration, all three speakers reproduce the same music, while the subwoofer provides dedicated low-frequency reinforcement. This configuration is suitable for applications where independent stereo speaker operation is not required, although maximum bass output is limited by the available amplifier power.

For versatile music playback, the Tascam CD-400U CD and media player provides multiple audio sources, including CDs, USB flash drives, SD cards, Bluetooth streaming, and an integrated AM/FM radio receiver. This allows instructors to quickly switch between workout playlists, prerecorded music, and radio programming without relying on a single mobile device. The included Samson AirLine 99 wireless fitness headset system features a lightweight, sweat-resistant Qe microphone with an AH9 micro transmitter that mounts directly to the headset, eliminating the need for a bodypack or connecting cable. With up to 300 feet of line-of-sight wireless range and up to eight hours of rechargeable battery life, instructors can move freely throughout the training area while maintaining clear communication with participants during demonstrations, workouts, and group fitness classes.

Designed for organized installation and convenient daily operation, this fitness center sound system includes a Middle Atlantic BRK10 10U equipment rack, Gator GRW-DRW2 2U rack drawer, and ART PS8-II professional power sequencer. The rack provides a centralized location for the amplifier, mixer, media player, and wireless microphone receiver, while the rack drawer offers convenient storage for microphones, cables, and accessories. The ART power sequencer helps manage equipment startup and shutdown, reducing unwanted power transients. Complete with professional audio interconnects and speaker cables, this versatile Bose sound system provides an integrated audio solution for MMA training centers, boxing gyms, martial arts schools, and other fitness facilities that require dependable music reinforcement and clear instructor communication. Proper amplifier programming, speaker cable termination, and installation are required for optimal system performance.

Sound System Features:

  • Professionally selected Bose fitness center sound system designed for MMA gyms, boxing facilities, kickboxing studios, karate schools, wrestling centers, self-defense classes, and other fitness environments
  • Two Bose ArenaMatch Utility AMU108 8" loudspeakers provide powerful, high-quality foreground music and excellent vocal clarity for instructor announcements and training sessions
  • Wide 90° x 60° constant-directivity coverage pattern helps distribute consistent, intelligible sound throughout the training area
  • Durable IP55-rated Bose loudspeakers feature weather-resistant construction, protective stainless-steel grilles, and included U-brackets for versatile mounting
  • The Bose MB210-WR subwoofer features two 10" high-excursion woofers with low-frequency extension down to 37 Hz for deep, impactful bass reproduction
  • The Dynacord L1300FD 2-channel power amplifier features integrated FIR Drive DSP processing for professional equalization, crossover filtering, limiting, and speaker optimization
  • The amplifier supports a mono configuration with both AMU108 speakers connected to one channel and the MB210-WR subwoofer connected to the other, allowing all three speakers to reproduce the same music with appropriate processing and wiring
  • The Alesis MultiMix 10 Wireless rackmount mixer features Bluetooth audio streaming, convenient microphone and line-level inputs, and flexible control over multiple audio sources
  • The Tascam CD-400U provides CD, USB, SD card, Bluetooth, and AM/FM radio playback for workout playlists, fitness classes, and everyday music programming
  • The Samson AirLine 99 wireless fitness headset system features a lightweight, sweat-resistant Qe microphone and bodypack-free AH9 transmitter for unrestricted instructor movement
  • Up to 300 feet of line-of-sight wireless microphone range and eight hours of rechargeable battery life support extended workouts and group fitness instruction
  • The Samson CR99 True RF Diversity receiver provides automatic frequency scanning and infrared synchronization for convenient wireless setup
  • The ART PS8-II professional power sequencer provides controlled equipment startup and shutdown with surge protection and EMI/RFI filtering
  • The Middle Atlantic BRK10 10U equipment rack and Gator 2U rack drawer provide organized equipment installation and convenient accessory storage

About the System Components

Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeakers

The Bose ArenaMatch Utility AMU108 is a high-performance 8" two-way loudspeaker designed to deliver exceptional vocal clarity, powerful foreground music, and consistent sound coverage in demanding commercial environments. Featuring a Bose LF8 high-excursion woofer and an EMB2S extended high-frequency compression driver, the AMU108 provides detailed audio reproduction with strong midrange performance and excellent speech intelligibility. Its 90° x 60° constant-directivity horn distributes sound across the listening area, making it ideal for MMA training centers, boxing gyms, martial arts studios, and fitness facilities where music and instructor announcements must remain clear and engaging.

Built for durability, the AMU108 features an IP55 weather-resistant enclosure with a three-layer stainless-steel grille, water-resistant woofer treatment, and a protective exterior coating. The rotatable high-frequency horn allows horizontal or vertical mounting, while the included stainless-steel U-bracket provides flexible installation options. An integrated 70V/100V transformer with an 8-ohm bypass supports different amplification configurations. In this system, the two AMU108 loudspeakers can be operated together in parallel at 8 ohms each, producing a 4-ohm combined load on one amplifier channel. This arrangement allows both speakers to reproduce the same mono music and announcements while providing distributed coverage throughout the facility.

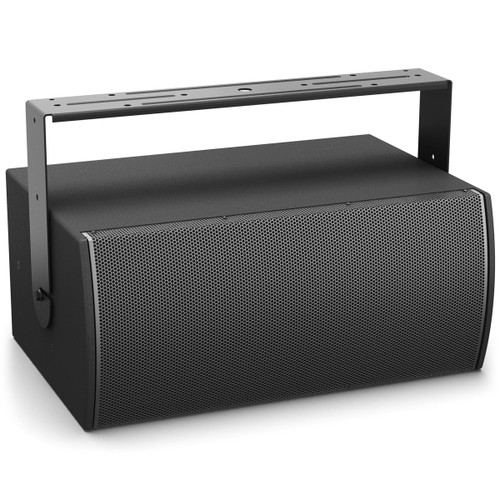

Bose MB210-WR Outdoor-Rated Dual 10" Compact Subwoofer

The Bose MB210-WR is a compact, high-performance subwoofer engineered to deliver powerful low-frequency reinforcement for foreground music and commercial sound systems. Featuring two 10" high-excursion woofers, the MB210-WR extends bass response down to 37 Hz, adding depth and energy to workout playlists, training sessions, and other high-impact fitness activities. Its 500W long-term power handling and compact enclosure make it a versatile choice for applications requiring substantial bass performance without the size of a traditional large-format subwoofer.

The MB210-WR features a durable exterior-grade plywood enclosure, corrosion-resistant stainless-steel grille, and weather-resistant components with an IP55 rating. An included U-bracket supports convenient wall or ceiling mounting. Designed to complement Bose ArenaMatch Utility loudspeakers, the subwoofer helps create a more complete music experience by reproducing lower frequencies that smaller full-range speakers cannot deliver as effectively. In this fitness sound system, the MB210-WR operates on a dedicated amplifier channel with appropriate low-pass crossover, equalization, infrasonic protection, and limiting. The included amplifier provides useful bass reinforcement, although the subwoofer's full output capability would require additional amplifier headroom.

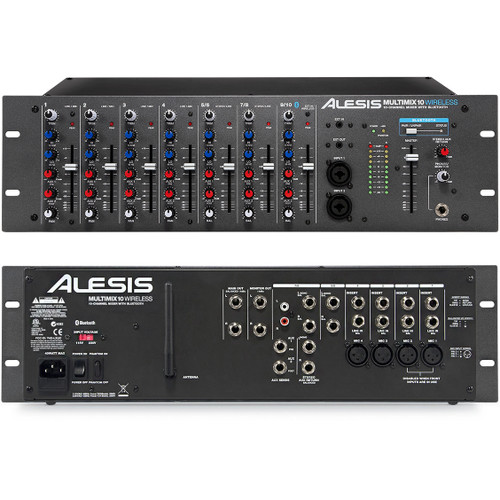

Alesis MultiMix 10 Wireless Bluetooth Rackmount Mixer

The Alesis MultiMix 10 Wireless is a versatile 10-channel rackmount audio mixer designed for professional sound systems requiring convenient microphone control, multiple audio inputs, and wireless music streaming. Featuring built-in Bluetooth connectivity with simple single-button pairing, the mixer allows instructors and facility personnel to stream music directly from compatible smartphones, tablets, and other Bluetooth-enabled devices. Four high-gain microphone/line preamps provide flexible connectivity for wireless microphone receivers and additional audio equipment, while the convenient front-panel connections simplify everyday operation.

Individual channel EQ controls allow users to adjust the tonal balance of microphones and music sources, while auxiliary sends and stereo return connections support additional audio routing requirements. The mixer's compact 3U rackmount design allows it to integrate into the included Middle Atlantic equipment rack. For MMA gyms and fitness centers, the MultiMix 10 Wireless provides a centralized audio control solution, allowing instructors to manage music volume, adjust microphone levels, and transition between different audio sources during training sessions.

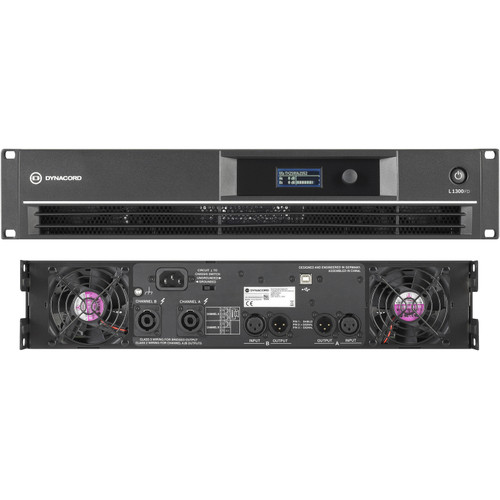

Dynacord L1300FD 2-Channel DSP Power Amplifier

The Dynacord L1300FD is a professional 2-channel power amplifier designed to deliver reliable amplification and advanced loudspeaker processing for commercial and live sound applications. Featuring a Class AB output stage with up to 650W per channel at 4 ohms, the L1300FD incorporates FIR Drive technology for precise digital signal processing, equalization, crossover filtering, delay, and output limiting. Its integrated DSP capabilities allow installers to optimize loudspeaker performance according to the acoustic characteristics of the room and the requirements of the connected speakers.

For this Bose fitness center sound system, the L1300FD can be configured to power both AMU108 loudspeakers together on one channel and the MB210-WR subwoofer on the second channel. With the two AMU108 speakers connected in parallel using their 8-ohm bypass settings, the first amplifier channel operates into a 4-ohm load, while the subwoofer presents an 8-ohm load on the second channel. A common mono music signal can be routed to both amplifier channels, with high-pass filtering applied to the main speakers and low-pass filtering applied to the subwoofer. Proper crossover settings, output limiting, and speaker wiring allow the system to deliver coordinated music and bass reproduction from all three speakers. This arrangement does not provide independent stereo operation or the subwoofer's maximum rated output, but it allows the included amplifier to support the complete speaker configuration without requiring an additional amplifier.

Tascam CD-400U CD and Media Player with AM/FM Receiver and Bluetooth

The Tascam CD-400U is a professional rackmount media player designed to provide flexible and reliable music playback for commercial audio systems. Supporting CD, USB flash drive, SD card, Bluetooth, and AM/FM radio playback, the CD-400U gives fitness instructors and facility managers convenient access to music from a variety of sources. Bluetooth connectivity allows compatible smartphones and tablets to stream workout playlists wirelessly, while the CD, USB, and SD playback options provide dependable alternatives for prerecorded music and class programming.

The CD-400U features balanced XLR and unbalanced RCA outputs for integration with professional audio mixers, as well as an auxiliary input for additional audio devices. Its Power-on Play function allows automatic playback from supported media when the unit is powered on, while convenient playback controls and an included wireless remote simplify daily operation. The compact 1U rackmount design fits neatly into the system's equipment rack. Whether providing high-energy music for boxing classes, background music between sessions, or prerecorded audio for structured workout programs, the CD-400U offers a versatile playback solution for fitness facilities.

Samson AirLine 99 Wireless Fitness Headset System with Qe Microphone

The Samson AirLine 99 wireless fitness headset system is designed specifically for active instructors and performers who require dependable wireless communication without restrictive bodypacks or microphone cables. Featuring the lightweight Qe fitness headset and AH9 micro transmitter, the system provides a comfortable, secure microphone solution for high-energy fitness instruction. The AH9 transmitter mounts directly to the headset, eliminating the need for a separate beltpack and allowing instructors to demonstrate exercises, move throughout the training area, and lead classes without being restricted by microphone cables.

The water- and sweat-resistant Qe condenser microphone delivers clear vocal reproduction during demanding workouts, while the rechargeable lithium-ion transmitter provides up to eight hours of operation. With an operating range of up to 300 feet under line-of-sight conditions, the system offers freedom of movement for MMA instruction, kickboxing, cardio classes, and group fitness activities. The included CR99 True RF Diversity receiver features automatic frequency scanning, infrared transmitter synchronization, and a backlit LCD displaying important wireless system information. Balanced XLR and 1/4" audio outputs allow convenient integration with the Alesis MultiMix 10 mixer, providing instructors with reliable hands-free communication.

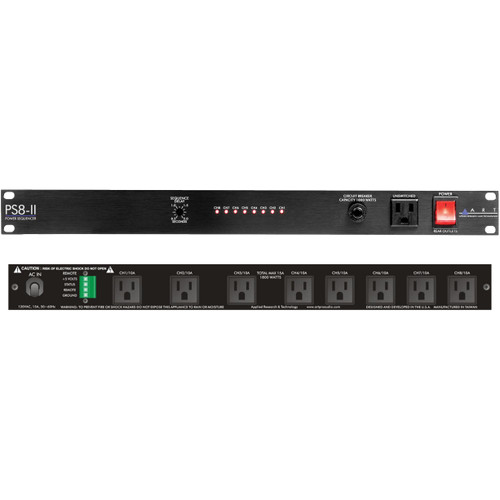

ART PS8-II Professional Power Sequencer

The ART PS8-II professional power sequencer provides convenient power management for rackmounted audio equipment, helping protect connected components and simplify system startup and shutdown. Featuring eight individually sequenced outlets with adjustable delay times, the PS8-II powers equipment on and off in a controlled order to help reduce unwanted pops and other power transients. Integrated surge and spike protection, EMI/RFI filtering, and front-panel status indicators provide additional convenience for everyday operation. A rear-panel remote control connection allows compatible external control, making the PS8-II a practical addition to fitness center audio installations.

Features

Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeakers with 90° x 60° Coverage

  • High-performance 8" two-way loudspeaker designed for clear voice reproduction and powerful foreground music
  • 90° x 60° constant-directivity horn provides consistent sound coverage throughout the listening area
  • Rotatable high-frequency horn supports horizontal or vertical installation
  • IP55 weather-rated enclosure with stainless-steel grille, water-resistant woofer coating, and durable exterior finish
  • 8" low-frequency woofer with 2" long-excursion voice coil delivers strong midrange and low-frequency performance
  • High-frequency compression driver provides excellent speech intelligibility and detailed music reproduction
  • 80 Hz to 18 kHz frequency range and up to 121 dB maximum peak SPL
  • Integrated 70V/100V transformer with selectable taps and 8-ohm bypass
  • Passive crossover with optimized filtering for consistent frequency and polar response
  • Includes stainless-steel U-bracket for secure wall or ceiling mounting

Bose MB210-WR Outdoor-Rated 10" Compact Subwoofer

  • Dual 10" high-excursion woofers provide powerful bass reinforcement for high-energy music playback
  • Low-frequency extension down to 37 Hz delivers deep, impactful bass
  • 500W long-term power handling for reliable high-output performance
  • 123 dB maximum continuous SPL and 129 dB peak SPL
  • Compact exterior-grade plywood enclosure designed for commercial installations
  • IP55 weather-resistant construction with stainless-steel grille and protective exterior coating
  • Water-resistant woofer coating and protected input connections support demanding environments
  • Included U-bracket provides flexible wall or ceiling mounting options
  • Designed to complement Bose ArenaMatch Utility loudspeakers for extended low-frequency response
  • Requires appropriate amplifier power and DSP crossover, filtering, and limiting settings

Alesis MultiMix 10 Wireless Bluetooth Rackmount Mixer

  • 10-channel rackmount mixer with integrated Bluetooth wireless audio streaming
  • Dedicated stereo Bluetooth channel with simple single-button pairing
  • Articulating Bluetooth antenna for improved wireless reception
  • Four high-gain microphone/line preamps with insert connections
  • Two-band high and low shelving EQ on every channel
  • Pre-fader and post-fader auxiliary sends with stereo auxiliary return
  • Convenient front-panel audio connections for easy access
  • Balanced 1/4" TRS main outputs for connecting professional audio equipment
  • LED level meters and master output control for monitoring audio levels
  • Space-saving 3U rackmount design

Dynacord L1300FD 2-Channel Power Amplifier

  • Professional 2-channel Class AB power amplifier with integrated digital signal processing
  • Up to 2 x 650W output power at 4 ohms
  • FIR Drive technology provides advanced loudspeaker processing and system optimization
  • Integrated equalization, delay, and limiting for precise audio control
  • Stable operation with speaker loads as low as 2 ohms
  • SONICUE software support for amplifier configuration and monitoring
  • Balanced XLR inputs and NL4 speaker outputs
  • Comprehensive protection against thermal overload, short circuits, DC, and other operating faults
  • Three-stage cooling system with front-to-rear airflow
  • Rackmount design for professional sound reinforcement applications

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth

  • Versatile professional media player with CD, USB, SD, Bluetooth, and AM/FM radio playback
  • Built-in Bluetooth receiver enables wireless music playback from smartphones, tablets, and other compatible devices
  • Integrated AM/FM tuner provides convenient access to radio programming
  • Supports standard audio CDs, CD-R, CD-RW, and compatible MP3 and WMA discs
  • USB flash drive and SD card playback supports MP3, AAC, WAV, and WMA audio files
  • Front-panel auxiliary input for connecting additional portable audio devices
  • Balanced XLR and unbalanced RCA stereo audio outputs
  • Power-on-play function for automatic playback from supported media
  • Incremental playback function for cueing the next track
  • Multiple playback modes, including repeat and random playback
  • Remote operation via included wireless remote control
  • RS-232C control interface for integration with compatible control systems
  • Space-saving 1U rackmount design for professional installations

Samson AirLine 99 Wireless Fitness Headset System with Qe Fitness Microphone

  • Frequency-agile UHF wireless microphone system designed for fitness instructors and active performers
  • 80 operating channels across 24 MHz bandwidth for flexible frequency selection
  • Up to eight simultaneous systems per frequency band, depending on region and operating conditions
  • AH9 micro transmitter mounts directly to the headset, eliminating bodypacks and connecting cables
  • Lightweight double-ear Qe fitness headset provides a secure, comfortable fit during physical activity
  • Water- and sweat-resistant condenser microphone designed for demanding fitness environments
  • Adjustable microphone positioning for clear voice pickup
  • Up to 300 ft operating range with clear line of sight
  • Rechargeable lithium-ion transmitter battery provides up to eight hours of operation
  • Sealed gold-contact charging connector and low-battery indicator
  • Convenient transmitter gain adjustment and one-touch mute
  • CR99 True RF Diversity receiver helps minimize unwanted dropouts
  • Automatic group scan assists with selecting clear operating frequencies
  • Infrared synchronization matches the transmitter and receiver frequencies
  • Multifunction backlit LCD displays RF, audio, and transmitter battery information
  • Tone key and automatic muting help prevent unwanted noise when the transmitter is off or out of range
  • Rackmountable receiver with included mounting hardware
  • Balanced XLR and 1/4" audio output connections
  • Windscreen included for improved microphone performance

ART PS8-II Professional Power Sequencer

  • Eight individually sequenced power outlets with front-panel LED status indicators
  • Adjustable sequence delay from 0.5 to 2 seconds per output
  • Helps reduce unwanted power-on and power-off transients in connected audio equipment
  • Rear-panel remote control terminal block for convenient sequencing control
  • Front-panel unswitched power outlet
  • 1800W total power capacity
  • Front-panel master circuit breaker and power switch
  • EMI and RFI filtering helps reduce electrical interference
  • Surge and spike protection for connected equipment

System Includes

  • (2) Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeakers with 90° x 60° Coverage
  • (1) Bose MB210-WR Outdoor-Rated 10" Compact Subwoofer
  • (1) Alesis MultiMix 10 Wireless Bluetooth Rackmount Mixer
  • (1) Dynacord L1300FD 2-Channel Power Amplifier
  • (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
  • (1) ART PS8-II Professional Power Sequencer
  • (1) Samson AirLine 99 Wireless Fitness Headset System with Qe Fitness Microphone

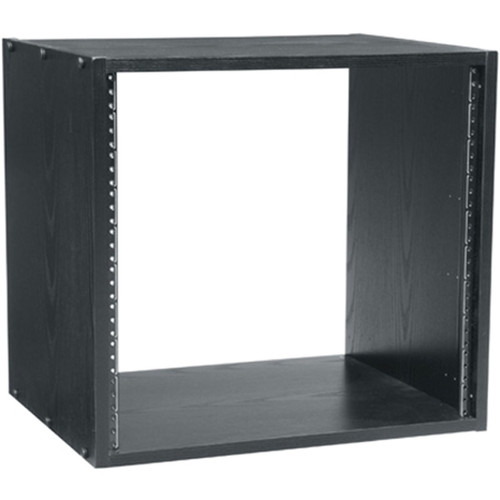

  • (1) Middle Atlantic BRK10 10U Equipment Rack
  • (1) Gator GRW-DRW2 Rackworks 2U Rack Drawer

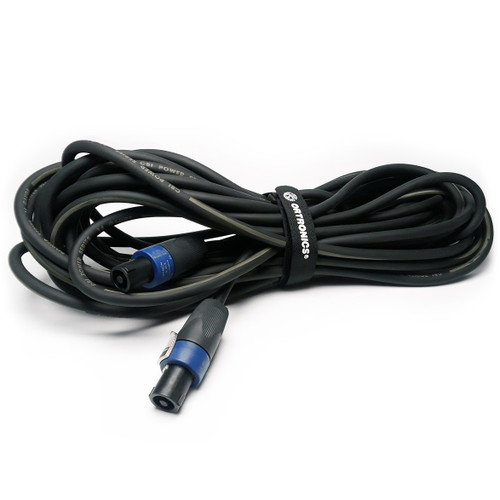

  • (2) CBI SNN142-30 14G Speakon Cables - 30ft
  • (1) CBI SNN142-50 14G Speakon Cable - 50ft

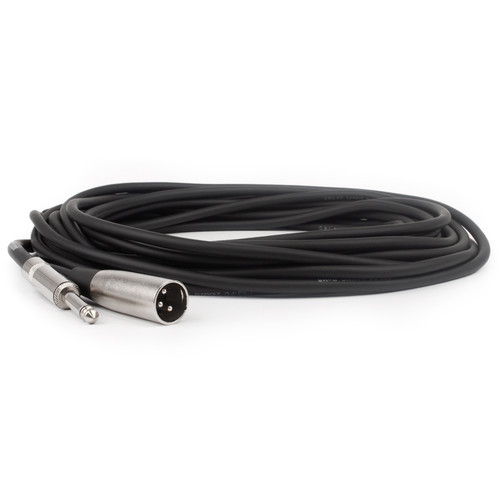

  • (2) CBI BLC-3 1/4" Male TRS to Male XLR Cables - 3ft

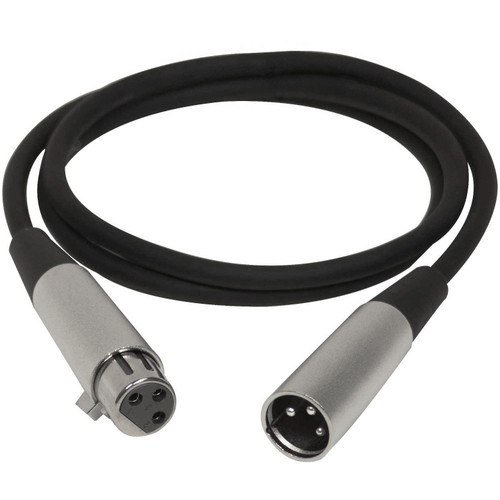

  • (1) CBI MLN-3 XLR Patch Cable - 3ft
  • (500ft) Provideon 2C12P 12/2 Plenum Audio Speaker Wire - Black
