Inside the Design

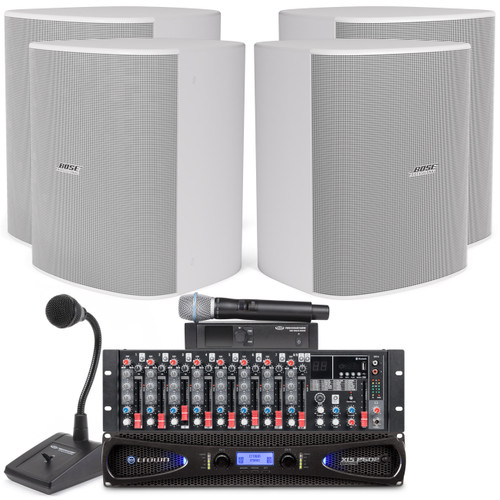

Designed for gymnasiums, school athletic facilities, and multipurpose recreation spaces, this complete sound system provides the coverage, power, and microphone flexibility needed for play-by-play announcing, game-day announcements, full-range music, presentations, ceremonies, assemblies, and other events. Whether it is being used for basketball or volleyball games, school functions, or everyday gymnasium paging, this system provides clear, high-output audio for both spoken announcements and full-range music throughout the space. Four Bose Professional DesignMax DM12SE 12" surface-mount loudspeakers deliver clear, high-output audio with 102° conical coverage, while their weatherized construction makes them suitable for demanding indoor installations and outdoor applications if needed.
The Rolls RM167 mixer provides centralized control of microphones and music sources, with Bluetooth connectivity for convenient wireless music playback during warmups, halftime, ceremonies, assemblies, and other events. Multiple microphone inputs accommodate both the wired and wireless microphones, while priority talkover can duck program audio when an announcement is made. The Bose Professional PowerSpace P21000A power amplifier provides 1,000 watts per channel to drive the loudspeakers, while the included Audix AP41OM2 wireless microphone and Pure Resonance Audio UC1S wired microphone provide flexible options for announcers, coaches, presenters, and event staff. Microphone cables, patch cables, and 500 feet of 14/2 plenum-rated speaker wire are also included for connecting and installing this system.
Sound System Features:
- Complete audio solution for gymnasiums, school athletic facilities, recreation centers, and multipurpose event spaces
- Ideal for basketball, volleyball, school assemblies, ceremonies, presentations, sporting events, and general-purpose gymnasium audio
- Supports play-by-play announcing, game-day announcements, scorer's table communication, paging, and event coordination
- Four Bose Professional DesignMax DM12SE 12" weatherized surface-mount loudspeakers provide high-output full-range sound
- 102° conical coverage helps provide consistent audio throughout the listening area
- 38 Hz low-frequency response supports full-range music as well as clear spoken-word audio
- Rolls RM167 provides centralized control of microphones and music sources
- Bluetooth connectivity allows convenient wireless music playback for warmups, halftime, ceremonies, and events
- Multiple microphone inputs accommodate wired and wireless microphones for announcements, play-by-play, presentations, and events
- Priority talkover can duck program audio when an announcement is made
- Bose Professional PowerSpace P21000A provides 1,000 watts per channel for high-output amplification
- PowerSpace P21000A supports the low-impedance loudspeaker configuration used in this system
- Audix OM2 handheld wireless microphone provides freedom of movement for announcers, presenters, coaches, and event staff
- Pure Resonance Audio UC1S wired microphone provides an additional solution for announcements and spoken-word applications
- AtlasIED DS7E adjustable desktop microphone stand provides stable microphone positioning at an announcer's table, scorer's table, or control desk

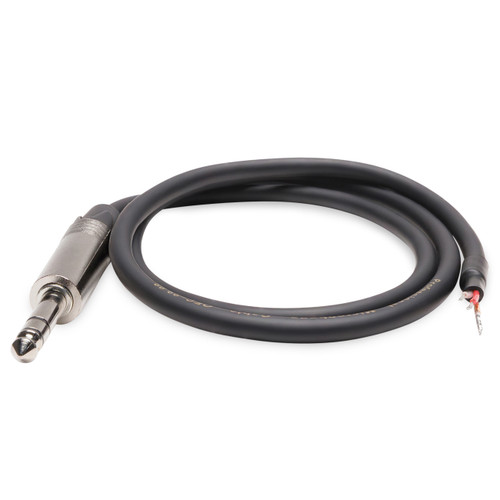

- Includes microphone cables, patch cables, and 500 feet of 14/2 plenum-rated speaker wire
About the System Components

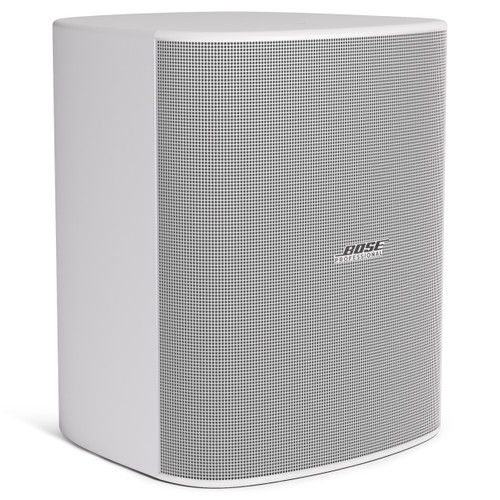

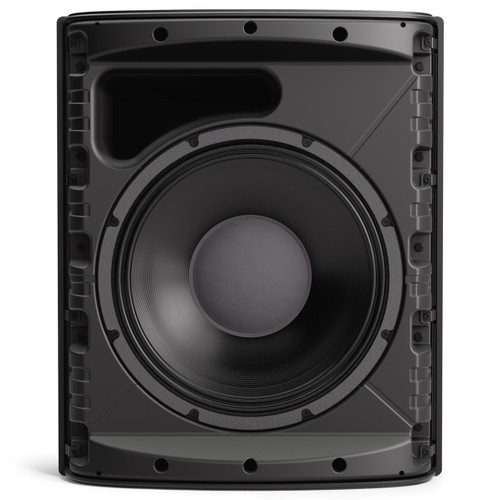

Bose Professional DesignMax DM12SE 12" Indoor/Outdoor Surface Mount Loudspeaker
The Bose Professional DesignMax DM12SE is a weatherized, full-range 12" coaxial loudspeaker designed for indoor and outdoor installations. Its 12" woofer and coaxially mounted compression driver provide clear, full-range sound with consistent 102° conical coverage. With frequency response extending down to 38 Hz, the DM12SE provides strong low-frequency performance along with high output for demanding commercial audio applications. The included pan/tilt bracket allows each loudspeaker to be aimed toward the listening area for more consistent coverage.
Rolls RM167 6-Channel Mic/Line Mixer
The Rolls RM167 provides centralized control for the system's microphones and music sources. Balanced microphone inputs, stereo source inputs, and Bluetooth connectivity provide flexibility for gymnasium announcements, play-by-play announcing, music playback, presentations, and events. Priority talkover can duck program audio when an announcement is made.

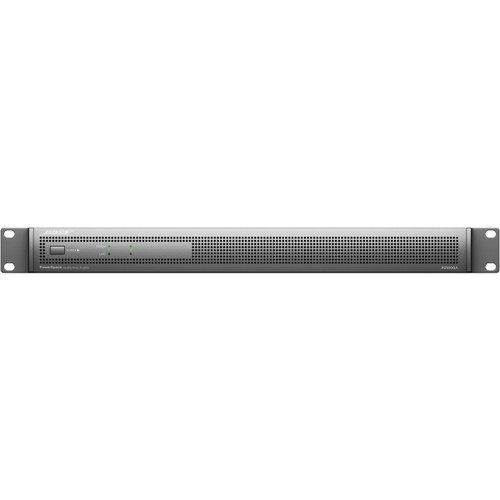

Bose Professional PowerSpace P21000A 2-Channel Power Amplifier
The Bose Professional PowerSpace P21000A delivers 1,000 watts per channel and provides the power needed to drive the low-impedance loudspeaker configuration used in this system. Its high-power output makes it well suited for commercial sound installations where strong, reliable amplification is required for speech and music throughout a large listening area.
Audix AP41OM2 Single Wireless Microphone System
The Audix AP41OM2 wireless system provides a handheld microphone solution for play-by-play announcers, presenters, coaches, and event staff. It pairs an R41 receiver with an H60/OM2 handheld transmitter featuring the Audix OM2 microphone capsule, providing freedom of movement for announcements and presentations without requiring a microphone cable.

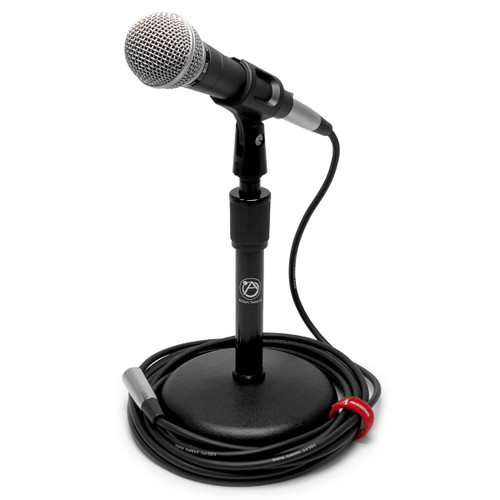

Pure Resonance Audio UC1S Vocal Microphone
The Pure Resonance Audio UC1S is a dynamic vocal microphone designed for speech, vocals, and public address applications. Its cardioid pickup pattern helps focus on the primary sound source while reducing unwanted background noise, making it a practical choice for gymnasium announcements, scorer's table use, presentations, and other spoken-word applications.
AtlasIED DS7E Adjustable Desktop Microphone Stand
The AtlasIED DS7E provides stable desktop microphone support with an adjustable height range of 8" to 13". Its weighted base and adjustable design allow the microphone to be positioned securely at an announcer's table, scorer's table, or control desk.
