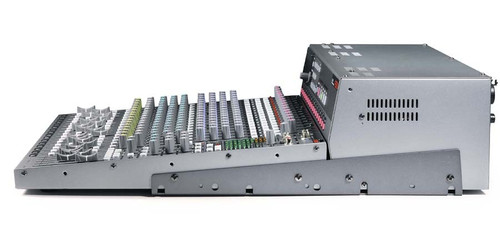

Fostex LR16 Live Recording Mixer (Discontinued)

By Fostex

Fostex LR16 Live Recording Mixer (Discontinued)

Name: Fostex LR16 Live Recording Mixer (Discontinued)
Brand: Fostex
SKU: AMX-FOSTEX-LR16

Write a Review

Part #:

LR16

Model #:

LR16

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Fostex LR16 is clever all-in-one solution integrating a flexible, feature-rich live digital mixer with a full-specification 16-track multitrack Hard Disc recorder.

Description

The new Fostex LR16 is clever all-in-one solution integrating a flexible, feature-rich live digital mixer with a full-specification 16-track multitrack Hard Disc recorder.

A totally new concept, this easy-to-use audio tool can serve as a FOH or on-stage mixer and is ideal for schools, houses of worship, clubs, coffee houses, project studios, mobile recording and rental sound/recording, etc. - In fact any application where flexibility of use is important.

The 16-channel digital mixer features analog-style operation, 3-band EQ and 3 AUX sends and 1 EFF send plus built-in master FX and recorder transport controls. The recorder I/O box meanwhile, houses 16 balanced mic / line inputs, other I/O and a ‘better than CD-quality’ multitrack recorder offering up to 16 hours of uncompressed 16-track multitrack recording/playback at 44.1/48kHz plus simultaneous stereo mix recording.

These two components can be rackmounted, are linked together via a standard single CAT-5 cable, (no bulky multicore here), and can be placed up to 50m apart, allowing for easy portability, easy installation and enormous flexibility in operation.

The new Fostex LR16. A totally new concept in livesound mixing and recording.

Features

Recorder I/O and Mixer components can be flexibly separated up to 50m apart.
Single CAT-5 cable - no heavy and expensive multicore snake required.
Intuitive analog-like mixer with 16 input, 4 group bus and master faders.
Built-in 80GB HD for approx. 16 hours of 16-track uncompressed digital recording at 16bit/44.1kHz or 9 hours at superior digital quality of 24bit/48kHz.
Multitrack (‘dry’ sound after TRIM) and Stereo Mix (‘wet’ sound after Stereo Faders) can be recorded simultaneously creating 16 x mono WAV files plus 1 x Stereo WAV file.
Memory Play allows you to Instant Start Playback via 10 keys.
99 Mark points per Project for quick Locate.
FAT 32 formatted HD can be mounted on PC or Mac via USB.
Save recorded data to USB ‘thumb drive’ for easy transfer to PC or Mac.

Specifications

Input and Output (Main Unit)	0dBu = 0.775Vrms, 0dBV = 1.0Vrms
Microphone Input (1 ~ 16)	Specifications
Connectors	XLR 3-31, balanced (combo)
Nominal input level	-60dBu ~ -12dBu
Input Impedance	more than 1.5kOhm
Phantom power	P48V (1~8CH & 9~16CH switchable, on/off)
Line Input (1 ~ 16)	Specifications
Connector	Ø6.3mm TRS Phone, balanced (combo)
Nominal input level	-40dBu ~ +8dBu
Input Impedance	more than 10kOhm
Insert (1 ~ 8)	Specifications
Connector	Ø6.3mm TRS Phone (Tip: Out, Ring: In)
Load Impedance	more than 10kOhm
Nominal output level	-10dBV
Input Impedance	more than 10kOhm
Nominal input level	-10dBV
Stereo Bus Out (L, R)	Specifications
Connector	XLR 3-31, balanced
Reference output level	+4dBu
Load impedance	more than 10kOhm
Group Bus Out (1 ~ 4)	Specifications
Connector	Ø6.3mm TRS Phone, balanced
Reference output level	+4dBu
Load impedance	more than 10kOhm
USB (Host) USB2.0 Hi-Speed for PC connection	Specifications
Connector	A typeMIDI Out
Connector	DIN 5-pin
Power requirement	120VAC
Power consumption	60W
Dimensions	482 (W) x 136 (H) x 570 (D) mm
Weight	28.66 lbs (13kg)
