Galaxy Audio EDXR/HHBPS Dual Channel Headset and Handheld Wireless Microphone System (Discontinued)

Galaxy Audio EDXR/HHBPS Dual-Channel Headset and Handheld Wireless Combo Microphone System

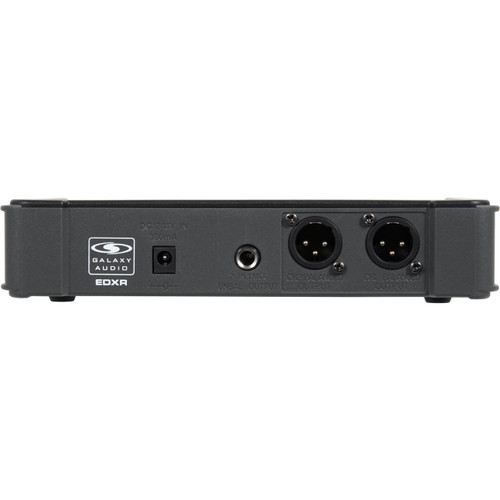

The EDX Series is a professional dual channel UHF wireless microphone system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.

The EDXR/HHBPS dual channel headset and handheld wireless microphone uni-directional system includes the EDXR receiver, the HH38 handheld transmitter, the MBP38 body back transmitter, the HS13-UBK headset microphone, 1/4" to 1/4" cable, and power supply.

Overall Features:

• 200' Range
• 16 Selectable UHF Frequencies
• Internal Antennas



EDXR Receiver:

• Dual Channel Receiver
• AF & RF Indicators
• IR Sync Receiver to Transmitters
• 1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
• 2 Internal Antennas (Non-Diversity)
• Rugged Plastic Casing

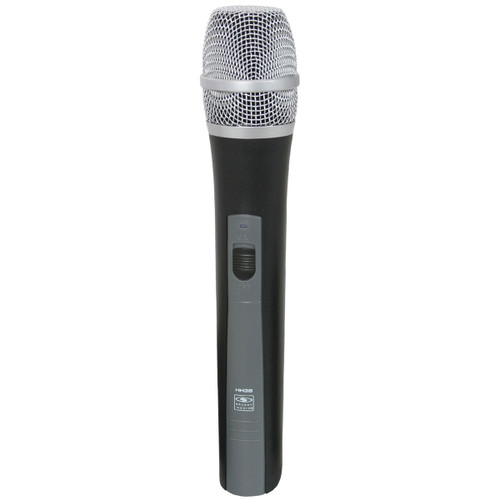

HH38 Transmitter:

• Dynamic Cardioid
• On/Off Switch
• IR Sync Transmitter to Receiver
• Plastic Casing
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 10.9" 1.85" (277 x 47 mm) (LxDia)
• Weight: 6.9 oz (195 g)

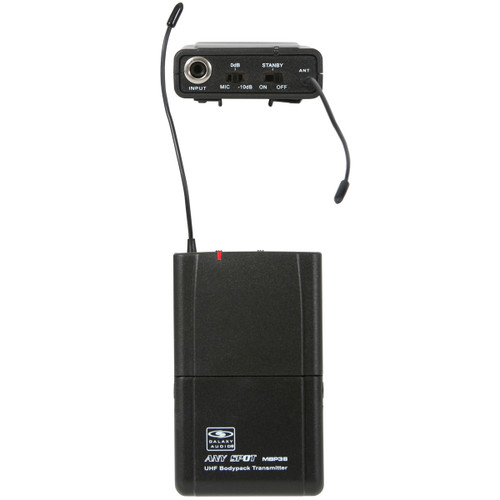

MBP38 Transmitter:

• On/Off/Standby Switch
• IR Sync Transmitter to Receiver
• Mic / 0 dB / -10 dB pad
• Durable Plastic Casing
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 3.3" x 2.55" x 1" (83.8 x 64.8 x 25.4 mm) (HxWxD)
• Weight: 2.8 oz (80 g)

Cut Sheet

Quick Start Guide

Manual

Frequency Chart

• (1) EDXR Dual Channel UHF Receiver
• (1) HH38 Dynamic Cardioid Wireless Handheld Microphone

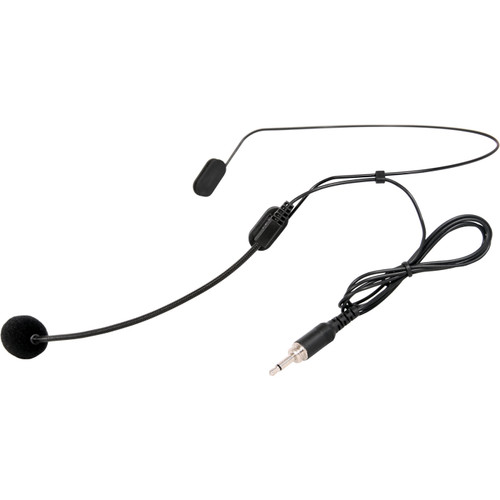

• (1) HS13-UBK Uni-directional Wireless Headset Microphone
• (1) MBP38 Wireless Bodypack
• (1) Microphone Clip
• (1) 1/4" to 1/4" Cable
• (1) Power Supply
