Galaxy Audio PSER/HH52 Handheld Wireless Microphone System (Discontinued)

Galaxy Audio PSER/HH52 Handheld Wireless Microphone System (Discontinued)

Name: Galaxy Audio PSER/HH52 Handheld Wireless Microphone System (Discontinued)
Brand: Galaxy Audio
SKU: GALAXY-PSER/HH52
Price: 259.99 USD
Availability: OutOfStock

Write a Review

Part #:

PSER/HH52D

Model #:

PSER/HH52

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The Galaxy PSER/HH52 Handheld Wireless Microphone System helps clear the stage of unwanted clutter and provide a more professional appearance. The PSE Receiver (PSER) is in an all metal half rack chassis. It has two rear mounted diversity antennas (front/remote mounting available), both XLR & 1/4" outputs, and squelch adjustment. The PSER has 16 selectable UHF frequencies. RF & AF indicator, channel number, volume output control, channel selector and IR sensor. Once the channel is selected, it will sync the frequency with a handheld or body pack transmitter with just the push of a button. The PSER can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2AA batteries.

Features

PSER Receiver:

Output Volume Control
AF Level Indicator
IR Sync
Squelch Adjustment
XLR/¼" Outputs

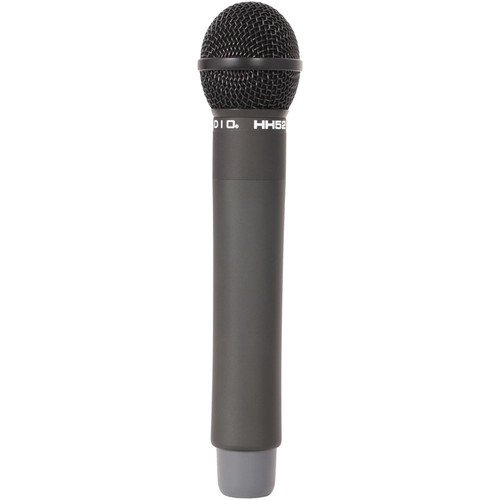

HH52 Handheld Microphone:

Dynamic Microphone Element
On/Off Switch
Gain Control with High/Low Switch
IR Sync
2 AA Batteries
10 mW

Specifications

System
Available Channels	16
Frequency Range	655 - 679 MHZ
Transmitter Output Level	10dBm
Band	UHF
Operating Range Under Typical Conditions	150' (50m)
Audio Frequency Response	+/-3dB 60Hz~16KHz
Total Harmonic Distortion	+/-30KHz deviation 1KHz tone
Dynamic Range	>90dB A-weighted
Operating Temperature	Range 14ºF to 122ºF (-10 Cº to +50 Cº)
HH52 Handheld Transmitter
Max Audio input level	0dBV
Power Requirements	2 "AA" size alkaline or rechargeable batteries
Battery Life	About 8 hours
Dimensions (H x Dia)	9.8" (250 mm) x 2.1" (53 mm)
Weight	0.59 lbs (0.268 kg)
PSER Receiver
Audio Output Level	(+/-30 Khz deviation, 1KHz tone) XLR connector (into 600 load) -12dBV ¼" connector (into 3K load) -18dB
Output Impedance	XLR connector
Output Impedance	XLR connector 1/4" connector 1K Ohms
XLR Output	Impedance balanced Pin1: Ground (cable shield) Pin2: Audio Pin3: No Audio
Sensitivity	-93dBm for 30dB
Image Rejection	>90dB
Power Requirements	12-18 V DC at 400mA, supplied by external power supply
Dimensions (H x W x D)	1.7" (44 mm) x 8.3" (212 mm) x 6.3" (160 mm)
Weight	1.94 lbs (0.88 kg)
