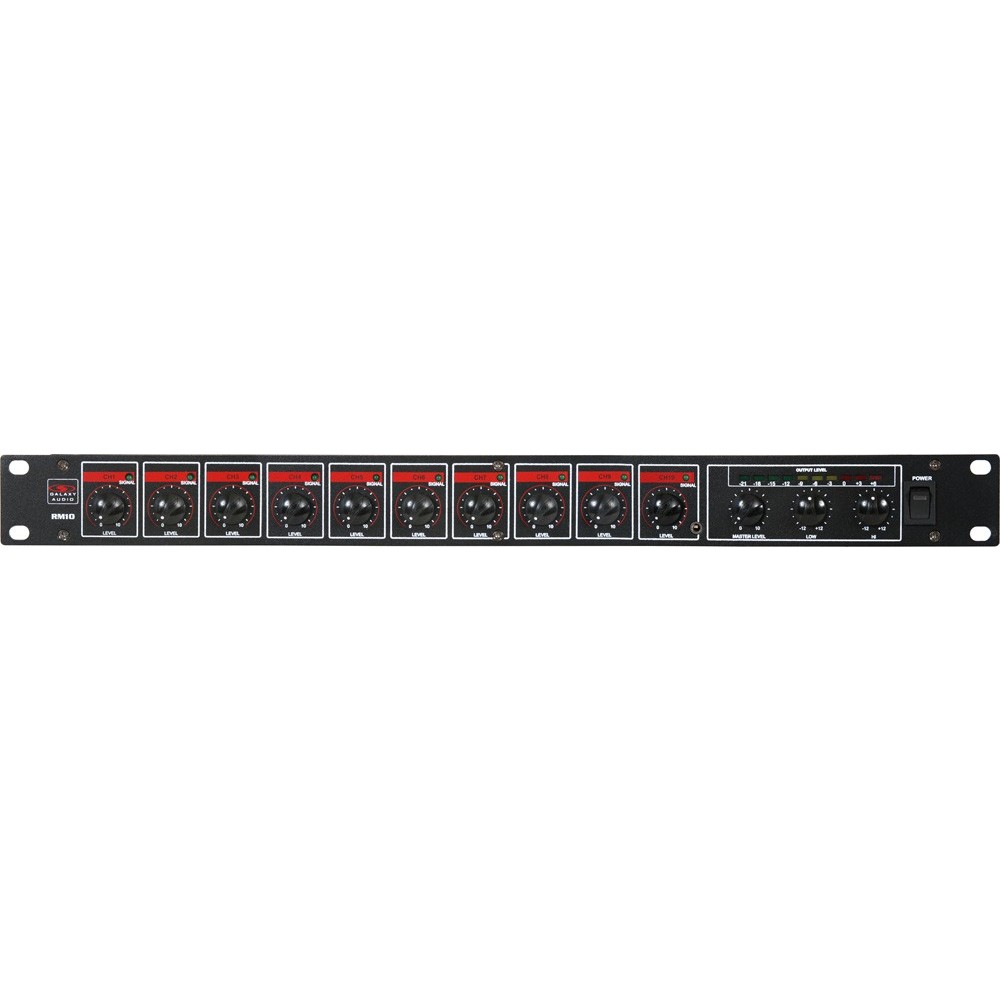

Galaxy Audio RM-10 10 Channel Rack Mount Mixer (Discontinued)

Part # RM-10
Model # RM-10

The Galaxy RM-10 10 Channel Rack Mount Mixer is designed with the contractor in mind. Easy to install in any application, the single rack space mixer provides a total of 10 input channels: 8 mic or line level inputs, two stereo inputs, and a front mounted 1/8" jack for use with a computer or MP3 player.

Description

Details

The Galaxy RM-10 10 Channel Rack Mount Mixer is designed with the contractor in mind. Easy to install in any application, the single rack space mixer provides a total of 10 input channels: 8 mic or line level inputs, two stereo inputs, and a front mounted 1/8" jack for use with a computer or MP3 player. The 10 signal presence LEDs ensure that the proper level of signal is being received by the mixer, while the segmented Output Meter allows easy monitoring of the level leaving the RM-10. Mic or line level outputs make going to another mixer or amplifier easy, and the link connection ensures expanding your inputs simple. Other features include phantom power and pad switches on all mic/line inputs.
Features

Features

  • 10 Input Rack Mount Mixer
  • Eight Mic/Line inputs with Phoenix Block Connectors
  • Two Stereo RCA Summing Inputs
  • One 1/8" stereo on front panel
  • Mic and Line Level outputs
  • 10 Signal Presence LED's
  • 10 Segment LED Output Meter
Specification
Frequency Response20 Hz~20kHz
Inputs(8) x 3 Pin Phoenix Block, (2) x RCA Stereo Summed, (1) x 1/8" Stereo Summed
Outputs(1) x 3 Pin Phoenix Mic Level, (1) x 3 Pin Phoenix Line Level, (1) x 1/4" Line Level
Phantom Power48Vdc switchable blocks of four channels
Link Buss(1) x 1/4" TRS Link Jack
Pad SwitchesChannels 1~8
Indicator LED’s10 Segment VU, Signal Presence
THD+N<0.5% 20Hz-20kHz
SRN>100.5 dB, 20Hz~20kHz
CMRR40dBv
Power Requirements12Vdc/1.3A
Maximum Output Level+14dBu
Dimensions (H x W x D)1.75" (44.45 mm) x 19" (482.6 mm) x 6.25" (158.7 mm)
Weight5 lbs (2.26 kg)
