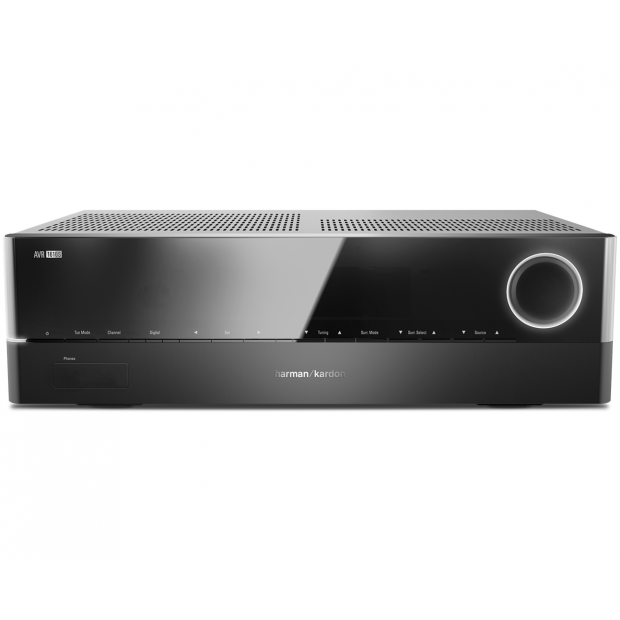

Harman Kardon AVR 1610S 5.1 Channel AVR with Bluetooth (Discontinued)

Part #:
AVR1610S
Model #:
AVR 1610S
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The HK AVR 1610S 425W, high-performance, 5.1-channel A/V receiver gives you more ways to connect to your favorite music, movies and shows.

Description

This 425-watt, high-performance, 5.1-channel A/V receiver gives you more ways to connect to your favorite music, movies and shows. There are countless ways to access and store your favorite media, from external hard drives to set-top cable boxes to smartphones. But if your home audio/video receiver doesn’t give you options for connecting to those media, it’s borderline useless. The Harman Kardon® AVR 1610S gives you a simple way to connect to everything you love. This 425-watt, 5.1-channel, networked audio/video receiver is loaded with options that let you access your media. It features five 3D-ready HDMI® 2.0 inputs, including one compatible with MHL, so you’ll have more than enough ways to access content on your HD cable box, Blu-ray™ player, MHL-equipped portable devices. It also includes Spotify Connect and HARMAN TrueStream Bluetooth® technology so you can stream high-fidelity audio from your mobile devices. Regarding sound, the AVR 1610S features our exclusive Natural Sound Processing (NSP), which creates a rich, enveloping sound from any source – particularly with two-channel streaming content. And to get the very best sound based on your speakers and listening environment, its new EZSet/EQ™ III process automatically calibrates the system. And with HARMAN GreenEdge™ technology, the AVR 1610S Sis environmentally friendly, too.

Features

  • Five 85W-per-channel amplifiers with high-performance digital power supply
  • Bluetooth technology and Spotify Connect
  • HARMAN TrueStream technology
  • Built-in vTuner (Internet radio) streaming
  • Five 3D-ready HDMI 2.0 inputs including one with MHL
  • Front-panel USB port for connection to compatible Apple products or USB sticks
  • MHL connectivity
  • Dolby® TrueHD and DTS-HD® Master Audio decoding
  • EzSet/EQ III auto-calibration
  • HARMAN GreenEdge technology
  • Compact design
  • Colour-coded connectors and binding-post speaker terminals
  • Multidevice, programmable remote control

Specifications

Audio Section
Stereo and Multichannel Power 85W per channel, two channels driven @ 6/8 ohms, 1kHz,
Input Sensitivity/Impedence 250mV/27k ohms
Signal-to-Noise Ratio (IHF-A) 100dB
Surround System Adjacent Channel Separation Dolby Pro Logic®/DPLII: 40dB
Dolby Digital: 55dB
DTS: 55dB
Frequency Response (@ 1W) 10Hz – 130kHz (+0dB/–3dB)
High Instantaneous Current Capability (HCC) ±29 amps
Transient Intermodulation Distortion (TIM) Unmeasurable
Slew Rate 40V/sec
FM Tuner Section
Frequency Range 87.5 – 108.0MHz
Usable Sensitivity IHF 1.3µV/13.2dBf
Signal-to-Noise Ratio (Mono/Stereo) 70dB/68dB
Distortion (Mono/Stereo) 0.2%/0.3%
Stereo Separation 40dB @ 1kHz
Selectivity (±400kHz) 70dB
Image Rejection 80dB
IF Rejection 80dB
AM Tuner Section
Frequency Range 520 – 1710kHz
Signal-to-Noise Ratio 38dB
Usable Sensitivity (Loop) 500µV
Distortion (1kHz, 50% mod) 1.0%
Selectivity (±10kHz) 30dB
Bluetooth Section
Frequency Range 2402MHz - 2480MHz
Transmitter Power 0-4dBm
Modulation GFSK, π/4-DQPSK, 8-DPSK
Functions Streaming audio play, supports Bluetooth 3.0, A2DP v1.2, AVRCP v1.4
Video Section
Television Format NTSC
Input Level/Impedence 1Vp-p/75 ohms
Output Level/Impedence 1Vp-p/75 ohms
Video Frequency Response (Composite Video) 10Hz – 8MHz (–3dB)
HDMI HDMI 1.4 with 4k x 2k bypass
General Specifications
Power Requirement  120V AC/60Hz
Power Consumption
Dimensions (H x W x D) 4.75" (121 mm) x 17.31" (440 mm) x 11.19" (300 mm)
Weight 10 lbs (4.6 kg)

DOCUMENTS

In The Box

  • (1) Harman Kardon® AVR 1610S A/V Receiver
  • (1) Programmable Remote Control
  • (1) EzSet/EQ III Microphone with 6.7 m (22’) Cable
  • (1) AM Loop Antenna with 0.6 m (2’) Cable
  • (1) FM Antenna with 1.8 m (6’) Cable
  • (2) AAA Batteries
  • (1) 1.8 m (6’) AC Power Cord
  • Quick-Start Guide
  • Warranty Card
  • Safety Sheet
