Health and Wellness Center Sound System for Reception Areas and Individual Rooms

This complete health and wellness center sound system design allows for two lobby speakers and up to 16 individual rooms each with a speaker and volume control. This robust fitness therapy sound system includes everything you need to install a high-quality multizone background music system for your facility. It's perfect for public areas such as health clubs, physical therapy, chiropractic care, massage therapy and tanning salons. This system includes a total of eighteen Yamaha in-ceiling speakers (black or white), a Yamaha MA2120 2-channel mixer amplifier, two Yamaha DCP1V4S digital control panels, sixteen Atlas Sound AT35 volume controls and 2,000 ft of speaker wire. Create the relaxing ambiance that you desire with this high-quality, easy-to-use sound system.

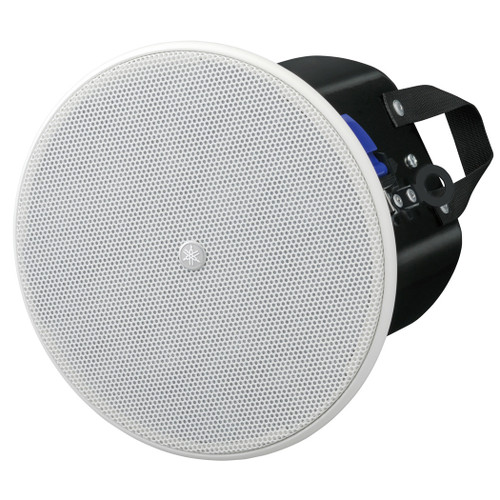

Yamaha VXC4 4" 70V In-Ceiling Loudspeakers

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white or can be painted to match the interior of any application. Available in Black or White.

Yamaha MA2120 2-Channel Mixer Amplifier with DSP

With a quick, easy setup and simple intuitive operation, it’s never been easier to bring your commercial space to life than with Yamaha’s latest additions to our Commercial Installation Solutions lineup, the MA/PA Series compact power amplifiers. All models combine a familiar, unassuming construction with efficient, flexible performance, while the MA2120 and MA2030 offer mixing capability with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha state-of-the-art DSP technologies featured in our professional audio gear. Whether providing background music for wellness centers, or powering multi-zone individual rooms or any number of applications requiring a microphone, the MA/PA Series provides you with a simple, yet powerful tool to help shape your ideal commercial sound environment.

Yamaha DCP1V4S Digital Control Panels

The Yamaha DCP1V4S Digital Control Panel connects to the Yamaha MA2030 Mixer Amplifier for remote volume control, microphone on/off switching or triggering the built-in chime for announcements. DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback. The DCP1V4S is available in either US or EU standardized sizes, built to meet the specifications of most regions around the globe.

Atlas Sound AT35 35W Plate Mounted Attenuators

The Atlas Sound AT35 is part of a high-quality auto transformer series that provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.

Yamaha VXC4 4" 70V In-Ceiling Loudspeakers:

• Full-range loudspeaker with a 4" driver
• Accommodates a growing list of applications in the installation market
• Delivers quintessential Yamaha sound quality
• Carefully designed for safe and easy installation
• Can be painted to match the interior of any application
• Available in black or white
• Sold in Pairs



Yamaha MA2120 2-Channel Mixer Amplifier with DSP:

• Easy setup, and a user-friendly interface for effortless operation
• Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
• Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
• DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
• Bass and treble stereo source EQ with an enhancer function
• Output EQ for optimizing the sound of each Output channel
• Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
• Capable of controlling sources and volumes separately in two areas (Source/volume zoning)
• Service areas or zoning areas can be expanded by adding a PA2120
• Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
• Intelligent protection function ensures safe, reliable operation
• Certified by ENERGY STAR
• Certified as Yamaha Eco Products
• Space-saving 1U rack size (sufficient space must be provided above and below the unit for airflow and cooling)



Yamaha DCP1V4S Digital Control Panels:

• 1 volume & 4 switches equipped wall mount control panel
• 1 DCP can be connected to 1 MA2030
• Simple connection via Cat5
• Available in US or EU standardized sizes



Atlas Sound AT35 35W Plate Mounted Attenuators:

• 10 attenuation steps plus positive off
• Mount into most 1-gang E.O. boxes
• UL Listed
• Wall plates are stainless steel with stamped and filled dial scale, and a skirted black knob

• (18) Yamaha VXC4 4" 70V In-Ceiling Loudspeakers
• (1) Yamaha MA2120 2-Channel Mixer Amplifier with DSP
• (2) Yamaha DCP1V4S Digital Control Panels
• (16) Atlas Sound AT35 35W Plate Mounted Attenuators
• (2000') West Penn 225 16/2 Audio Speaker Wire
