Counseling Center Patient Privacy and Sound Masking System by Cambridge
Usually arrives in 5-9 business days.
Healthcare Clinic Patient Privacy and Sound Masking System

Many hospital environments can be extremely noisy, disrupting patients and causing privacy concerns. If patients are able to hear other peoples' discussions, they feel they might also be heard by others. As a result, patients may feel that they cannot fully discuss their issues with their caregivers. This not only affects the patients' health but directly violates the required safeguards that are mandated by HIPAA. As patient satisfaction and quality of care become a greater focus, hospitals are seeking ways to increase acoustic comfort and privacy. This speech privacy sound masking system provides an unobtrusive and consistent background sound, similar to airflow, and is designed to reduce the impact of distracting noise and mask confidential conversations. This sound masking system also dramatically contributes to patient satisfaction because it effectively promotes rest and relaxation. Ideal for patient rooms, doctor offices, emergency exam rooms, nurses' stations, hospital administration, main lobbies, waiting rooms, patient registration desks, and business offices.
Improve Medical Outcomes and Patient Satisfaction

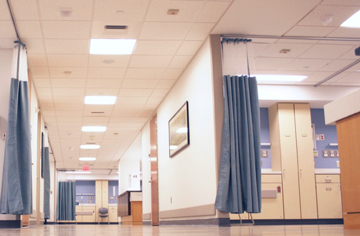

Sleep is an important part of the recovery and healing process, but the noise from hallways, nurses’ stations, and surrounding rooms often prevents patients from getting the rest they need. Excessive noise and the lack of sleep are some of the main concerns that patients have. Not only does a noisy hospital environment disturb patient sleep, it weakens their immune system and impacts recuperation. Studies show that patients in rooms with sound masking find that it helps to shorten the time it takes to fall asleep and prevents unwanted noises from disrupting their sleep. Patients have reported they've slept better, felt it was quieter, and were more satisfied with staff care.
An All-in-One Solution for Speech Privacy

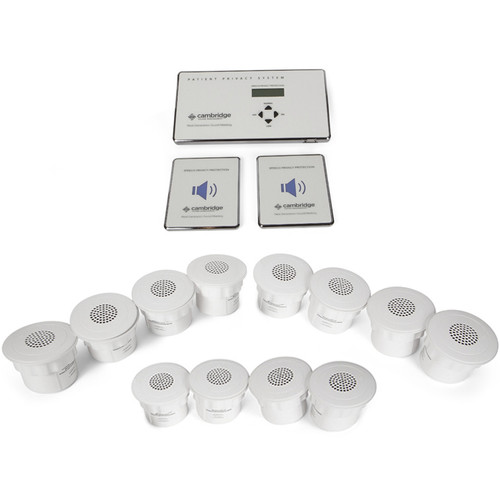

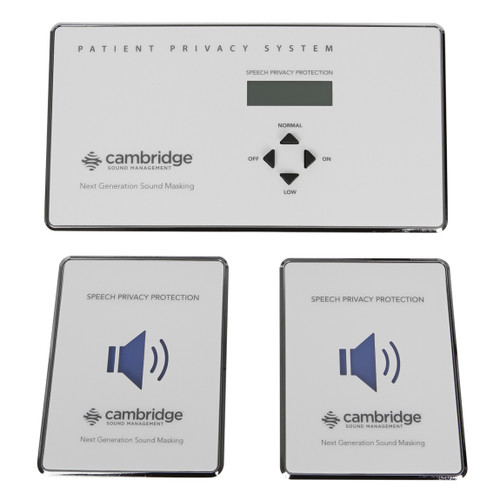

This Qt Patient Privacy System consists of a control module, two lighted privacy signs, and 12 direct-field sound masking emitters. The intuitive control module can be installed in a reception desk, in the nurses' station, or mounted to any wall. Once turned on, the emitters installed in the ceiling add a low level of background sound into the space that will make human speech less intelligible. Lighted privacy signs turn on to indicate the system is running, and let patients know that their conversations are being protected.
Easy to Retrofit into Existing Spaces
The Qt Patient Privacy System can be installed quickly and inexpensively in any medical office through Cambridge Sound Management's nationwide network of certified sound masking professionals. Privacy signs can be surface mounted, glass mounted, or mounted into a gang box, easily blending in with modern medical office décor.
Mounting Options

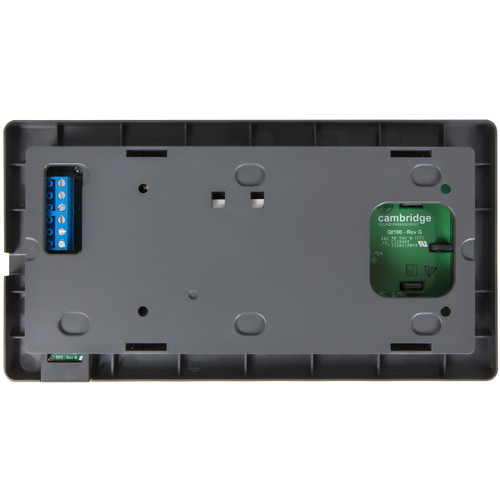

The control module can be surface mounted directly to the wall, flush mounted with the supplied box, or flush mounted to a suitable 4-gang electrical box (or 3-gang using EU/UK hardware). The privacy signs can be mounted on glass using the hider plate, surface mounted with self-adhesive tape, or mounted using a 1-gang box (North America NEMA or EU/UK types).
* The entire system is GreenSpec listed, consuming less than 7 watts of power. The system can help enable LEED v4 certification in the categories of acoustics and daylight harvesting.
| Control Processor/Privacy Signage | |
|---|---|
| Sound Masking Frequency Response | 1200 Hz to 6,300 Hz |
| Music / Paging Frequency Response | 1200 Hz to 10,000 Hz |
| Masking Min - Max SPL | 1, 30 dBA to 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 1 62 dBA @ 1 meter distance |
| User Adjustable Equalization | None - Internally Fixed Masking Spectrum |
| Non Correlated Masking Sources | 4 Masking Sources |
| Number of Masking Zones | 1 Zone - (2 Cable Runs per Zone) |
| Number of Audio Inputs | 1 Audio Input - (Stereo or Mono) |
| Audio Input Level | +4 dBu (2 Volts RMS Max) |
| Audio Input Impedance | 5000 Ω |
| Audio Input Connector | Captive Screw Terminal (Balanced / Unbalanced) |
| Remote Control Function | Quantity 1 - Contact Closure Input (Normally Open) / Qty 1 - 5Vdc Logic Status Output |
| Remote Control Connector | Captive Screw Terminals |
| Minimum Output Impedance | 2 Ω per channel |
| Power Input | Captive Screw Terminal & Coax Power Plug (center pin positive) |
| Privacy Sign Connections Controller | Qty 2 - Captive Screw Terminals - 5Vdc output @ 75ma |
| Privacy Sign Connections Sign | Qty 1 - Spring Loaded Push Terminals - 5 Vdc input @ 75ma |
| Output Connections | RJ45 x Quantity 2 (8 Conductor) |
| Masking Level Adjustment | Four Front Panel Buttons w/ LCD Display - 0.5 dB steps |
| Masking Ramp Times | 0 to 120 Seconds - up and down ramp times are independent (Front Panel / Remote Control) |
| Audio Input Level Adjustment | Four Front Panel Buttons w/ LCD Display - 1 dB steps |
| Setup Menu Access | Four Front Panel Buttons w/ LCD Display |
| Emitter / Device Capacity | 60 Qt Emitters per Run - 120 Qt Emitters Total |
| Maximum Emitter Cabling Distance | 1000ft (300 meters) per cable run |
| Maximum Power Consumption | 7 Watts @ 24 VDC |
| Power Supply Operating Voltage | Input: 100 - 240 VAC @ .6 Amp Output: 24 VDC @ 1.0 Amp |

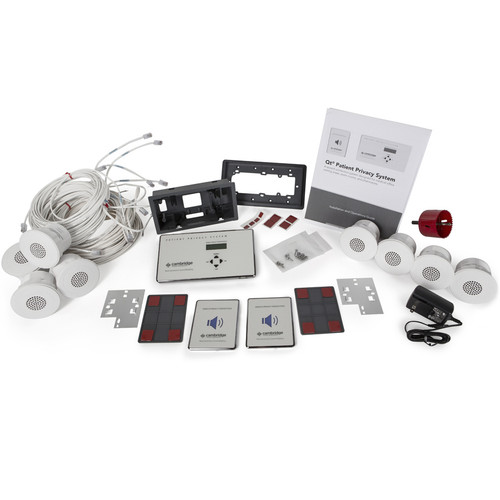

| Included Control Processor Accessories | Power Supply / ACT Hole Saw / Box Adapter Plate (4-Gang US - 3- Gang UK/EU) / ST-1000 Back Box |
| Included Privacy Sign Accessories | Qty 2 - Single Gang Electrical Enclosure Backing Plate / Qty 2 - Glass Finishing Plate with Adhesive Strips |
| Firmware Update | Yes - Integrated USB Connector |
| Controller Mounting | Wall Mount - (Back plate included) / Electrical Box (US/UK/EU Adapter Included) / Supplied Backbox |
| Privacy Sign Mounting | Single Gang Electrical Enclosure (North American Nema or EU/UK types) / Self Adhesive Strips |
| Control Processor Color | White |
| Privacy Sign Color | White w/ Blue LED |
| Certifications | FCC Part 15 RoHS Compliant CE US STD 60065 CAN/CSA STC C22 2 60065 ETL Listed Green Spec Listed |
| Operating Temperature Range | 40°F to 90°F (4°C to 32°C) |
| Privacy Sign Dimensions (H x W x D) | 0.19" (4.8 mm) x 3.5" (90 mm) x 4.5" (113 mm) |
| Controller Dimensions (H x W x D) | 0.875" (23 mm) 7.0" (179 mm) x 3.5" (89 mm) |
| Controller & Privacy Sign Weight | 0.8 lbs (0.35 kg) |

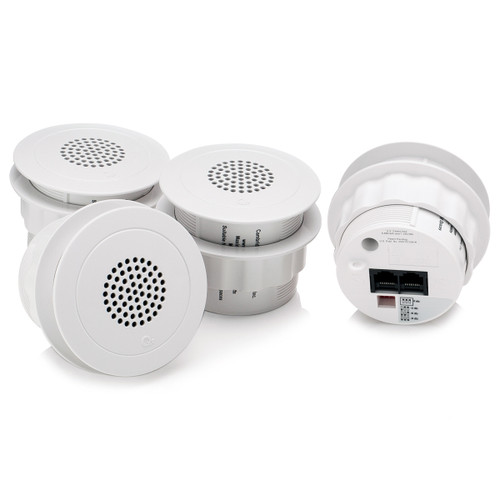

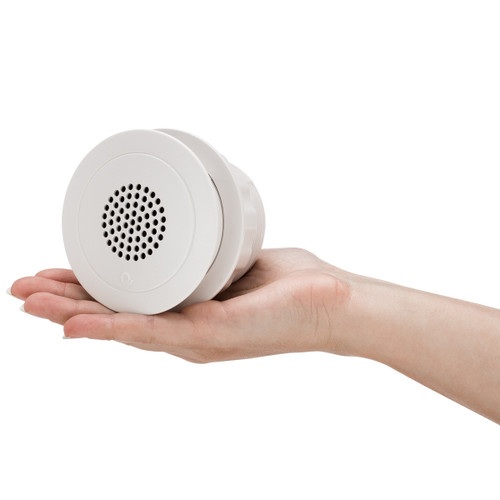

| Qt-Emitters | |
| Sound Masking Frequency Response | 200 Hz - 10,000 Hz |
| Music / Paging Frequency Response | 200 Hz - 10,000 Hz (-10 dB) |
| Masking Min - Max SPL | 30 dBA - 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 62 dBA @ 1 meter distance |
| Nominal Impedance | 3600 Ω |
| Nominal Dispersion | 170 degrees conical / half space |
| Connections | Input / Output - RJ45 Modular Jack |
| Channel Selection | Four Channel Auto Sequencing and Repeating |
| Selectable Attenuation | 0 dB, -3 dB, -6 dB, -9 dB |
| Cabling | Category UTP Cabling (8 conductor) |
| Included Accessories | Acoustic Ceiling Tile Mounting Ring - UTP Cable (16ft/30ft) |
| Loudspeaker Type | Passive w/ Transformer |
| Maximum Power Consumption | .02 Watts |
| Enclosure | Sealed |
| Color | White (Optional Black Caps and Accessories) |
| Certifications | UL 2043 |
| Cabling | Qty 1 - 50ft Emitter Cable / Qty 7 -16ft Emitter Cables / Qty 2 - 50ft Privacy Sign Cables - Included in Kit |
| Emitter Cabling Type | CMP (Plenum) UTP Twisted Category 3 Cable |
| Privacy Sign Cabling Type | CMP (Plenum) 20AWG 2 Conductor Cable |
| Driver Dimensions (Dia) | 1.25" (32 mm) |
| Emitter Dimensions (H x W x D) | 2.5" (64 mm) x 3.25" (83 mm) |
| Emitter Weight | 0.72 lbs (0.329 kg) |
