The JBL AM7212/00 is a high power, lightweight, 2-way, full-range loudspeaker intended for a wide variety of applications.

Description

The AM7212/00 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

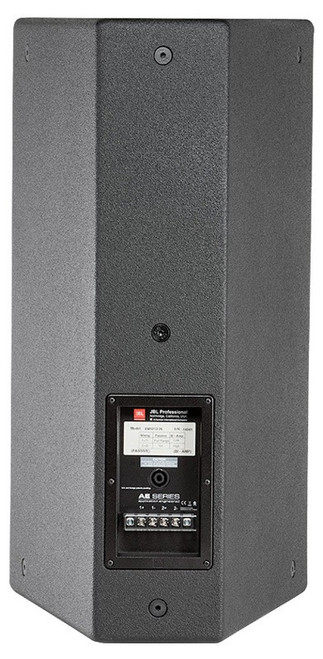

The enclosure is constructed of multi-ply birch coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

Features

100° x 100° Coverage
2262H Differential Drive® Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX finishes

Specifications

Frequency Range (-10 dB)	36 Hz – 20 kHz
Frequency Response (±3 dB)	42 Hz – 20 kHz
Coverage Pattern	100° x 100°
Directivity Factor (Q)	8.3
Directivity Index (DI)	9.1 dB
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.5 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC)	Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (Bi-amp)	LF: 126 dB-SPL cont avg (132 dB peak) HF: 131 dB-SPL cont avg (137 dB peak)
Maximum SPL (Passive)	123 dB-SPL cont avg (129 dB peak)
System Sensitivity	Passive mode: 95 dB SPL
Low Frequency Driver	1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm(3 in) dual voice coil
Nominal Impedance	8 ohms
Sensitivity	96 dB SPL
High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance	8 ohms
Sensitivity	111 dB SPL
Waveguide	PT-H1010HF-1
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D)	28" (711 mm) x 14.5" (368 mm) x 18" (457 mm)
Net Weight	51 lbs (23.1 kg)
