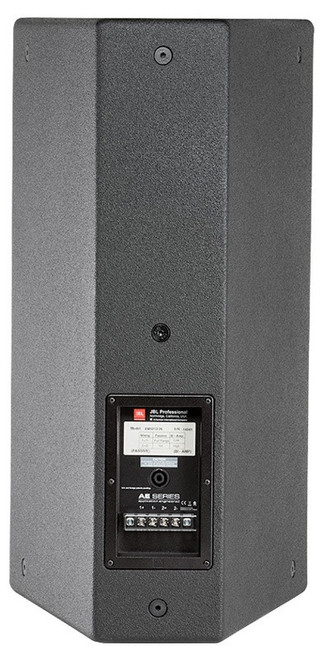

JBL AM7212/26 12 Inch Loudspeaker with 120° x 60° Coverage

JBL AM7212/26 12 Inch Loudspeaker with 120° x 60° Coverage

Name: JBL AM7212/26 12 Inch Loudspeaker with 120° x 60° Coverage
Brand: JBL Professional
SKU: JBL-AM7212/26
Price: 3780 USD
Availability: InStock

Write a Review

Part #:

AM7212/26

Model #:

AM7212/26

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The JBL AM7212/26 is a high power, lightweight, 2-way, full-range loudspeaker intended for a wide variety of applications.

Description

The AM7212/26 comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

The enclosure is constructed of multi-ply birch coated in JBL’s rugged DuraFlex ﬁnish and is heavily braced to maximize low-frequency
performance. The trapezoid enclosure is ﬁtted with ﬁfteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined
with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

The AM7212/26 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

120° x 60° Coverage
2262H Differential Drive Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX finishes

Specifications

Frequency Range (-10 dB)	36 Hz – 20 kHz
Frequency Response (±3 dB)	42 Hz – 18 kHz
Coverage	120° x 60° horn
LF Driver	2262H
HF Driver	2432H
System Type	12" Two - Way, High Power, Full - Range
Directivity Factor (Q)	8.2
Directivity Index (DI)	9.1 dB
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.5 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hr 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC)	Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (dB-SPL, 1W @ 1m)	Bi-amp mode: (LF) 126 dB-SPL cont avg (HF) 133 dB-SPL cont avg Passive mode:123 dB-SPL cont avg
System Sensitivity (1W @ 1m)	Passive mode: 95 dB SPL
Nominal Impedance	8 ohms
Dimensions (H x W x D)	28" (711 mm) x 14.5" (368 mm) x 18" (457 mm)
Weight	51 lbs (23.1 kg)
