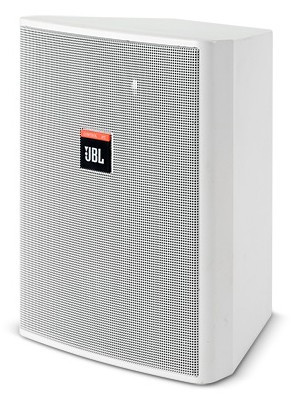

JBL Control 25 5.25 Inch 2 Way Indoor/Outdoor Loudspeaker - Pair (Discontinued)
Part # Control 25
Model # Control 25
The JBL Control 25 is the most versatile of JBL professional indoor/outdoor loudspeakers, perfect for applications where foreground/background music and paging are required.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Its robust nature makes the JBL Control 25 a perfect choice for restaurants, health clubs, outdoor theme and water parks or other applications where foreground/background music and paging are required.

The unique InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well.

The Control 25 readily accepts a variety of paints and finishes to match any decor.

Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting.
Features

Features

  • Components: 5.25” Polypropylene coated woofer, 0.75” Titanium coated horn loaded tweeter
  • Built-in InvisiBall mounting hardware
  • Weather resistant enclosure and transducers
  • Readily paintable
  • 90° x 90° high frequency horn
  • Overload Protection Circuitry
  • Sensitivity: 88 dB SPL, 1W, 1m
Specification
Frequency Range (-10 dB)80 Hz-16 kHz
Power Capacity150 Watts
Sensitivity88 dB SPL, 1W, 1m
Directivity Factor (Q)5.3dB
Directivity Index (DI)7.2dB
Nominal Impedance8 ohms
Crossover Frequency3.0 kHz
Nominal Coverage90° x 90°
LF Driver5.25" (135 mm) Polypropylene coated paper w/WeatherEdge
HF Driver0.75" (19 mm) Titanium coated polycarbonate
Enclosure MaterialHIPS (High Impact Polystyrene)
Overload ProtectionFull-Range power limiting to protect network and transducers
TerminationSpring terminals, accepts banana plug
EnvironmentalConforms to Mil Spec 810 for humidity, salt spray,temp. & UV. IEC 529 IP-X4 splashproof rating
Dimensions9.3" (236 mm) x 7.4" (188 mm) x 5.8" 149 mm)
Net Weight (ea)5.0 lbs (2.3 kg)
