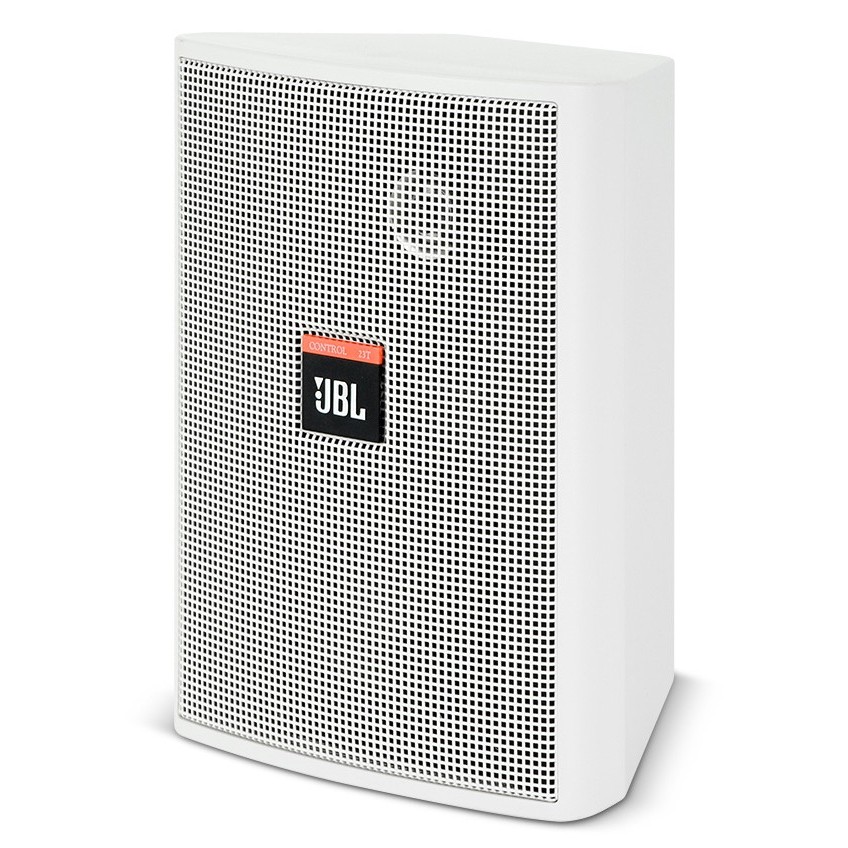

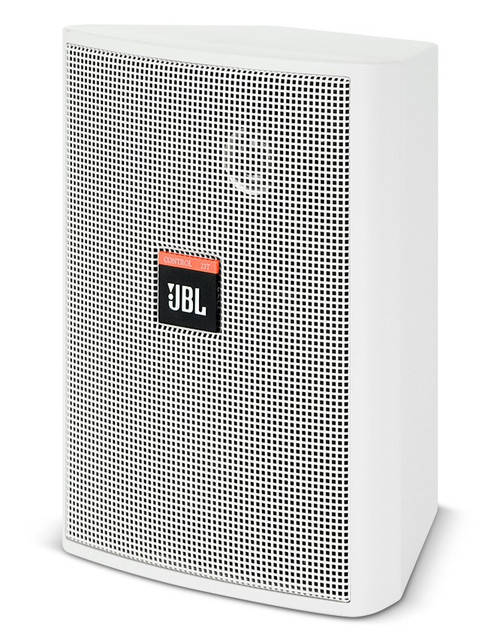

JBL Control 23 3.5 inch 2 Way Indoor/Outdoor Speaker - Pair (Discontinued)

Part # Control 23
Model # Control 23

The JBL Control 23 is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for applications where foreground/background music and paging is required.

Description

Details

The JBL Control 23 is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact. The unique and global patent pending InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to 37° off axis and horizontal rotation of up to 44° off axis.

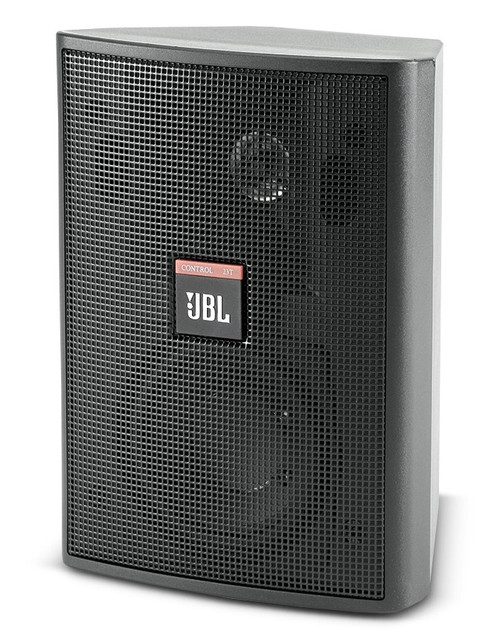

The Control 23 readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting in the harshest conditions. Available in black (Control 23) and white (Control 23-WH).

Features

Features

  • Components: 3½” Polypropylene coated woofer, ½” Titanium coated horn loaded tweeter
  • Built-in InvisiBall® mounting hardware
  • Weather resistant enclosure and transducers
  • Readily paintable to match decor
  • 90° x 90° high frequency horn
  • Overload Protection Circuitry
  • Sensitivity: 86 dB SPL, 1W, 1m
Specification
Frequency Range (-10 dB)85 Hz to 22 kHz
Power Capacity50 W Continuous Program Power
25 W Continuous Pink Noise
Sensitivity86 dB SPL, 1W, 1m
Directivity Factor (Q)4.8 dB
Directivity Index (DI)6.8 dB
Nominal Impedance8 ohms
Crossover Frequency3.5 kHz
LF Driver3.5" (88 mm) Polypropylene cone w/Weather Edge
HF Driver0.5" (13 mm) Titanium coated polycarbonate
Enclosure MaterialHIPS (High Impact Polystyrene)
Overload ProtectionFull-Range power limiting to protect network and transducers
TerminationSpring terminals, accepts banana plug
EnvironmentalConforms to Mil Spec 810 for humidity, salt spray,temp. & UV. IEC 529 IP-X4 splashproof rating
ColorBlack or White
Included AccessoriesInvisiball Assembly (4 mm x 80 mm hex key)
Dimensions (H x W x D)7.6" (193 mm) x 5.5" (140 mm) x 4.4" (111 mm)
Net Weight (ea)4 lbs (1.8 kg)
Shipping Weight (pr)9 lbs (4.1 kg)
