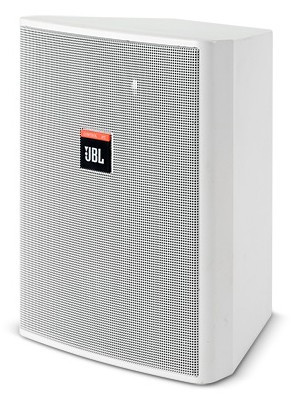

The JBL Control 25T is perhaps the most versatile of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers. Its robust nature makes the Control 25T a perfect choice for restaurants, health clubs, outdoor theme and water parks or other applications where foreground/background music and paging are required.
The Control 25T can be used in either 70.7V or 100V distributed line sound systems. Taps are provided at 30W, 15W and 7.5W (plus a 3.7W tap for use on 70.7V systems only). The unique and global patent pending InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well.
The Control 25T readily accepts a variety of paints and finishes to match any decor.
Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge™ a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting in the harshest conditions.- Features
Features
- Isolation transformer for 70.7V/100V distributed-line sound systems
- Components: 5¼” Polypropylene coated woofer; ¾” Titanium coated horn loaded tweeter
- Built-in InvisiBall mounting hardware
- Weather resistant enclosure and transducers
- Readily paintable
- 90° x 90° high frequency horn
- Overload Protection Circuitry
- Specification
Frequency Range (-10 dB) 80 Hz to 15 kHz Power Capacity Components and Network: 150 Watts Continuous Program²; Transformer: Per each listed tap rating Tap Settings 100V Line Tap 1 = 7.5W, Tap 2 = 15W; Tap 3 = 30W, Tap 4 is not used 70V Line Tap 1 = 3.7W, Tap 2 =7.5W; Tap 3 = 15W, Tap 4 = 30W Directivity Factor (Q) 5.3dB Directivity Index (DI) 7.2dB Crossover Frequency 3.0 kHz LF Driver 5.25" (135 mm) Polypropylene coated paper w/WeatherEdge HF Driver 0.75" (19 mm) Titanium coated polycarbonate Enclosure Material HIPS (High Impact Polystyrene) Overload Protection Full-Range power limiting to protect network and transducers Termination Spring terminals, accepts banana plug Included Accessories InvisiBall Assembly(6 mm x 100 mm hex key) Dimensions 9.3" (236 mm) x 7.4" (188 mm) x 5.8" (149 mm) Net Weight (ea) 8 lbs (3.6 kg) - Reviews
