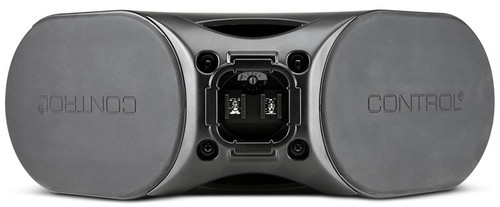

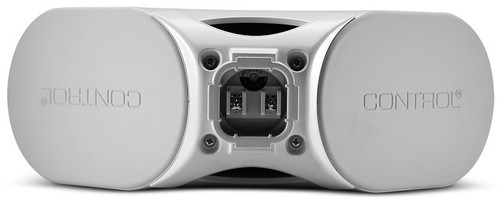

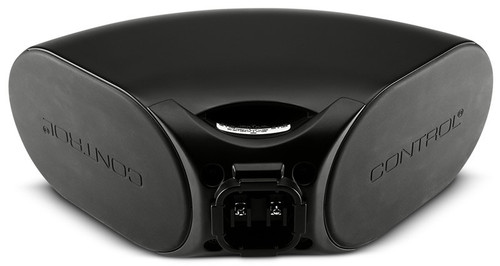

The Control CRV offers contemporary, curved design and a wide range of configurations. Providing remarkable versatility for a broad scope of applications, the Control CRV offers numerous mounting options and a wide range of configurations, providing an endless variety of solutions in terms of coverage, appearance and mounting.
Immediately noticeable is the Control CRV’s unique, contemporary, quarter-round design that makes a modern design statement, adding to any venue’s visual aesthetics in either a wall-mounted or corner-mounted configuration. In addition, this sleek appearance serves a notable functional purpose, as the Control CRV can be combined into half-round, three-quarter-round or a full, 360-degree round arc cluster that can be suspended from the ceiling via a fan pole assembly. A single Control CRV mounted at a wall-wall or wall-ceiling junction physically curves across the junction, acoustically coupling with the adjacent surfaces, widening the sound field, and producing an increased sense of sonic spaciousness.
A multi-tap, 30-Watt transformer allows for use on 70V or 100V distributed speaker lines, providing the capability to run multiple speakers on a single amplifier channel as well as individual level taps for each speaker and the ability to be connected via long cable runs. Available in either black or white, both models have a high level of weather resistance, allowing the speakers to be located either indoors or outdoors. The Control CRV is ideal for a wide variety of professional applications such as retail stores, restaurants, music cafes, outdoor patios, hotels, and anywhere that a high design loudspeaker with a 70V/100V transformer and indoor/outdoor capability is required.
| Frequency Range (–10dB) | 80 Hz – 20 kHz (half-space, on-wall) 60 Hz – 20 kHz (quarter space, at two-wall junction) |
|---|---|
| Power Handling | 75 W Continuous Pink Noise, 2 hrs 60 W Continuous Pink Noise, 100hrs 150W Continuous Program Power |
| Nominal Sensitivity2 | 89 dB |
| Maximum SPL @ 1m3 | 108 dB continuous average long-term (peaks of 114 dB) |
| Nominal Coverage Angle | 105° horizontal x 80° vertical (2 kHz - 16 kHz, speaker in vertical orientation) |
| DI and Q | 8.6 dB (2 kHz - 16 kHz) 7.4 (2 kHz - 16 kHz) |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance | 4.0 Ohms @ 320 Hz |
| Crossover Frequency and Type | 2 kHz – 36dB/octave tweeter; 18dB/octave woofers |
| Transformer Taps | 30 W, 15 W, 7.5 W at both 70 V and 100 V (plus 3.8 W at 70V only) Thru position is 4 ohms |
| Low-Frequency Transducers | Dual 4" (100 mm) PolyPlas,™ shielded woofer with dualneodymium magnets |
| High-Frequency Transducer | 3/4" (19 mm) Titanium-laminate dome tweeter, shielded |
| Enclosure Material | ABS |
| Ports | Screened to protect against ingress of pests |
| Safety Agency Rating | Transformer is UL registered per UL1876 |
| Dimensions (H x W x D) | 5" (127 mm) x 14.4" (364 mm) x 10.3" (262 mm) |
| Net Weight | 7 lbs (3.2 kg) |
