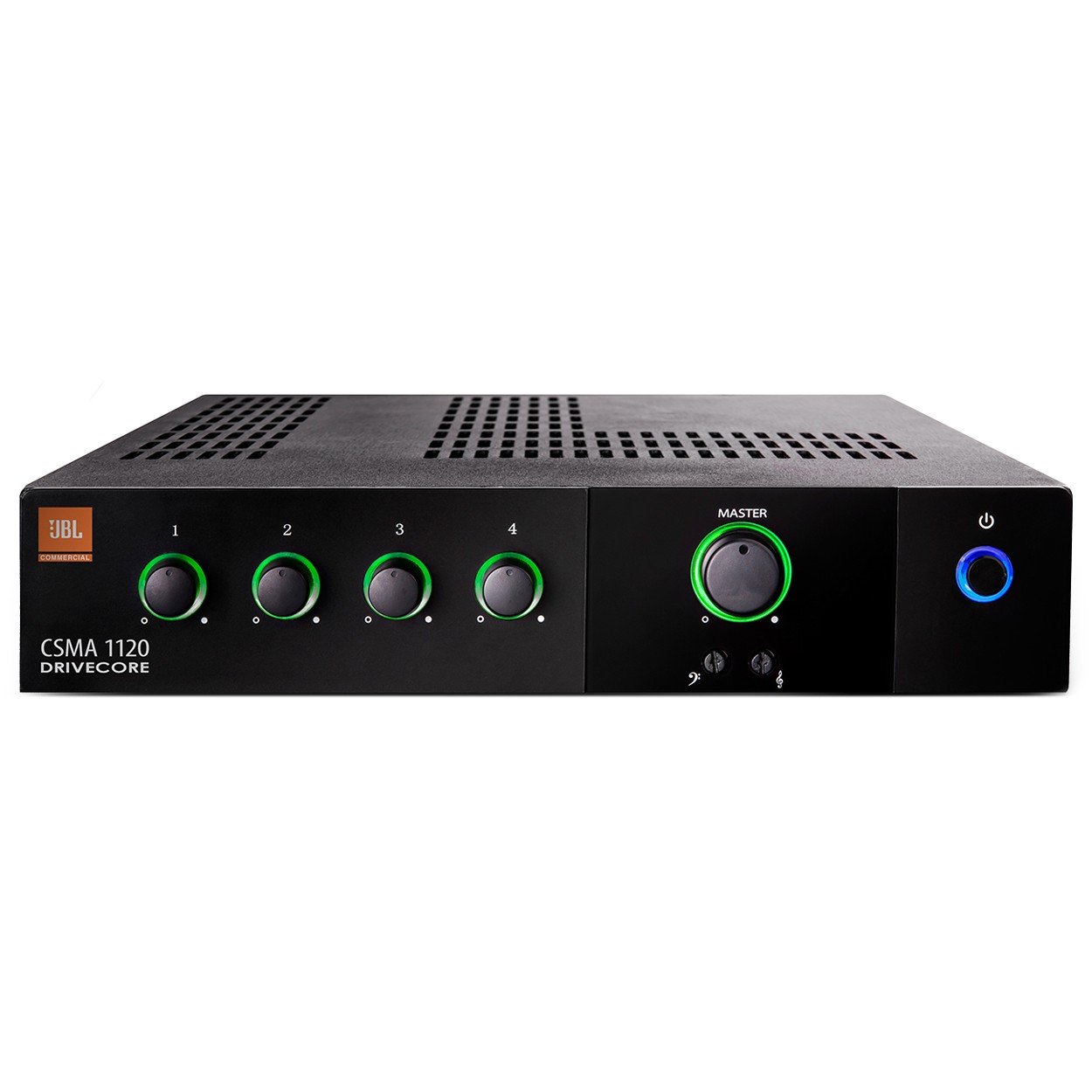

This is ideal for commercial and industrial use, new line of lightweight mixer-amps leverage Crown’s high-efficiency DriveCore Technology and HARMAN’s GreenEdge environmentally-conscious manufacturing so they quickly pay for themselves in energy savings. With a sleek industrial look and a clean front panel featuring only volume controls for each channel, they offer you an easy-to-use professional tool with uncompromised performance.
All volume controls on the CSMA 1120 are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. This model feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.
| Output | 120W @ 4/8 Ohms (1kHz Power, THD+N |
|---|---|
| Frequency Response | +/- 1dB (@1W into 4 or 8 Ohms) |
| Load Impedance | Stable from 2 - 16 Ohms |
| Sensitivity | 1.4Vrms |
| Signal to Noise Ratio | Greater than 100 dB - 1kHz, A-weighted |
| Input Impedance | Balanced 20K Ohms/Unbalanced 10K Ohms |
| Max Input | +20dBu Typical |
| Input Channel | 4 |
| Output Channel | 1 |
| Phantom Power | 27VDC |
| AC Line Voltage | 100-240V, 50/60 Hz |
| Dimensions (H x W x D) | 1.7" (43.4 mm) x 8.6" (218.5 mm) x 11.9" (303.4 mm) |
| Net Weight | 7.1 lbs (3.2 kg) |
| Weight | 10.1 lbs (4.6 kg) |
