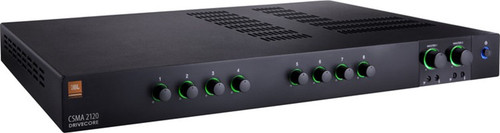

Ideal for commercial and industrial use, this lightweight mixer-amp leverages Crown’s high-efficiency DriveCore Technology and HARMAN’s GreenEdge environmentally-conscious manufacturing so it quickly pays for itself in energy savings. With a sleek industrial look and a clean front panel featuring only volume controls for each channel, it offers you an easy-to-use professional tool with uncompromised performance.
All volume controls on the CSMA 2120 are surrounded by an illuminated ring, making it easy to see and operate in darkened environments. This amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, this unit includes RJ45 connectors for use with JBL CSR-V in-wall volume controls. This model features a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.
| Output | 120W @ 4/8 ohms (1kHz Power, THD+N |
|---|---|
| Insertion Loss | 1 dB maximum (70V & 100V outputs) |
| Continuous Power per Channel | 15W |
| Number of Input Channels | 8 |
| Number of Output Channels | 2 |
| Line Output level | 5.0V RMS into 10kΩ |
| Input Sensitivity | Mic Input: 3mV RMS Line Input: 775 mV RMS RCA Input: 300mV RMS |
| Frequency Response | 4/8 Ohm Output: 20Hz - 20kHz, +/-2dB 70V/100V Outputs: 80Hz - 15kHz +/-2dB Line Out: 20Hz - 20kHz, +/-1dB |
| Total Harmonic Distortion | Power Amp Output: |
| Signal-to-Noise Ratio | >90dB |
| Input Impedance | Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ |
| Phantom Power | 27VDC |
| Crosstalk | -70 dB |
| Nominal AC Line Voltages | 100-240V, 50/60 Hz |
| Minimum Load Impedance | Low Impedance Output: 4 Ω 70V Output: 40 Ω 100V Output: 80 Ω |
| Operating Temperature/Humidity | 0°C to 35°C @ 95% R.H. (non-condensing) |
| Storage Temperature | -20°C to 85°C |
| Dimensions (H x W x D) | 1.7" (43.3 mm) x 17.2" (436.9 mm) x 11.9" (303.4 mm) |
| Net Weight | 12.1 lbs (5.5 kg) |
| Shipping Weight | 15.5 lbs (7 kg) |
