The ES90 floorstanding speaker delivers accurate performance – with dramatically reduced distortion for incredibly realistic sound – thanks to its PolyPlas™ woofers and midrange driver, and its titanium-laminate tweeter.

Description

The ES90 floorstanding speaker delivers accurate performance – with dramatically reduced distortion for incredibly realistic sound – thanks to its PolyPlas™ woofers and midrange driver, and its titanium-laminate tweeter. The dual 8" woofers deliver deep, powerful, accurate bass response, and the ultrahigh-frequency driver extends response out to 40kHz, making the ES90 perfect for the latest high-definition recordings and broadcasts. The tweeter is mounted in our proprietary Elliptical Oblate Spheroidal™ (EOS) waveguide for improved high-frequency dispersion anywhere in the listening room.

Cellulose-fiber cones reinforced with a polymer-coating for uniform pistonic motion, no internal resonance and, tighter and more precise bass. Thin yet extremely rigid titanium laminate dome tweeters ensuring accurate, undistorted high-frequency response. Bass-reflex port offers tighter bass by extending deep bass response and eliminates unwanted turbulence. Available in a black or cherry finish with a black grille.

Features

  • 4-Way dual 200mm (8") floorstanding loudspeaker.
  • Elegant cabinet design with slender profile combining wood-like and textured high-quality vinyl.
  • Ultra-High-Frequency (UHF) drivers capable of 40kHz for higher highs.
  • Cellulose-fiber cones reinforced with a polymer-coating for uniform pistonic motion, no internal resonance and, tighter and more precise bass.
  • EOS waveguides evenly disperse high frequencies delivering more precise imaging over a wider listening area.
  • Thin yet extremely rigid titanium laminate dome tweeters ensuring accurate, undistorted high-frequency response.
  • Bass-reflex port offers tighter bass by extending deep bass response and eliminates unwanted turbulence.

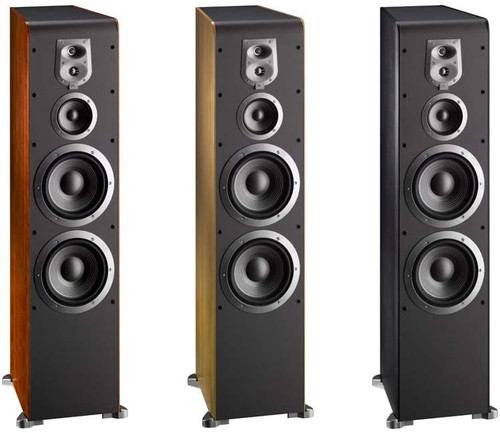

  • Available in a black or cherry finish with a black grille.

Specifications

Model ES90
Product Type Floorstanding Speaker
Maximum Recommended Amplifier Power 225W
Power Handling (Continuous/Peak) 110W/440W
Nominal Impedance 8 Ohms
Sensitivity (2.83V/1m) 91dB
Frequency Response (±3dB) 36Hz – 40kHz
Crossover Frequencies 500Hz – 24dB/Octave3000Hz – 24dB/Octave12,000Hz – 18dB/OctaveStraight-Line Signal Path™ (SSP)
Ultrahigh-Frequency Driver 3/4" (19mm) Polyester-film ring radiator mounted in JBL EOS waveguide, shielded
High-Frequency Transducer 3/4" (19mm) Titanium-laminate dome in EOS waveguide, shielded
Midrange Transducer 4" PolyPlas™, shielded
Low-Frequency Transducer Dual 8" (200mm) PolyPlas, shielded
Magnetically Shielded Yes
Terminals Gold-plated, 5-way binding posts
Finish Black
Weight per Speaker 53.4 lbs (24.2 kg)
Dimensions (H x W x D) 42-11/16" x 10-1/4" x 15-1/8" (1084mm x 260mm x 384mm)
