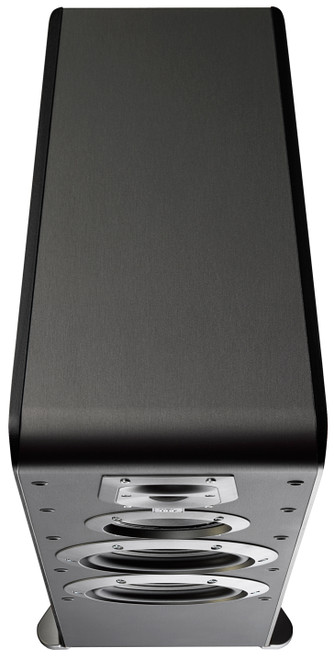

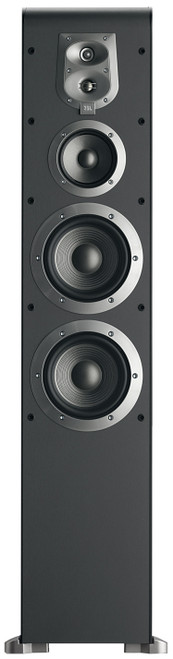

JBL ES80 4 Way Dual 6 inch Floorstanding Speaker

Home /
JBL ES80 4 Way Dual 6 inch Floorstanding Speaker (Discontinued)

Description

Details

With innovative technologies derived directly from JBL® Professional equipment, the JBL ES80 delivers powerful, accurate audio performance and brings legendary JBL sound from concert stages, recording studios and movie theaters home. You get 400 watts of peak power handling and hyper-realistic, deep bass – no unwanted distortion – from proprietary JBL dual 6-inch PolyPlas™ low-frequency transducers. A 4-inch midrange transducer is the heart and soul of great sound. UHF drivers are capable of 40kHz and produce high-end nuances – and EOS waveguides make any seat the best in the house.

Features

Features

Proprietary JBL® dual 6" PolyPlas™ low-frequency transducers
4" PolyPlas™ midrange driver
Elliptical Oblate Spheroidal™ (EOS) Waveguide
Dual 3/4" dome tweeters, pure titanium design
4-way speaker configuration
Straight-Line Signal Path™ (SSP)
Computer-optimized bass reflex port
Outstanding audio output
Accurate frequency response
Bi-wiring capabilities
Magnetically shielded
Bi-wiring capabilities
Magnetically shielded

Specification

Frequency Response (±3dB)	45Hz – 40kHz
Maximum Recommended Amplifier Power	200W
Power Handling (Continuous/Peak)	100W/400W
Sensitivity (2.83V/1m)	90dB
Nominal Impedance	8 Ohms
Crossover Frequencies	700Hz, 3600Hz – 24dB/octave 12000Hz – 18dB/octave
Low-Frequency Transducer	Dual 6" (160 mm) PolyPlas™, shielded
Midrange Transducer	4" (100 mm) PolyPlas™, shielded
High-Frequency Transducer	3/4" (19 mm) Titanium-laminate dome in EOS waveguide, shielded
Ultrahigh-Frequency Driver	3/4" (19 mm) Polyester-film ring radiator mounted in JBL EOS waveguide, shielded
Dimensions (H x W x D)	42.69" (1084 mm) x 8.75" (223 mm) x 13" (330 mm)
Weight	46.3 lbs (21 kg)
