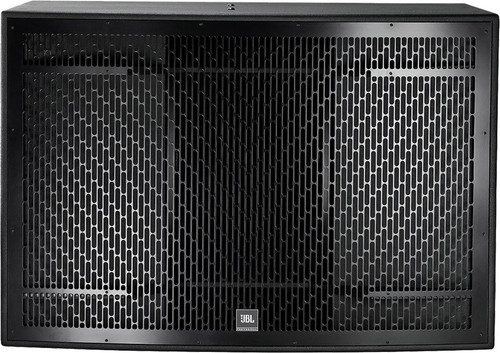

JBL MD7 Dual 18 Inch Subwoofer (Discontinued)
JBL MD7 Dual 18 Inch Subwoofer (Discontinued)
JBL MD7 Dual 18 Inch Subwoofer (Discontinued)
JBL MD7 Dual 18 Inch Subwoofer (Discontinued)
By JBL Professional

JBL MD7 Dual 18 Inch Subwoofer (Discontinued)

Write a Review
Part #:
MD7
Model #:
MD7
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market.

Description
The MD7, dual 18" subwoofer system is fitted with two JBL 2269H Differential Drive, Vented Gap Cooling capable of generating frequency response to 25 Hz in a sonically superior and visually imposing dance floor system. The MD7 is intended to be used in conjunction with the MD1 super tweeter, MD2 mid-high system, and MD3 low-frequency system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity and breathtaking purity.

Features
  • Dual JBL 2269H 4" dual voice coil dual magnetic gap Differential Drive® woofers with Vented Gap Cooling
  • 4000 watts continuous program power handling
  • Horn-loaded enclosure for low distortion
  • Ultra low-frequency response with true sub-bass extension

Specifications
Frequency Range (-10 dB) 22 - 240 Hz
Power Rating 4000W (16000W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
Frequency Response (± 3 dB) 25 - 120 Hz
Maximum SPL (1m) 135 dB-SPL cont. avg. (141 dB peak)
System Sensitivity 112 dB SPLk 2.83V (2W) @ 1m (3.3 ft)
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Low Frequency Driver 2 x 2269H, 460mm (18 in)(D), 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive, VGC drivers
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 18 points (5 top, 5 bottom, 4 each side) M10 threaded hardware
Finish Black DuraFlex™ finish
Grille Powder coated 14 gauge perforated steel
Dimensions (H x W x D) 30" (762 mm) x 44.2" (1121.7 mm) x 38" (965.7 mm)
Net Weight 238 lbs (108 kg)

Related Products

Sold Out
JBL MD1 Super Tweeter Loudspeaker (Discontinued)

JBL MD1 Super Tweeter Loudspeaker (Discontinued)

The MD1 is an ultra highfrequency module consisting of dual JBL Selenium ST400 Super Tweeters for superior highfrequency response and is intended to be used in conjunction with the MD2 midhigh...
$954.00

Usually arrives in 5-9 business days.

$954.00
Sold Out
JBL MD2 High Power Loudspeaker (Discontinued) JBL MD2 High Power Loudspeaker (Discontinued)

JBL MD2 High Power Loudspeaker (Discontinued)

The MD2 is a mid-high module utilizing two of JBL’s eight inch 2169H Differential Drive® transducers for mid-band reproduction and the 2453H-SL for high-frequencies, the MD2 handles frequencies from...
$4,794.00

Usually arrives in 5-9 business days.

$4,794.00
Sold Out

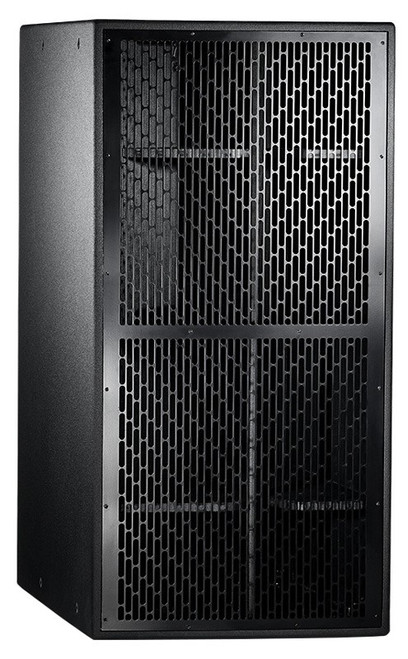

JBL MD3 Dual 15 Inch Loudspeaker (Discontinued) JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)

JBL MD3 Dual 15 Inch Loudspeaker (Discontinued)

The MD3 is a dual 15" lowfrequency system utilizing dual 2265H Differential Drive transducers in a horn-loaded enclosure providing high-output frequency response from 300 Hz down to 80 Hz. The MD3...
$6,114.00

Usually arrives in 5-9 business days.

$6,114.00
Sold Out
JBL MD46 High Power 15 Inch Loudspeaker (Discontinued) JBL MD46 High Power 15 Inch Loudspeaker (Discontinued)

JBL MD46 High Power 15 Inch Loudspeaker (Discontinued)

The MD46 is a high-power 60° x 40° dual 15" low-frequency system utilizing dual 2265H Differential Drive transducers, CMCD82H 8" mid-range driver, 2432H 3" diaphragm compression driver, and dual...
$6,954.00

Usually arrives in 5-9 business days.

$6,954.00
Sold Out

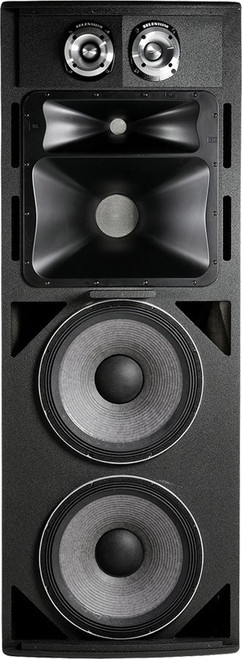

JBL MD49 High Power 15 Inch Loudspeaker (Discontinued) JBL MD49 High Power 15 Inch Loudspeaker (Discontinued)
