JBL PRX715 15 Inch 2 Way Powered Multi-Purpose Loudspeaker (Discontinued)
Part # PRX715
Model # PRX715

The JBL PRX715 15" 2-Way Powered Multi-Purpose Loudspeaker is the most recognizable form of portable PA loudspeakers and offers the perfect balance between size and performance.


Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The 2-way 15" offers the perfect balance between size and performance. The PRX715 truly is an exception; it’s small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX700 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX715 delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX700 sub-woofer the system becomes an efficient, full-range sound system.

The PRX715 is comprised of 15" 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

The PRX715 is the next step in the highly successful PRX Series and introduces the first use of JBL’s patented Differential Drive® Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling.
Features

Features

  • 136 dB peak SPL
  • 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
  • 1.5" diameter next generation JBL neodymium compression driver
  • JBL designed waveguide for accurate coverage
  • Efficient Class-D amplifier technology
  • Optimized EQ for monitor or front-of-house applications
  • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • Line level and direct microphone input capability
  • Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through

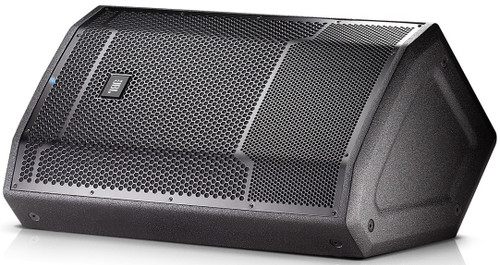

  • Multi-angle enclosure for main PA or floor monitor applications
  • Integrated 36 mm pole mount socket with angle down tilt
  • Injection molded handle with backing cup for easy transport
  • Integrated M10 suspension points for easy setup
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish
  • Cloth backed, dent-resistant 16 gauge steel grilles
Specification
Power Rating1500 W
Frequency Range (-10 dB)Main: 42.9 Hz - 19.5 kHz
Monitor: 43.6 Hz - 19.3 kHz
Frequency Response (±3 dB)Main: 58.1 Hz - 17.2 kHz
Monitor: 60.7 Hz - 16.7 kHz
Coverage Pattern90° x 50° nominal
Directivity Index (DI)10.2 dB
Directivity Factor (Q)10.4
Crossover Frequency1.7 kHz
Maximum SPLNormal: 136 dBBoost: 136 dB
Dynamic Control (Input)dbx Type IV™ limiter circuit
Input Impedance20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver1 x JBL 275G (15 in) woofer
HF Driver1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
EnclosureAsymmetrical, 18 mm, plywood
Suspension / MountingDual 36 mm pole socket, 12 x M10 Suspension Points
Transport1 x injection molded handles with backing cup
FinishObsidian DuraFlex™ finish
GrillePowder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing
Input Connectors2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connectors1 male XLR balanced output
Dimensions (H x W x D)28.13" (714.43 mm) x 17.52" (445.13 mm) x 14.12" (358.71 mm)
Net Weight47.5 lbs (21.6 kg)
