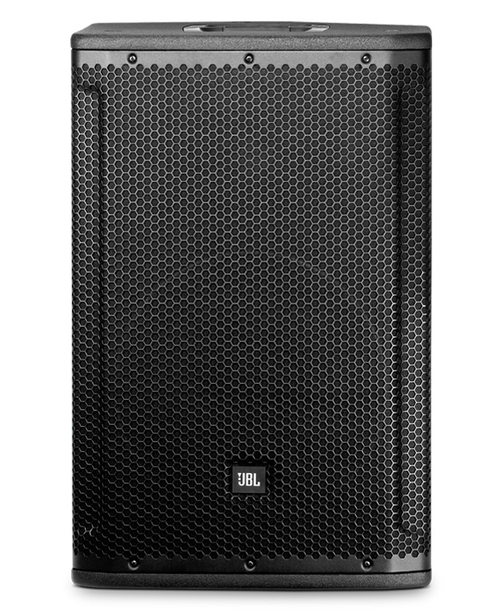

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 12" two-way, SRX812P features legendary JBL Drivers, proprietary 2000W Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.
| System | |
|---|---|
| System Type | Self powered 12", two-way, bass-reflex |
| Maximum SPL Output | 136 dB |
| Frequency Range (-10 dB) | 40Hz – 21kHz |
| Frequency Response (-3 dB) | 48Hz – 20kHz |
| Amplifier | |
| System Power Rating | 2000W Peak, 1500W Continuous |
| Input Impedance | 40k balanced, 20k unbalanced |
| Line Input Gain | 21 dB |
| Consumer Input Gain | 33 dB |
| Mic Input Gain | 45 dB |
| Maximum Input Level | Line: 20dBu Consumer: 8dBu Mic: -4dBu |
| Connectors | Neutrik 1/4 - XLR input Neutrik XLR Output |
| LED Indicators | Power LED (Green) Network Link (Green) Network Data (Yellow) |
| Cooling | On-Demand variable speed fan |
| AC Power Input | 100V - 240V~ 50/60 Hz |
| AC Power Consumption (120V~) | 2.2A (1/8 Power), 5.6A (1/3 Power) |
| Speaker | |

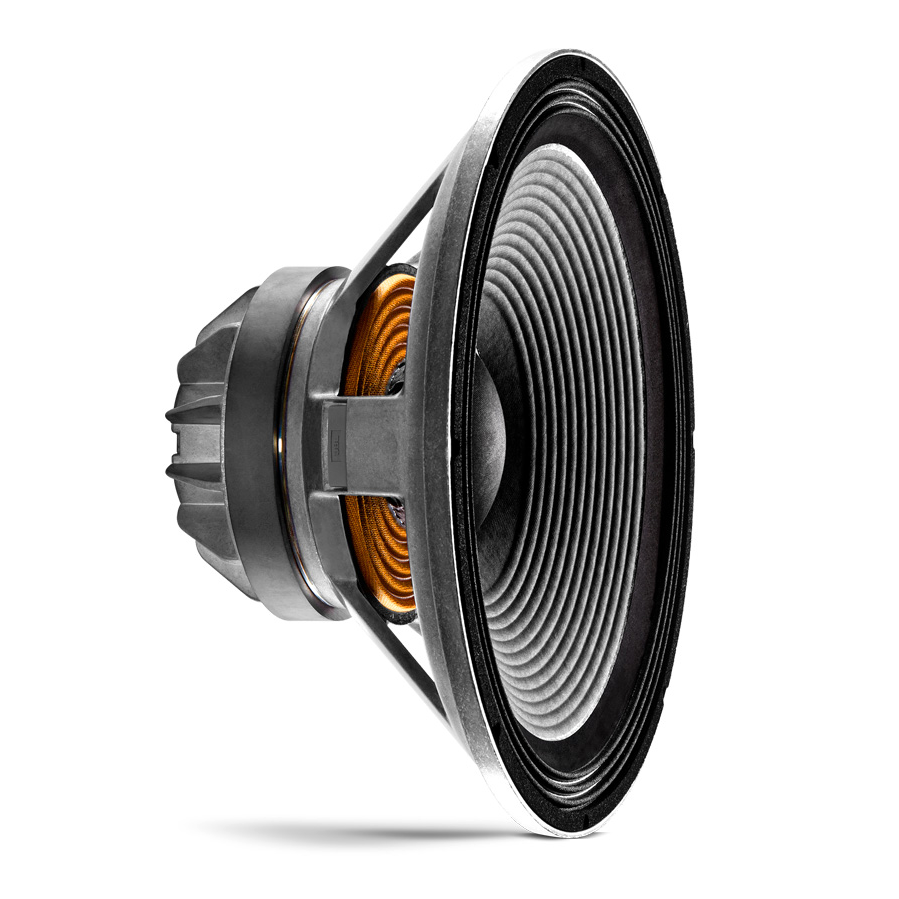

| LF Driver | 2272H |
| HF Driver | 2432H |
| Coverage Pattern | 90° x 50° |
| Crossover Frequency | 1.9kHz |
| Enclosure | |
| Material | 18 mm plywood |

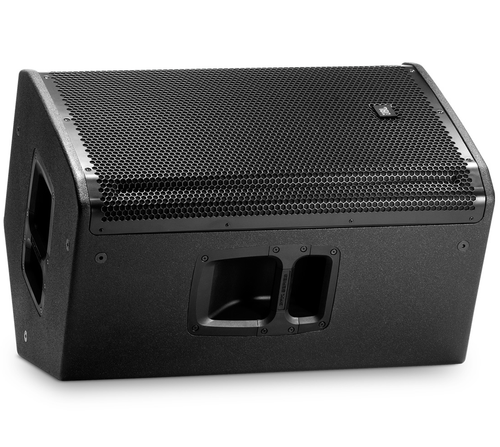

| Monitor Angle | Yes |
| Suspension/Mounting | Dual 36 mm pole socket, 12 x M10 Suspension points |

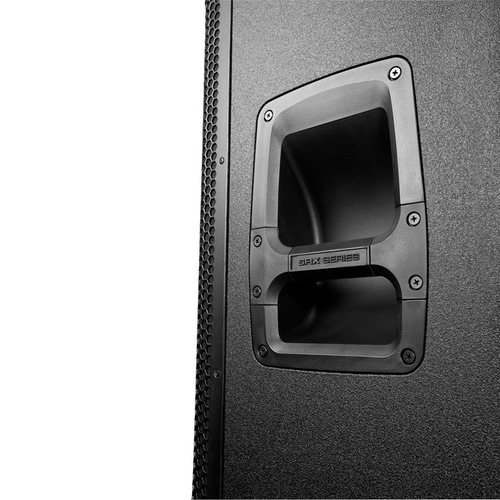

| Handles | 3 |
| Finish | Obsidian Duraflex™ finish |
| Grille | Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) | 25.11" (638 mm) x 16.31" (415 mm) x 16.87" (429 mm) |
| Weight | 58 lbs (26.4 kg) |
