The JBL SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill.

Description

The SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

Features
  • Premium JBL Transducers
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 57Hz-20kHz
  • Max SPL: 135dB
  • Coverage Pattern: 90° x 50°
  • Amplification options: Passive/Bi-Amp

Specifications
System
System Type Passive 12”, two-way, bass-reflex
Maximum SPL Output 135 dB
Frequency Range (-10 dB) 41Hz – 20kHz
Frequency Response (-3 dB) 57Hz – 20kHz
Power
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm

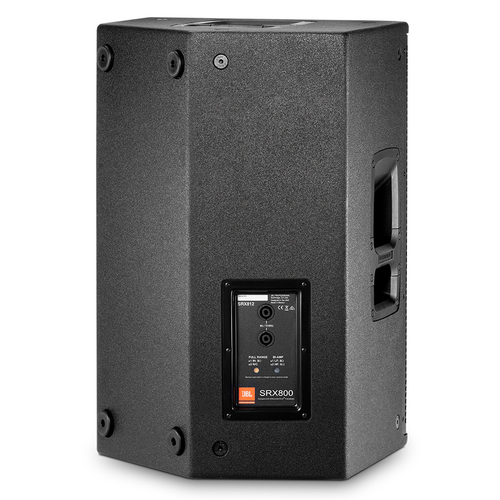

Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
Speaker

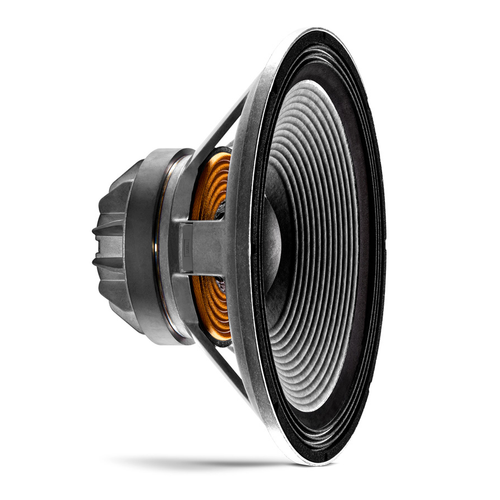

LF Driver 2272H
HF Driver 2432H
Coverage Pattern 90° x 50°
Crossover Frequency 1.9kHz
Enclosure
Material 18 mm plywood

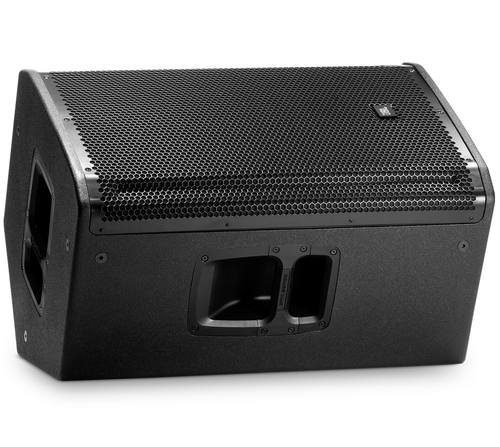

Monitor Angle 50°
Suspension/Mounting Dual 36 mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 25.11" (638 mm) x 16.31" (415 mm) x 16.87" (429 mm)
Weight 55 lbs (29.3 kg)

DOCUMENTS

Related Products

Sold Out
JBL SRX812P 2-Way 12" Bass Reflex Self-Powered System (Discontinued) JBL SRX812P 2-Way 12" Bass Reflex Self-Powered System (Discontinued)

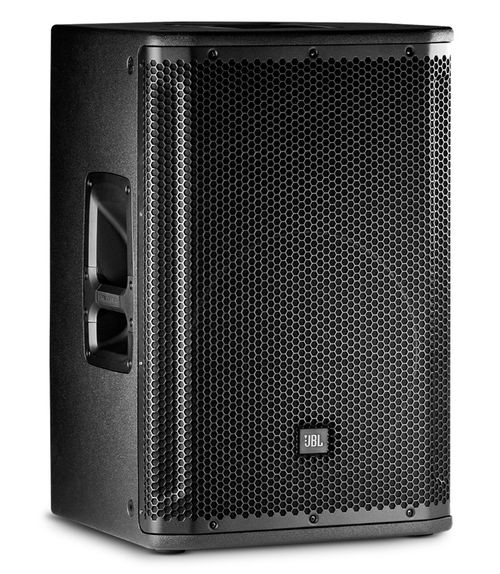

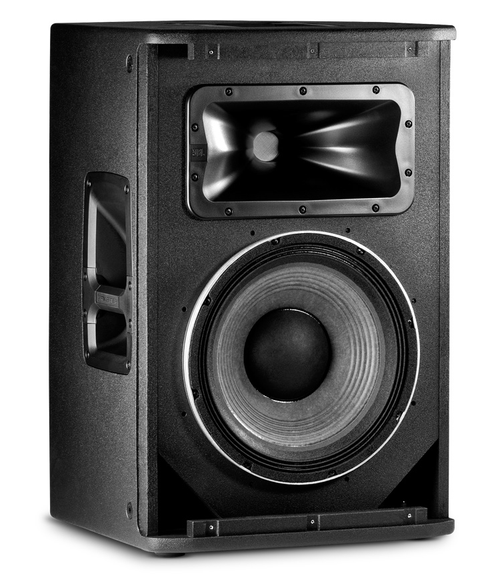

JBL SRX812P 2-Way 12" Bass Reflex Self-Powered System (Discontinued)

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to...
MSRP: $2,150.00
$1,720.00

Usually arrives in 5-9 business days.

MSRP: $2,150.00
$1,720.00
JBL SRX815 2-Way 15" Bass Reflex Passive System JBL SRX815 2-Way 15" Bass Reflex Passive System

JBL SRX815 2-Way 15" Bass Reflex Passive System

The SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor...
MSRP: $1,855.00
$1,489.00

Usually arrives in 5-9 business days.

MSRP: $1,855.00
$1,489.00
Add to Cart The item has been added
Sold Out
JBL SRX815P 2-Way 15" Bass Reflex Self-Powered System (Discontinued) JBL SRX815P 2-Way 15" Bass Reflex Self-Powered System (Discontinued)

JBL SRX815P 2-Way 15" Bass Reflex Self-Powered System (Discontinued)

JBL SRX815P 2-Way 15" Bass Reflex Self-Powered Speaker The SRX800 Series is the next generation high-performance powered loudspeaker system comprising three full range and two subwoofer models with...
MSRP: $2,323.75
$1,859.00

Usually arrives in 5-9 business days.

MSRP: $2,323.75
$1,859.00
JBL SRX818S 18" Passive Subwoofer System JBL SRX818S 18" Passive Subwoofer System

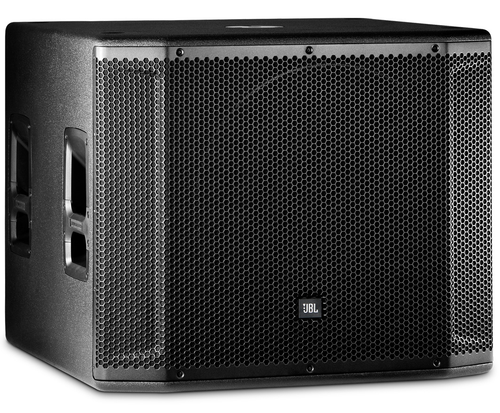

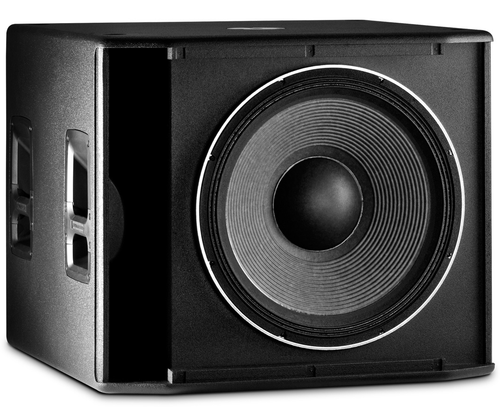

JBL SRX818S 18" Passive Subwoofer System

The SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid...
MSRP: $2,110.00
$1,689.00

Usually arrives in 5-9 business days.

MSRP: $2,110.00
$1,689.00
Add to Cart The item has been added
Sold Out
JBL SRX818SP 18" Self-Powered Subwoofer System (Discontinued) JBL SRX818SP 18" Self-Powered Subwoofer System (Discontinued)

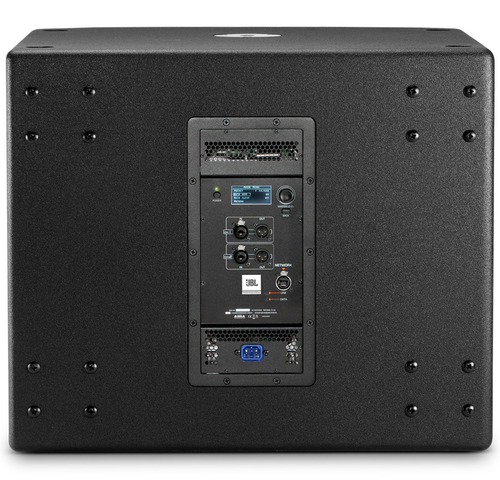

JBL SRX818SP 18" Self-Powered Subwoofer System (Discontinued)
