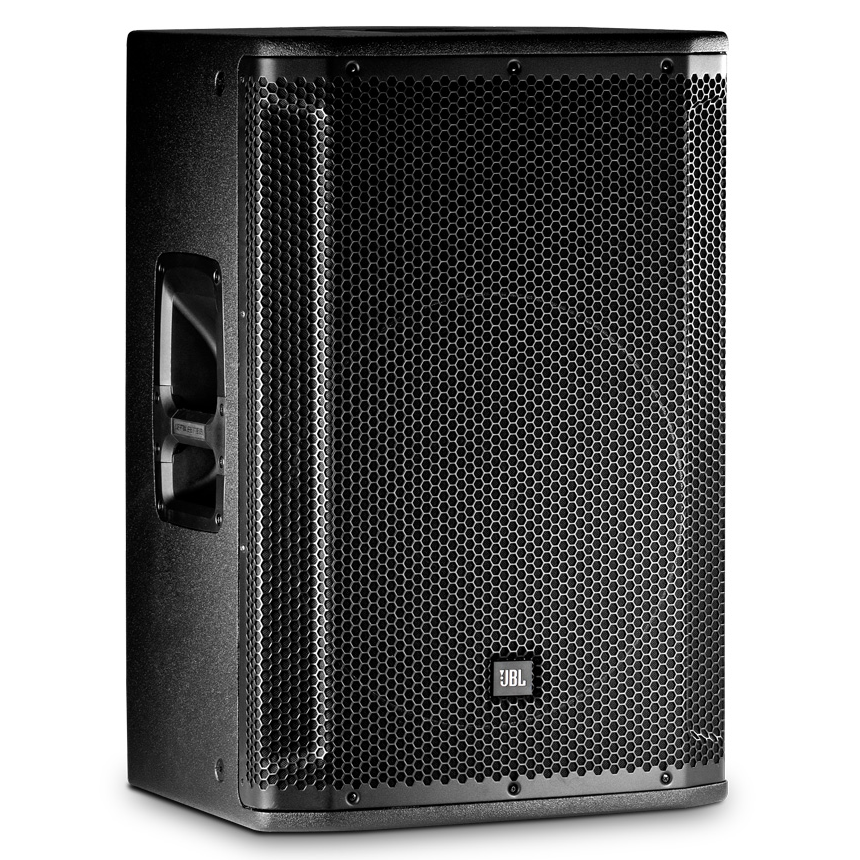

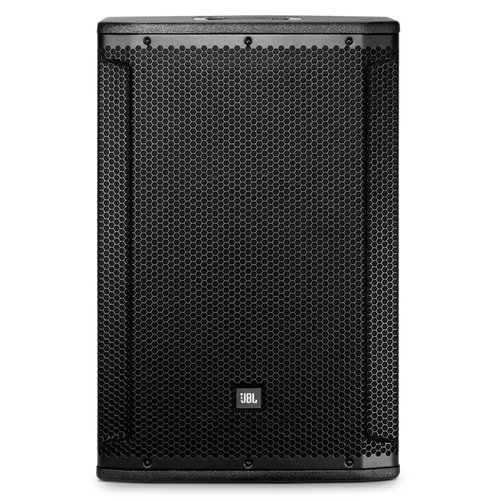

The SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
| System | |
|---|---|
| System Type | Passive 15”, two-way, bass-reflex |
| Maximum SPL Output | 136 dB |
| Frequency Range (-10 dB) | 41Hz – 20kHz |
| Frequency Response (-3 dB) | 56Hz – 20kHz |
| Power | |
| System Power Rating | 3200W Peak, 1600W Program, 800W Continuous |
| Nominal Impedance | 8 Ohm |

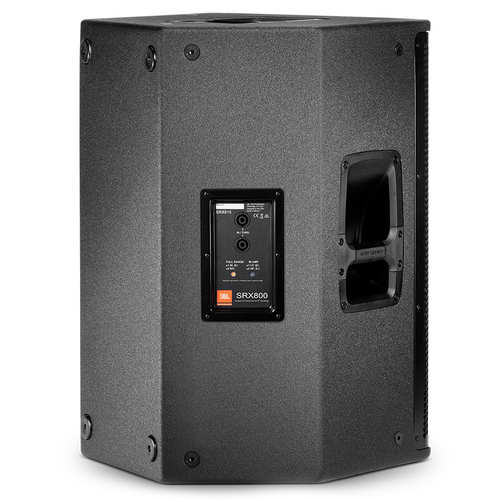

| Connectors | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) |
| Operational Modes | Passive/Bi-Amp |
| Speaker | |

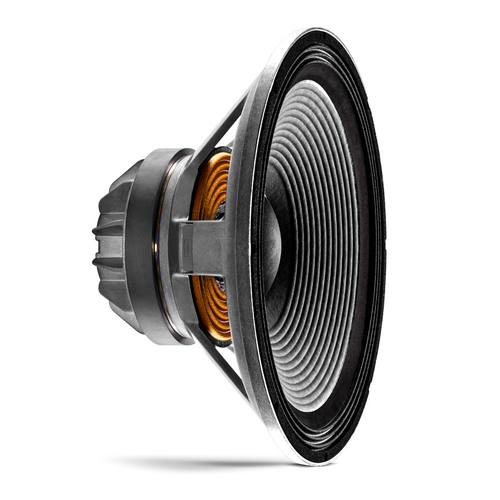

| LF Driver | 2275H |
| HF Driver | 2432H |
| Coverage Pattern | 90° x 50° |
| Crossover Frequency | 1.9kHz |
| Enclosure | |
| Material | 18 mm plywood |

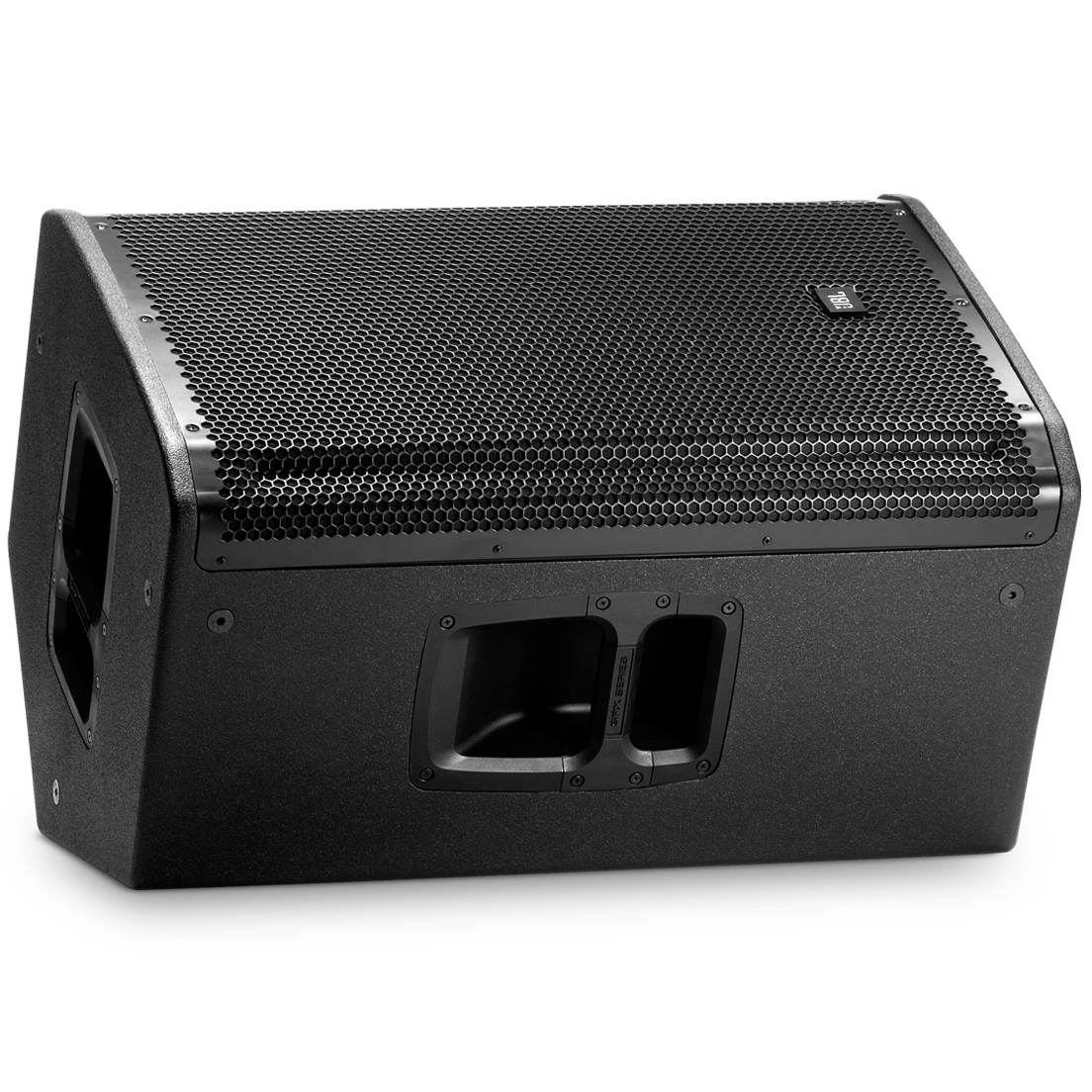

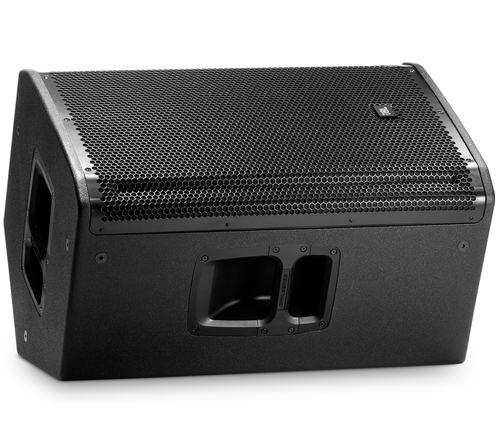

| Monitor Angle | 50° |
| Suspension/Mounting | Dual 36 mm pole socket, 12 x M10 Suspension points |

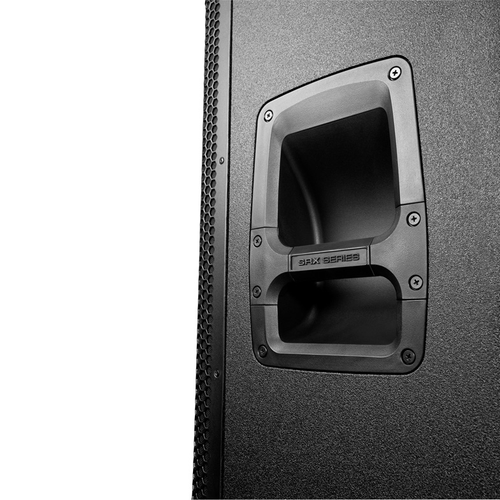

| Handles | 3 |
| Finish | Obsidian Duraflex™ finish |
| Grille | Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) | 27.20” (691 mm) x 18.03” (458 mm) x 18.82” (478 mm) |
| Weight | 67 lbs (30.4 kg) |
