The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The 18", SRX818SP subwoofer features legendary JBL Drivers, proprietary 1000 W Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-confi gurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of confi gurability, and compatibility with JBL’s flagship touring systems.
| System | |
|---|---|
| System Type | Self powered 18”, subwoofer system |
| Maximum SPL Output | 135 dB |
| Frequency Range (-10 dB) | 29Hz – 150Hz |
| Frequency Response (-3 dB) | 35Hz – 120Hz |
| Amplifier | |
| System Power Rating | 1000W Peak, 750W Continuous |
| Input Impedance | 40k balanced, 20k unbalanced |
| Line Input Gain | 21 dB |
| Maximum Input Level Line | 20dBu |
| Connectors | Neutrik 1/4 - XLR input Neutrik XLR Output |
| LED Indicators | Power LED (Green), Network Link (Green), Network Data (Yellow) |
| Cooling | On-Demand variable speed fan |
| AC Power Input | 100V - 240V~ 50/60 Hz |
| AC Power Consumption (120V~) | 2.2A (1/8 Power), 5.6A (1/3 Power) |
| Speaker | |

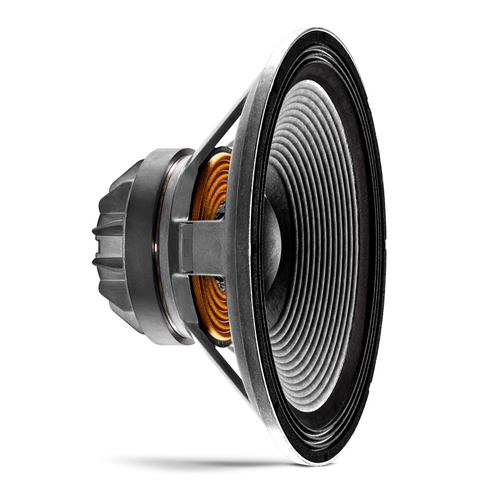

| LF Driver | 2279H |
| Crossover Frequency | 80Hz |
| Enclosure | |
| Material | 18 mm plywood |
| Suspension/Mounting | M20 Threaded Pole Mount |
| Handles | 4 |
| Finish | Obsidian Duraflex™ finish |
| Grille | Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) | 22.62" (575 mm) x 26.92" (684 mm) x 26.89" (683 mm) |
| Weight | 103 lbs (46.8 kg) |
