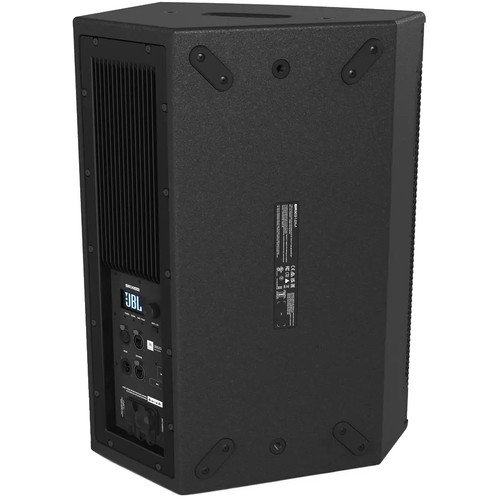

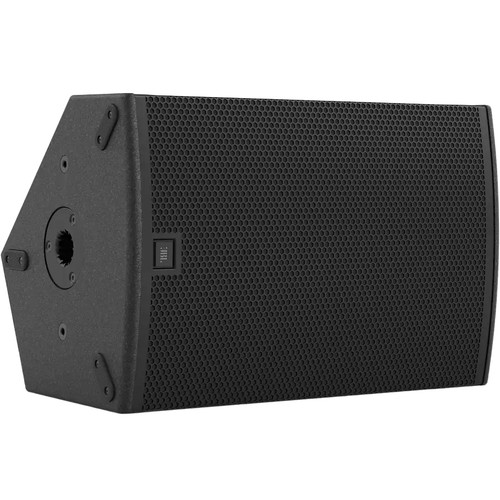

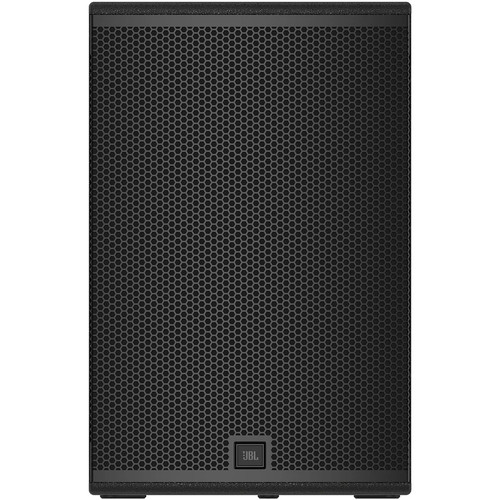

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package.
Multiple M10 QuickLink suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.
JBL transducers and proprietary Progressive Transition waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.
| Frequency Range (-10 dB) | 50 Hz -20 kHz |
|---|---|
| Coverage Pattern | 90° x 60° |
| Maximum SPL | 133 dB |
| System Type | Multi-purpose point-source, two-way powered |
| Amplifier Design | Class-D |
| Continuous Power Rating | 600 Watts | LF: 400 Watts | HF: 200 Watts |
| LF Driver | (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive |
| HF Driver | (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil |
| Enclosure | Exterior grade birch plywood, DuraFlex finish, one integral handhold |
| Suspension | (6) JBL QuickLink M10 points |
| Dimensions (H x W x D) | 23" (585 mm) x 15" (380 mm) x 13.4" (341 mm) |
| Weight | 45 lbs (20.6 kg) |
