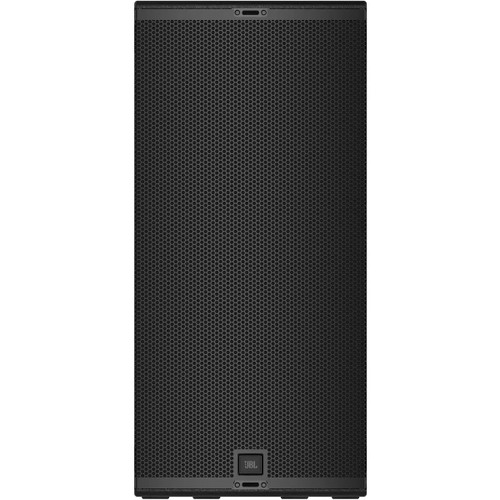

The SRX922 dual 12" 3-way powered point source loudspeaker is a high-performance powered loudspeaker engineered for professional touring, live sound reinforcement, and installed audio applications requiring exceptional output, clarity, and precise directivity control. Designed as an acoustically three-way system, the SRX922 combines dual 12-inch low-frequency woofers, a horn-loaded mid-frequency driver, and a 1.5-inch annular-diaphragm compression driver to deliver powerful full-range sound with outstanding intelligibility and headroom.
Its innovative acoustic design provides significantly higher low-frequency output and improved vertical directivity control compared to traditional single-woofer systems. Dual 90° x 60° Progressive Transition waveguides ensure smooth, predictable coverage across large listening areas, while the horn-loaded midrange section enhances overall efficiency and clarity. Four large flared ports extend low-frequency response down to 40 Hz, making the SRX922 ideal for high-output mains systems, side-fill applications, and large-scale SRX900 deployments.

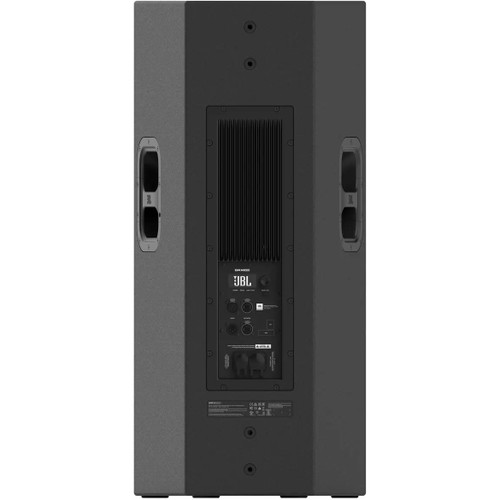

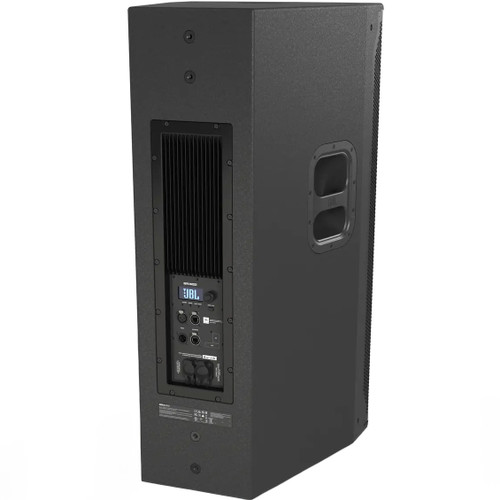

Integrated Class-D amplification and advanced onboard DSP provide optimized plug-and-play performance anywhere in the world. The rear LCD interface allows fast configuration, while the DSP includes 24 user-adjustable filters, a 2,000 ms delay, and comprehensive loudspeaker management tools. Built from durable outdoor-grade Baltic birch plywood, the SRX922 is designed for demanding touring and installation environments, with eight M10 QuickLink suspension points supporting flexible rigging and deployment options for professional sound reinforcement systems.
| Frequency Range (-10 dB) | 40 Hz - 17.5 kHz |
|---|---|
| Coverage Pattern | 90° x 60° |
| Maximum SPL | 138 dB |
| System Type | Point-source, acoustically three-way, bi-amplified, powered |
| Amplifier Design | Class-D |
| Continuous Power Rating | 1100 Watts | LF: 550 Watts | MHF: 550 Watts |
| LF Driver | (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive |
| MF Driver | (1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite |
| HF Driver | (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil |
| Enclosure | Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles |
| Suspension | (8) JBL QuickLink M10 points |
| Dimensions (H x W x D) | 37.2" (944 mm) x 17.3" (440 mm) x 19.9" (505 mm) |
| Weight | 100 lbs (45.5 kg) |
