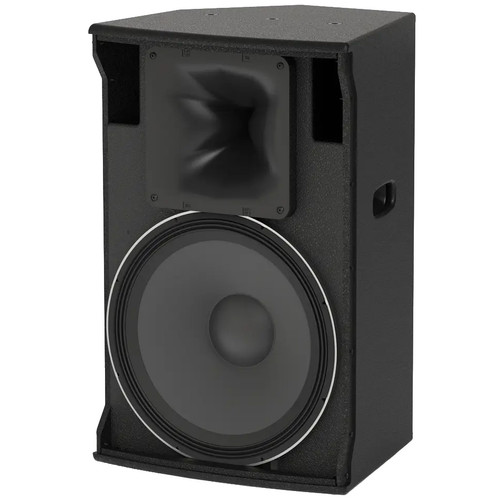

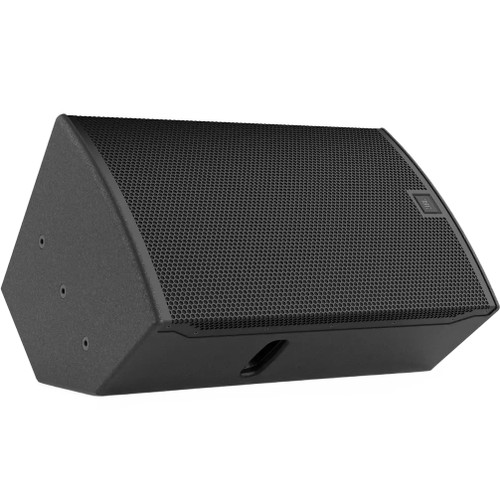

The SRX915M is a high-output, multi-purpose, two-way 15-inch powered point-source loudspeaker designed for applications that require greater low-frequency extension and increased headroom. It is ideally suited for use as a main PA or as a high-performance stage monitor. When deployed as a monitor, the enclosure's multi-purpose design provides a 45-degree monitor angle in a low-profile package.
Multiple M10 QuickLink suspension points support quick and secure integration with a variety of dedicated accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.
JBL transducers and proprietary Progressive Transition waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.
| Frequency Range (-10 dB) | 50 Hz -20 kHz |
|---|---|
| Coverage Pattern | 90° x 60° |
| Maximum SPL | 134 dB |
| System Type | Multi-purpose point-source, two-way powered |
| Amplifier Design | Class-D |
| Continuous Power Rating | 600 Watts | LF: 400 Watts | HF: 200 Watts |
| LF Driver | (1) JBL 275F, 15 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive |
| HF Driver | (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil |
| Enclosure | Exterior grade birch plywood, DuraFlexTM finish, two integral handholds |
| Suspension | (7) JBL QuickLink M10 points |
| Dimensions (H x W x D) | 26.2" (666 mm) x 16.9" (428 mm) x 14.5" (367 mm) |
| Weight | 55 lbs (24.7 kg) |
