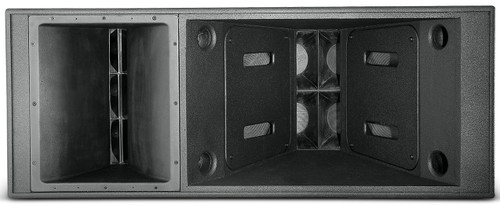

JBL VLA601 15 Inch 3 Way Full-Range Loudspeaker

The JBL VLA601 offers 60° of horizontal coverage, the vertical coverage will vary with the array size and configurations.



Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs. The modular design concept  provides the system designer the ability to build large line array systems for larger venue applications or to design smaller line array systems for use as distributed clusters in arenas, domed stadiums and larger performance spaces, including large housesof- worship.

VLA is designed specifically for permanent installation applications where even coverage, intelligibility, and levels capable of overcoming crowd noise are required. VLA modules are based on the same advanced engineering used in the highly successful VERTEC® Series line array systems.

VLA goes one step further than VERTEC by providing six large format horn-loaded modules with three horizontal horn coverage patterns (30°, 60°, & 90°). This modular concept provides the designer the additional flexibility to vary the horizontal pattern within a vertical array by incorporating different modules with wider or narrower coverage patterns while still maintaining the vertical directivity.

The VLA Series uses JBL proven technology components. The mid and high frequency sections are horn-loaded for maximum sensitivity and optimum pattern control. The midrange section features the patented technology of the CMCD82H 200 mm (8 in) cone midrange compression driver with dual 75 mm (3 in) voice coils coupled to a driver/phasing plug assembly providing high output with low distortion. The high-  requency section features the 2431H 38 mm (1.5 in) throat diameter 75 mm (3 in) aluminum diaphragm, neodymium high-frequency drivers.
