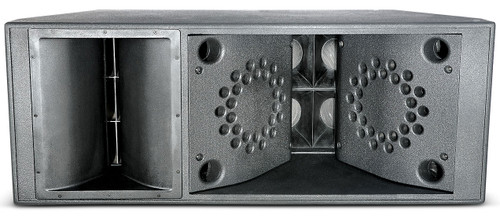

JBL VLA901 15 Inch 3 Way Full-Range Loudspeaker

JBL VLA901 15 Inch 3 Way Full-Range Loudspeaker

Name: JBL VLA901 15 Inch 3 Way Full-Range Loudspeaker
Brand: JBL Professional
SKU: JBL-VLA901
Price: 10420 USD
Availability: InStock

Write a Review

Part #:

JBL-P3183MX

Model #:

VLA901I

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The JBL VLA901 from the Variable Line Array Series is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.

Description

The JBL VLA901 offers 90° of horizontal coverage, the vertical coverage will vary with the array size and configurations.

Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs. The modular design concept provides the system designer the ability to build large line array systems for larger venue applications or to design smaller line array systems for use as distributed clusters in arenas, domed stadiums and larger performance spaces, including large houses of worship.

VLA is designed specifically for permanent installation applications where even coverage, intelligibility, and levels capable of overcoming crowd noise are required.

VLA modules are based on the same advanced engineering used in the highly successful VERTEC® Series line array systems.

Features

Line array module optimized for permanent install applications
Standard version featuring 3 HF drivers, 2 MF drivers, & 2 LF drivers
Rugged DuraFlex™ xterior finish and weatherized components. JBL’s WRC or WRX weather protections also available

Specifications

Frequency Range (-10 dB)	42 Hz - 15 kHz
Frequency Response (+/-3 dB)	58 Hz - 12 kHz
Horizontal Coverage	90°
Vertical Coverage	Varies with array size and configuration
Directivity Factor (Q)	16
Directivity Index (DI)	12 dB
System Power Ratings (AES)	LF: 1600W (6400W peak), 2 hrs 1200W (4800W peak), 100 hrs
Maximum SPL	LF: 131 dB SPL continuous average MF: 134 dB SPL continuous average HF: 139 dB SPL continuous average
Low-Frequency Driver	2 x 2226H 380 mm (15 in) driver with 100 mm (4 in) voice coil
Nominal Impedance	4 ohms
Sensitivity (1 w @ 1 m)	99 dB SPL
Mid-Frequency Driver	2 x CMCD82H 200 mm (8 in) cone midrange compression driver withdual 75 mm (3 in) voice coil
Nominal Impedance	4 ohms
Sensitivity (1 w @ 1 m)	106 dB SPL
High-Frequency Driver	3 x 2431H 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Nominal Impedance	16 ohms
Sensitivity (1 w @ 1 m)	115 dB SPL
Enclosure	16 mm (5/8) exterior grade 12-ply birch plywood
Suspension Attachments	16 points (4 each top bottom & rear, 2 each side), M10 threadedhardware (eyebolts NOT included)
Finish	Black DuraFlex finish. White (-WH) available upon request. WRC &WRX available upon request
Environmental Specifications	Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX
Dimensions (H x W x D)	21" (533 mm) x 53.2" (1351 mm) x 25.2" (640 mm)
Weight	211 lbs (96 kg)
