- Description
Details
Designed for the widest range of scenarios, Line 6 Smart Speaker modes allow you to configure the subwoofer output to deliver the perfect low-end performance at the touch of a button. Whether you need a huge punchy kick and bass for a live rhythm section, or deep sub-bass lows for use in a DJ rig, Smart Speaker modes make setup simple and deliver stunning sound in every application.
In live sound situations where two or more speakers are needed, StageSource products use a proprietary digital networking protocol called L6 LINK™ to simplify setup. Loudspeakers will automatically self-configure, pan stereo signals, adjust Smart Speaker modes and perform system-wide optimization. Add StageSource L3s subwoofers to the mix and the system automatically sends them the summed signals and sets the crossovers. When combined, Line 6 live sound products form an intelligent ecosystem that sets up faster and helps you sound your best.
StageSource L3s features four user-selectable crossover frequency settings: 80 Hz, 100 Hz, 120 Hz and Off. This allows you to simply choose the low-pass frequency of the signals played back by the 12-inch woofers. Selecting a crossover frequency simultaneously selects the high-pass frequencies sent to the stereo outputs.

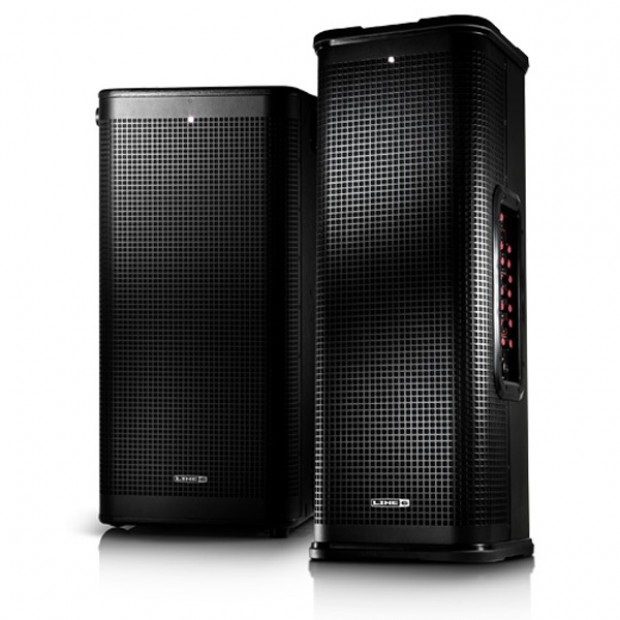

Multi-function design combined with powerful Smart Speaker modes and digital networking provides true scalability whether you’re using a single L3t as a standalone PA or multiple L3t speakers for use as mains, monitors and backline. Add StageSource L3s subwoofers and customize a configuration to meet your live sound or installation needs.
- Features
Features
- 1,200‐watt bi‐amped, subwoofer
- Precision 2 x 12" bass‐reflex design
- Smart Speaker Modes for great live sound in any live sound situation
- L6 LINK™ digital networking for multi‐speaker setups
- Three threaded pole‐mounts for maximum flexibility
- Dual‐braced tour‐grade plywood construction
- Multi‐function design for true scalability
- Multiple handling points
- Tilt‐and‐go Portability
- Digital networking with StageScape M20d for the ultimate dream stage
- Specification
Acoustical System Type Dual 12" bi‐amplified subwoofer Frequency Range (‐10 dB) 34 Hz to 2.8 kHz (P.A./Reference Speaker Mode, half space) Frequency Response (±3 dB) 38 Hz to 910 Hz (P.A./Reference Speaker Mode, half space) Low‐Pass Frequencies 80 Hz, 100 Hz, 120 Hz, Off (user‐selectable) Low Frequency Transducers 2x 12" woofer, 3" diameter voice coil, 4Ω impedance Electrical – Rear Panel Input Types Stereo Line‐level XLR‐1/4", balanced Input Impedance 100 kΩ balanced Max Input Levels +20 dBu Onset of Limiting +11 dBu input, 1 dBu input Output Types Stereo Line‐level XLR‐1/4", balanced Output Impedances 680 Ω balanced Output High‐Pass Frequencies 80 Hz, 100 Hz, 120 Hz, Off (user‐selectable) Controls Master Level, Speaker Mode, Crossover Frequency, Polarity Indicators Signal Present/Clip, Limit, Polarity Inversion, 4x Crossover Frequency,4x Speaker Mode, L6 LINK Digital Signal Processing Speaker Modes P.A./Reference, P.A./High Punch, Playback/Extended Bass, Playback/Ultra Bass Transducer Protection Excursion limiting, thermal limiting Digital Networking L6 LINK Intelligent Speaker Networking System Sensors Power amp temperature, power supply temperature Power Amplification and Supply LF1, LF2 Output Channel Power Amplifier Type Class D Peak Output Power 622 Watts Power Supply Voltage Range 100 ‐ 240 VAC, ± 10%, 50/60 Hz , automatic voltage selection Power Consumption 250 watts (1/8th power) Cooling Digitally‐controlled, variable speed 50 mm fan Protection Output over current, over temperature, DC fault Mechanical Enclosure 18 mm multi‐ply hardwood, textured black paint, bass reflex design Grille 18 gauge perforated steel, black powder coat finish Pole Mount Plates M20 x 2.5 thread, qty: 3 Dimensions (H x W x D) 34.125" (867 mm) x 16.5" (419 mm) x 23.25" (591 mm) Weight 82.5 lbs (37.5 kg) - Reviews
